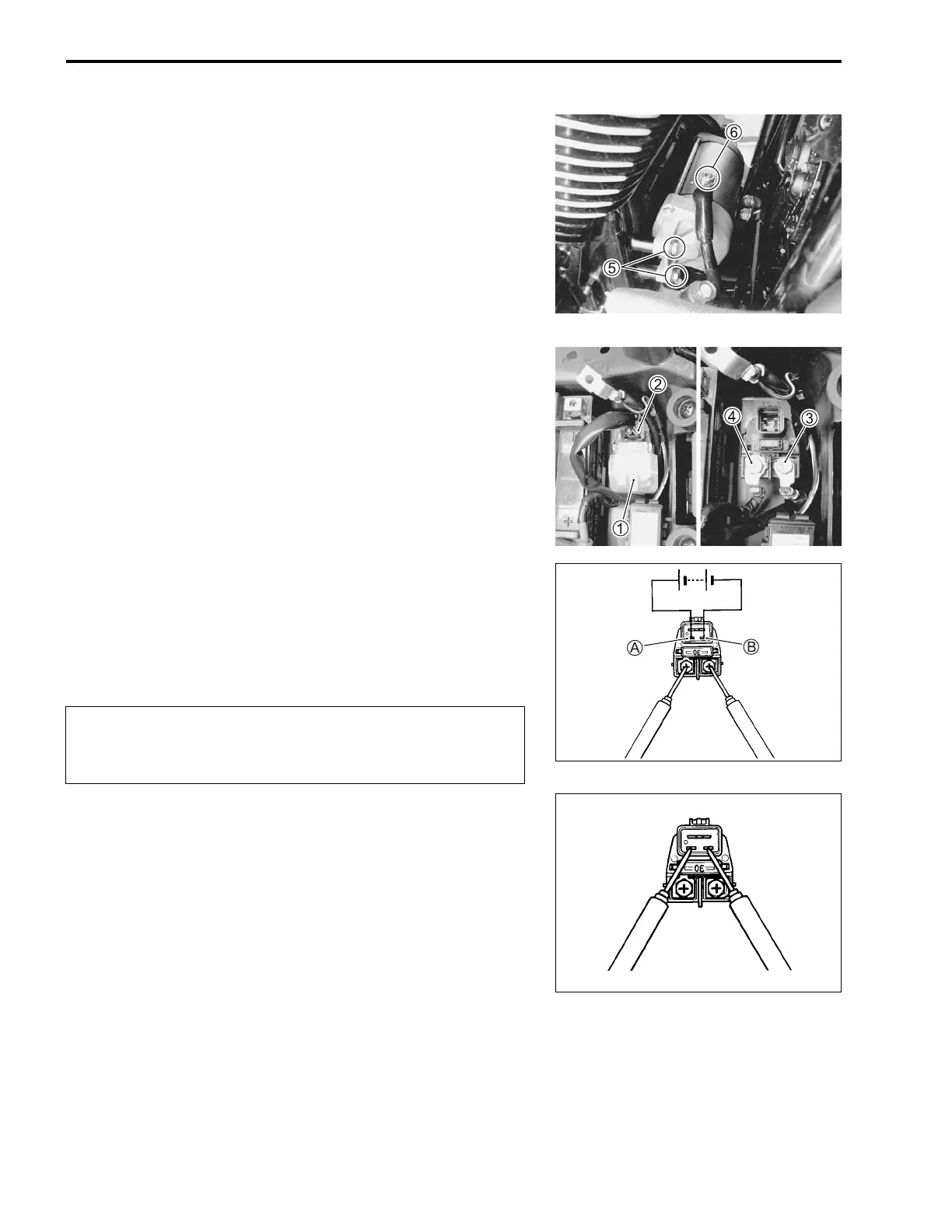

10-18 ELECTRICAL SYSTEM
• Tighten the starter motor mounting lead wire bolts 5 and nut
6 to the specified torque.
, Starter motor mounting bolt: 6 N·m (0.6 kgf-m, 4.5 lb-ft)
Starter motor lead wire nut: 6 N·m (0.6 kgf-m, 4.5 lb-ft)
STARTER RELAY INSPECTION
• Remove the front seat. (!9-4)
• Remove the battery cover.
• Disconnect the battery - lead wire from the battery.
• Remove the starter relay cover 1.
• Disconnect the starter relay coupler 2 , starter motor lead
wire 3 and battery lead wire 4.
• Remove the starter relay.
• Apply 12 V to A and B terminals and check for continuity
between the positive and negative terminals using the
multi-circuit tester. If the starter relay clicks and continuity is
found, the relay is ok.
" 09900-25008: Multi-circuit tester set
- Tester knob indication: Continuity test (.)
#
Measure the relay coil resistance between the terminals using
the multi-circuit tester. If the resistance is not within the specified
value, replace the starter relay with a new one.
" 09900-25008: Multi-circuit tester set
$ Starter relay resistance: 3 – 6 Ω
Do not apply battery voltage to the starter relay for
more than five seconds, since the relay coil may over-
heat and get damaged.

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
