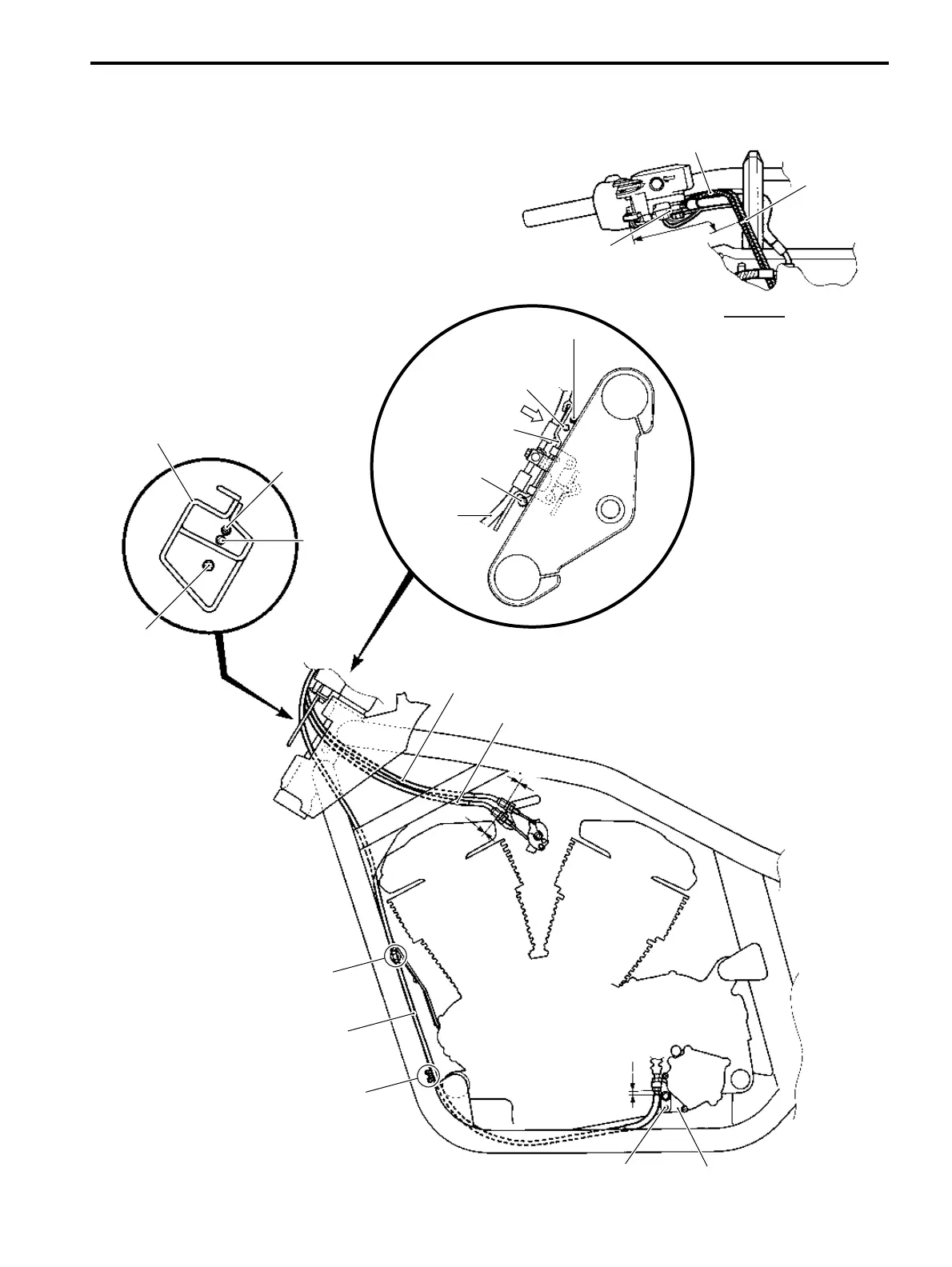

CABLE ROUTING
Pass the throttle cables behind
the right handlebar switch and
brake switch lead wires.
Pass the throttle cables between
the handlebars and brake hose.
VIEW A
Throttle cable No.2
(returning cable)
Brake hose
Throttle cable No.1
(pulling cable)
Throttle cable
No.2
(returning cable)
Cable guide
Cable guide
Clutch cable
Clutch cable
Throttle cable No.1 (pulling cable)
Throttle cable No.2 (returning cable)
Throttle cable No.1
(pulling cable)
0 mm
0 mm
Pass the clutch cable
inside of heat shield plate.
Pass the clutch cable
between nuts.
Clutch cable
0 mm
Clutch cable stopper No.2
Clutch cable stopper No.1
A
250 mm
(9.8 in)
Clip
VZR1800 ('08-MODEL) 14-25

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
