9-24 CHASSIS
REMOVAL

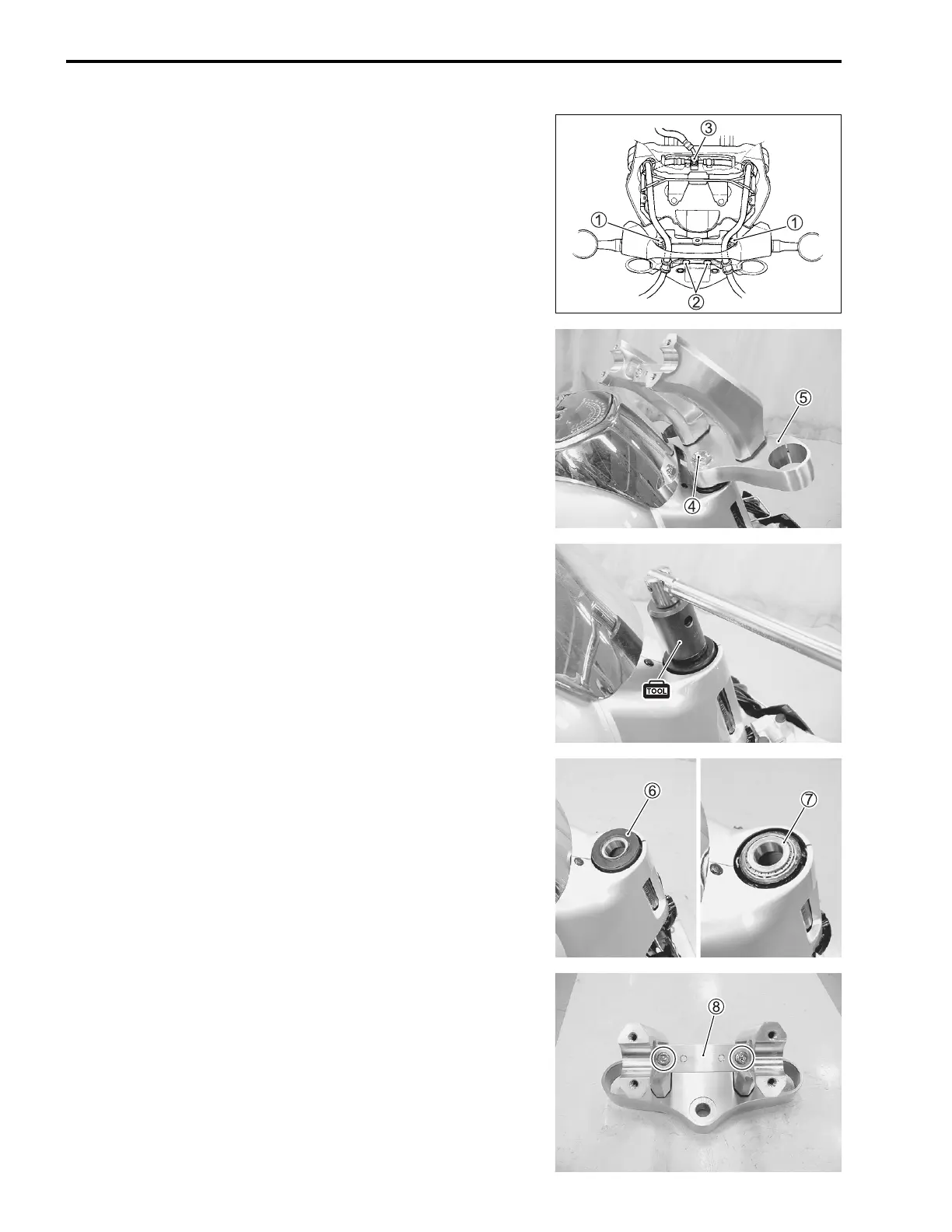

• Remove the front forks. (!9-15)
• Remove the handlebar. (!9-30)
• Remove the tachometer. (!10-32)
• Remove the turn signal mounting bolts 1, brake hose guide
bolts 2 and brake hose mounting bolt 3.
• Remove the steering stem head nut 4 and washer.
• Remove the steering stem upper bracket 5.
• Remove the steering stem nut with the special tool.
% 09940-14911: Steering stem nut wrench
• Draw out the steering stem lower bracket.
NOTE:
Hold the steering stem lower bracket by hand to prevent it from
falling.
• Remove the dust seal 6 and steering stem upper bearing 7.
• Remove the handlebar holder bracket 8.

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
