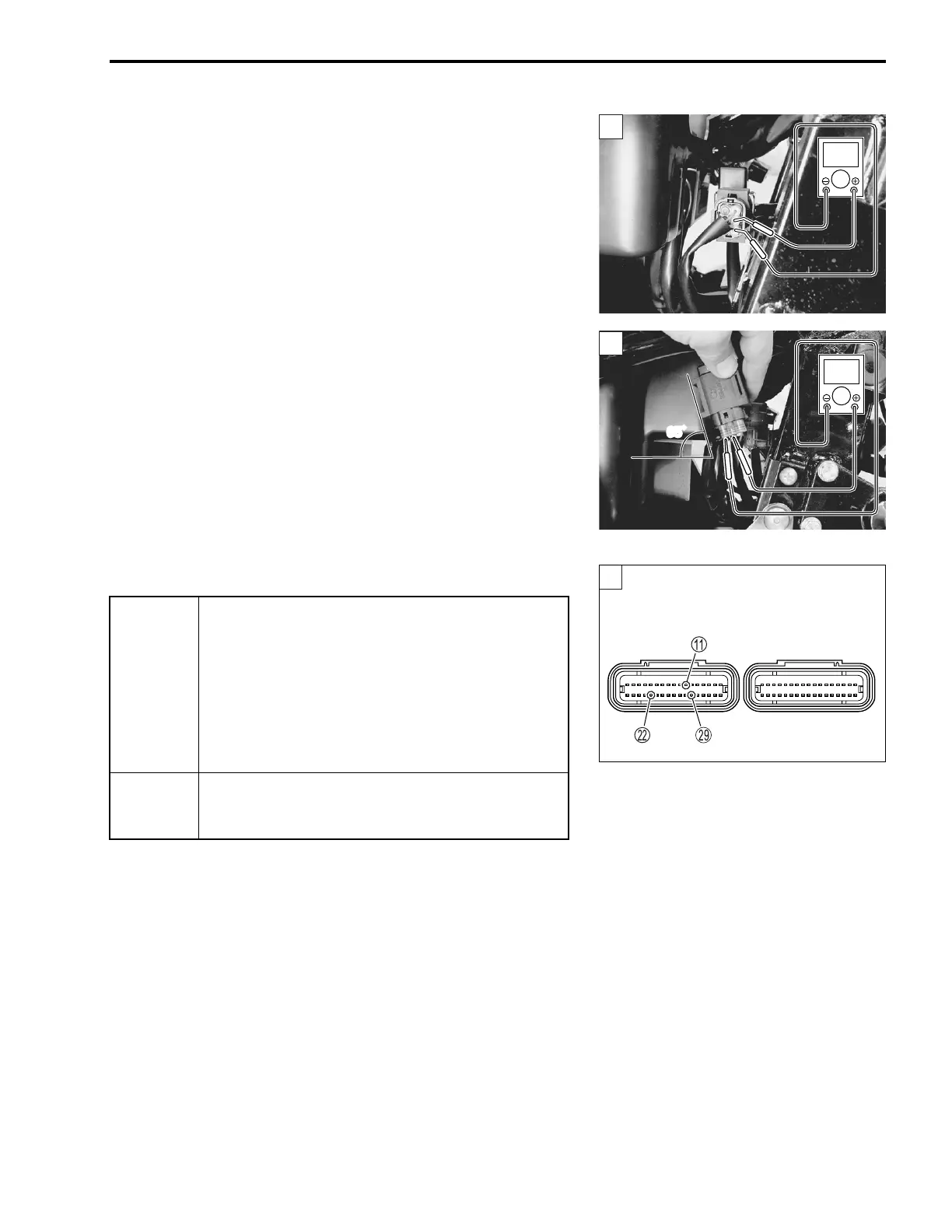

FI SYSTEM DIAGNOSIS 5-57
Step 2
1) Connect the TO sensor coupler and ECM coupler.
2) Insert the needle pointed probes to the lead wire coupler.
3) Turn the ignition switch ON.
4) Measure the voltage at the wire side coupler between Black
and B/Br wires.
$ TO sensor voltage (Normal): 0.4 – 1.4 V
(+ Black – - B/Br)
Also, measure the voltage when leaning the motorcycle.
5) Dismount the TO sensor from its bracket and measure the
voltage when it is leaned 65° and more, left and right, from
the horizontal level.
$ TO sensor voltage (Leaning): 3.7 – 4.4 V
(+ Black – - B/Br)
! 09900-25008: Multi-circuit tester set
09900-25009: Needle pointed probe set
& Tester knob indication: Voltage (')
Is the voltage OK?
6) After repairing the trouble, clear the DTC using SDS tool.
(#5-26)
“C24” (P0351), “C25” (P0352), “C26” (P0353) or “C27” (P0354) IGNITION
SYSTEM MALFUNCTION
(When indicating C24/P0351 and C26/P0353 for #1)
(When indicating C25/P0352 and C27/P0354 for #2)
* Refer to the IGNITION SYSTEM for details. (#10-22)
2
V
2
V
65˚
YES
• Red, Black or B/Br wire open or shorted to
ground, or poor A, L or S connection
• If wire and connection are OK, intermittent trou-
ble or faulty ECM.
• Recheck each terminal and wire harness for
open circuit and poor connection.
• Replace the ECM with a known good one, and
inspect it again.
NO
• Loose or poor contacts on the ECM coupler
• Open or short circuit
• Replace the TO sensor with a new one.
ECM coupler (Harness side)
2
(Black) (Gray)

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
