9-46 CHASSIS
REASSEMBLY

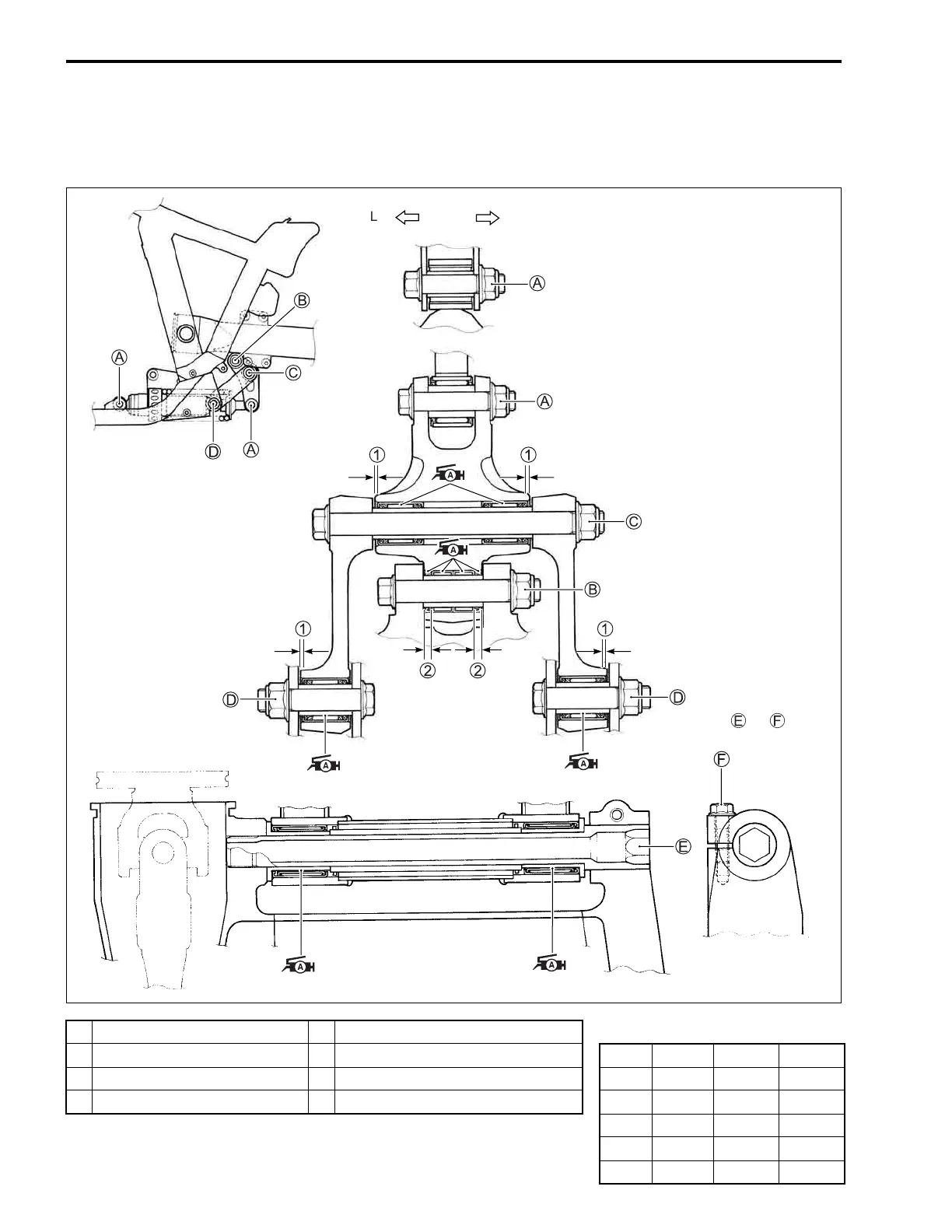

Reassemble the rear suspension in the reverse order of disassembly and removal.
Pay attention to the following points:
NOTE:
Tightening order
are
E to F .
LH RH
1 1.0 mm (0.04 in) C Rear cushion lever lower nut #
2 4.5 mm (0.17 in) D Rear cushion rod nut ITEM N·m kgf-m lb-ft
A Rear shock absorber nut E Swingarm pivot shaft A 45 4.5 32.5
B Rear cushion lever upper nut F Swingarm pivot shaft clamp bolt B 110 11.0 79.5
C 85 8.5 61.5
D 110 11.0 79.5
E 100 10.0 72.5

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
