FUEL SYSTEM AND THROTTLE BODY 6-19

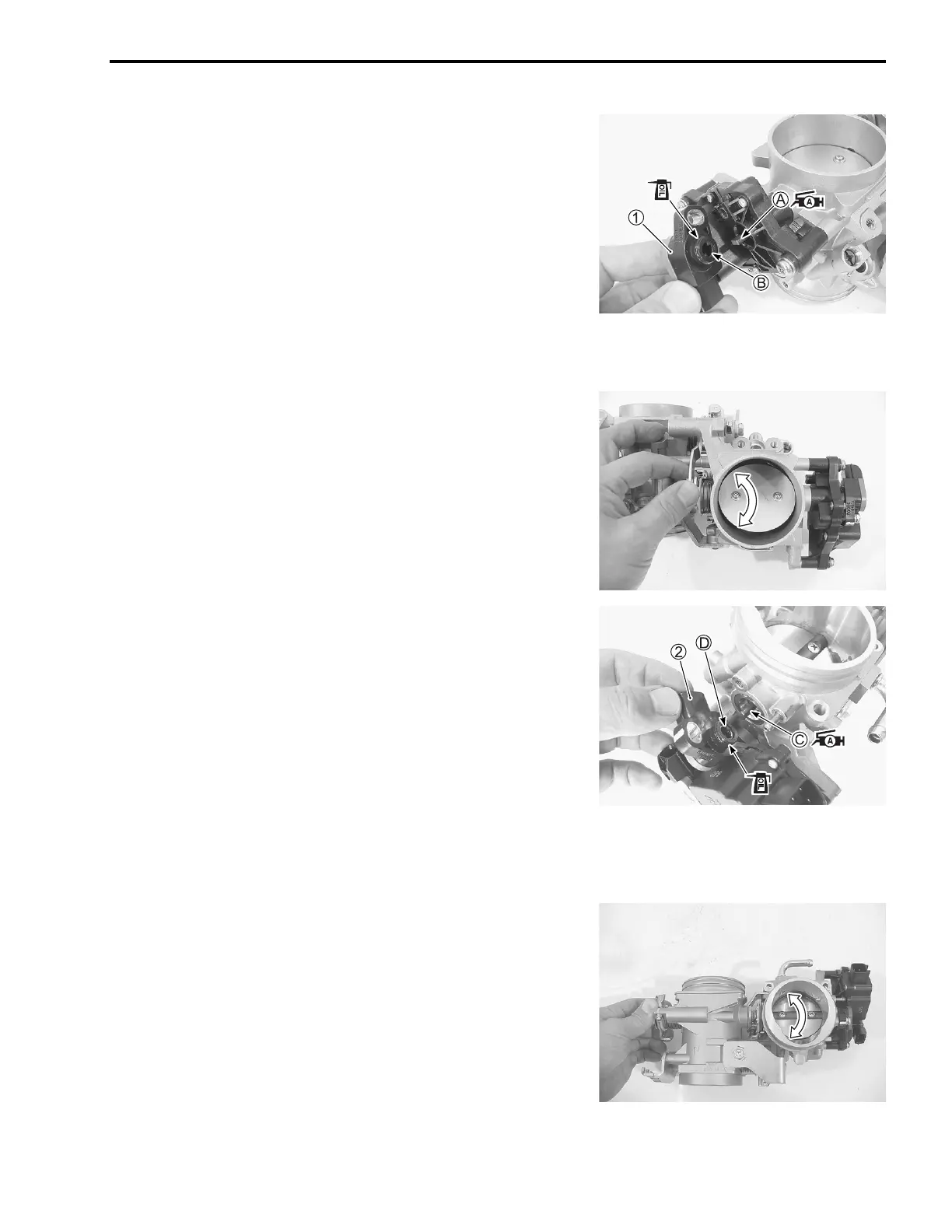

THROTTLE BODY REASSEMBLY
Reassemble the throttle body in the reverse order of disassem-
bly. Pay attention to the following points:
• With the STV fully closed, install the STP sensor 1 and
tighten the STP sensor mounting screw to the specified
torque.
NOTE:
* Apply thin coat of the engine oil to the O-ring.
* Align the secondary throttle shaft end A with the groove B of
STP sensor.
* Apply SUZUKI SUPER GREASE “A” to the secondary throttle
shaft end A if necessary.
) 99000-25010: SUZUKI SUPER GREASE “A”
or equivalent
$ 09930-11950: Torx wrench
(
STP sensor mounting screw: 3.5 N·m (0.35 kgf-m, 2.5 lb-ft)
NOTE:
* Make sure the STP valve open or close smoothly.
* If the STP sensor adjustment is necessary, refer to page 6-22
for STP sensor setting procedure.
• With the throttle valve fully closed, install the TP sensor 2
and tighten the TP sensor mounting screw to the specified
torque.
NOTE:
* Apply thin coat of the engine oil to the O-ring.
* Align the throttle shaft end C with the groove D of TP sensor.
* Apply SUZUKI SUPER GREASE “A” to the throttle shaft end
C if necessary.
) 99000-25010: SUZUKI SUPER GREASE “A”
or equivalent
$ 09930-11950: Torx wrench
( TP sensor mounting screw: 3.5 N·m (0.35 kgf-m, 2.5 lb-ft)
NOTE:
* Make sure the throttle valve open or close smoothly.
* TP sensor setting procedure. (!5-20)
