3-50 ENGINE

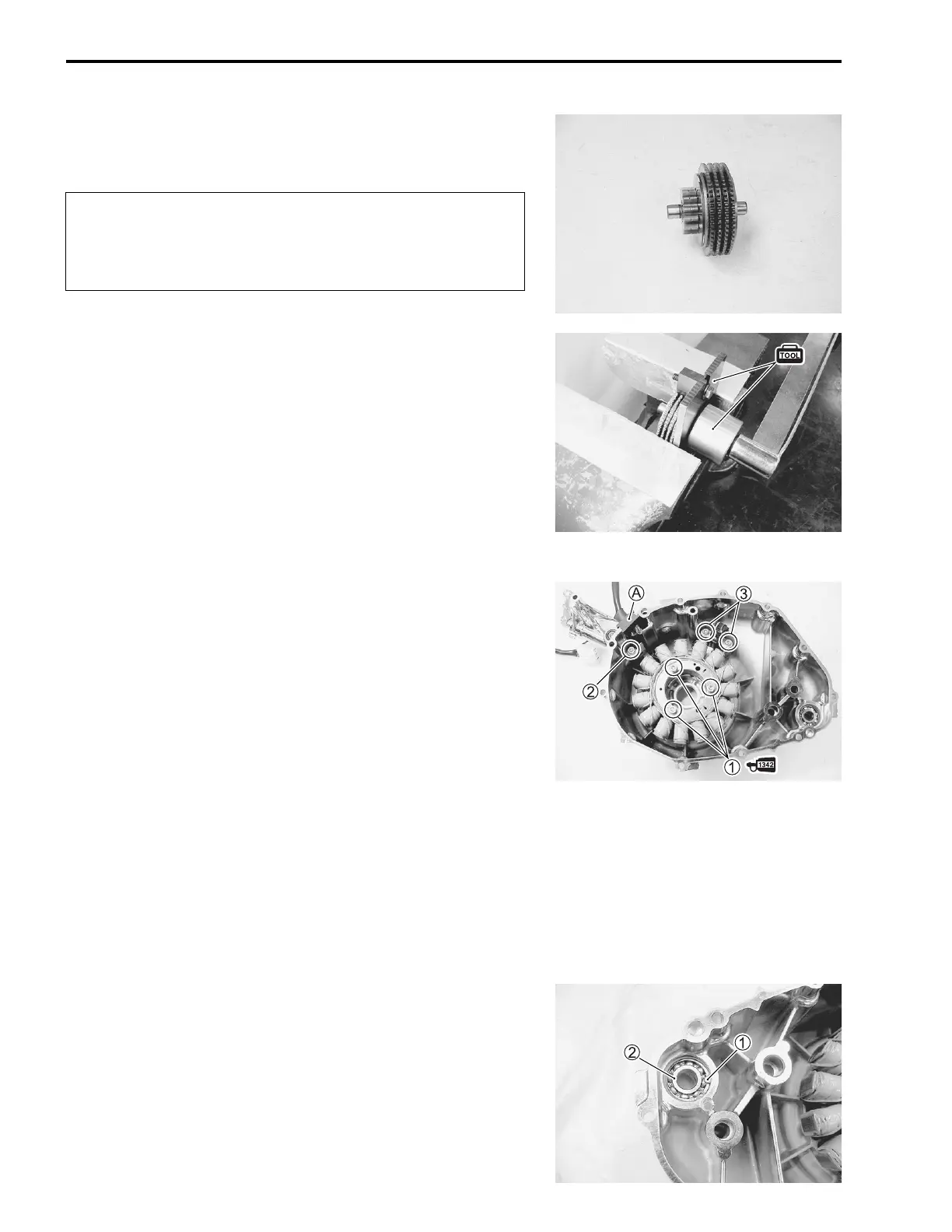

STARTER TORQUE LIMITER
STARTER TORQUE LIMITER INSPECTION
"
• Check the slip torque with the special tools.
$ Slip torque
Standard: 31 – 51 N·m (3.1 – 5.1 kgf-m, 22.5 – 37.0 lb-ft)
% 09930-73170: Starter torque limiter holder
09930-731 0: Starter torque limiter socket
• Set the starter torque limiter to the special tools and vise as
shown.
• If the slip torque is not within the specification, replace the
starter torque limiter with a new one.
GENERATOR COVER
GENERATOR INSPECTION (!10-10)
REASSEMBLY
• Apply a small quantity of THREAD LOCK to the startor bolt.
• Tighten the generator stator bolts 1, clamp bolt 2 and CKP
sensor bolts 3.
& 99000-32050: THREAD LOCK “1342” or equivalent
# Generator stator bolt 1: 11 N·m (1.1 kgf-m, 8.0 lb-ft)
CKP sensor bolt 3: 6.5 N·m (0.65 kgf-m, 4.5 lb-ft)
NOTE:
Be sure to install the grommet A to the generator cover.
BEARING INSPECTION
• Inspect the starter motor shaft bearing for abnormal noise and
smooth rotation while they are in the generator cover.
• Replace the bearing if there is anything unusual.
BEARING REMOVAL
• Remove the snap ring 1 and bearing 2.
* Do not attempt to disassemble the starter torque lim-
iter.
* The starter torque limiter is available only as an
assembly.
4

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
