CHASSIS 9-23
STEERING

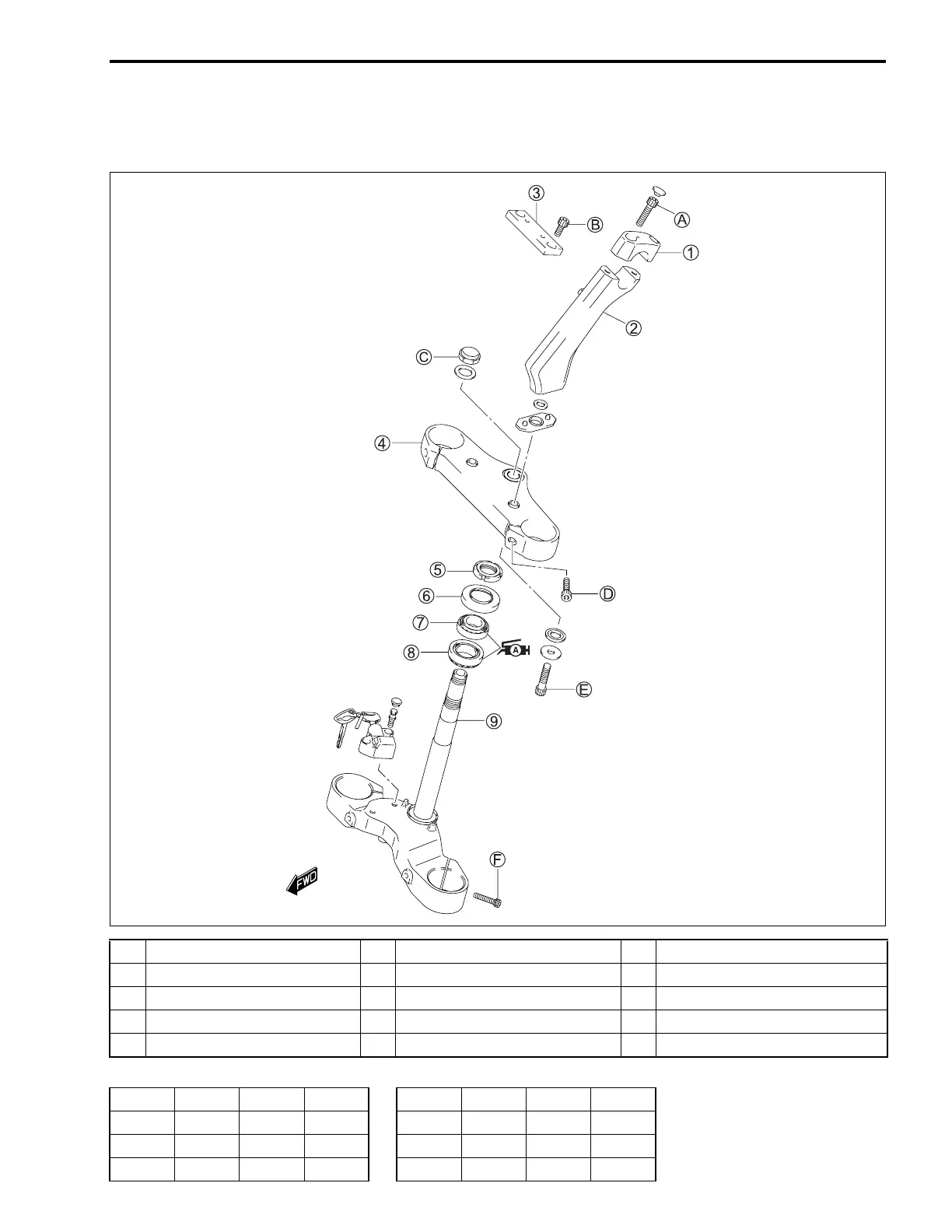

CONSTRUCTION
#
1 Handlebar clamp 6 Dust seal B Handlebar holder bracket bolt
2 Handlebar clamp holder 7 Steering stem upper bearing C Steering stem head nut
3 Handlebar holder bracket 8 Steering stem lower bearing D Front fork upper clamp bolt
4 Steering stem upper bracket 9 Steering stem E Handlebar holder bolt
5 Steering stem nut A Handlebar clamp bolt F Front fork lower clamp bolt
ITEM N·m kgf-m lb-ft ITEM N·m kgf-m lb-ft
A 23 2.3 16.5 D 23 2.3 16.5
B 23 2.3 16.5 E 85 8.5 61.5
C 90 9.0 65.0 F 23 2.3 16.5

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
