FI SYSTEM DIAGNOSIS 5-41

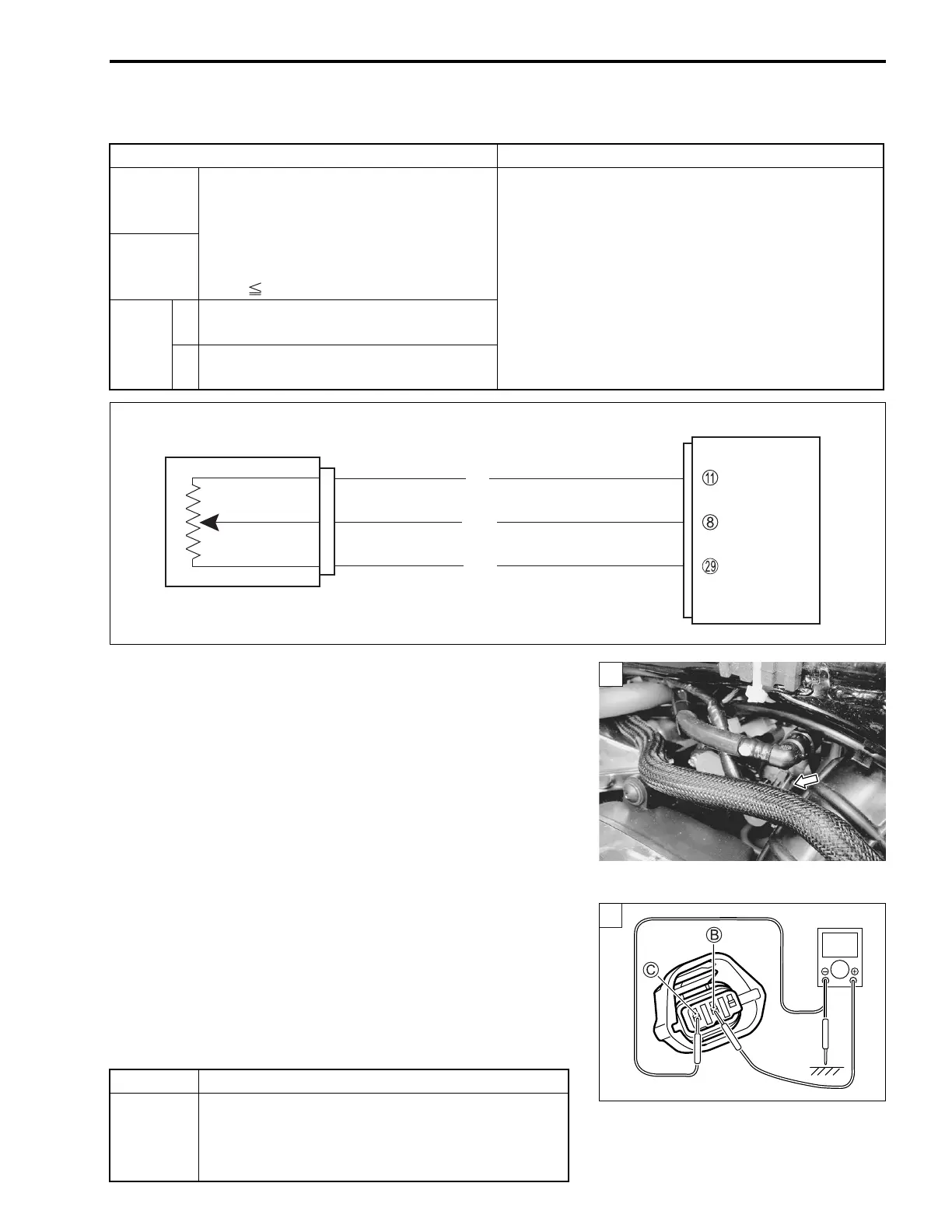

“C14” (P0120-H/L) TP SENSOR CIRCUIT MALFUNCTION
INSPECTION
Step 1 (When indicating C14:)
1) Turn the ignition switch OFF.
2) Remove the fuel tank. (#6-3)
3) Check the TP sensor coupler for loose or poor contacts.
If OK, then measure the TP sensor input voltage.
4) Disconnect the TP sensor coupler.
5) Turn the ignition switch ON.
6) Measure the voltage at the Red wire B and ground.
7) If OK, then measure the voltage at the Red wire B and B/Br
wire C.
$ TP sensor input voltage: 4.5 – 5.5 V
(+ Red – - Ground)
(+ Red – - B/Br)
! 09900-25008: Multi-circuit tester set
& Tester knob indication: Voltage (')
Is the voltage OK?
DETECTED CONDITION POSSIBLE CAUSE
C14 Output voltage is not within the following
range.
Difference between actual throttle open-
ing and opening calculated by ECM is
larger than specified value.
0.2 V Sensor voltage < 4.8 V
• TP sensor maladjusted
• TP sensor circuit open or short
• TP sensor malfunction
• ECM malfunction
P0120
P0120
H
Sensor voltage is higher than specified
value.
• TP sensor circuit shorted to VCC or ground circuit
open
• TP sensor circuit open or shorted to ground or
VCC circuit open
L
Sensor voltage is lower than specified
value.
ECM
R
B/Br
VCC
TP
E2
P/B
TP sensor
YES Go to Step 2.
NO
• Loose or poor contacts on the ECM coupler
(terminal A or S).
• Open or short circuit in the Red wire or B/Br
wire.
1
1
V

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
