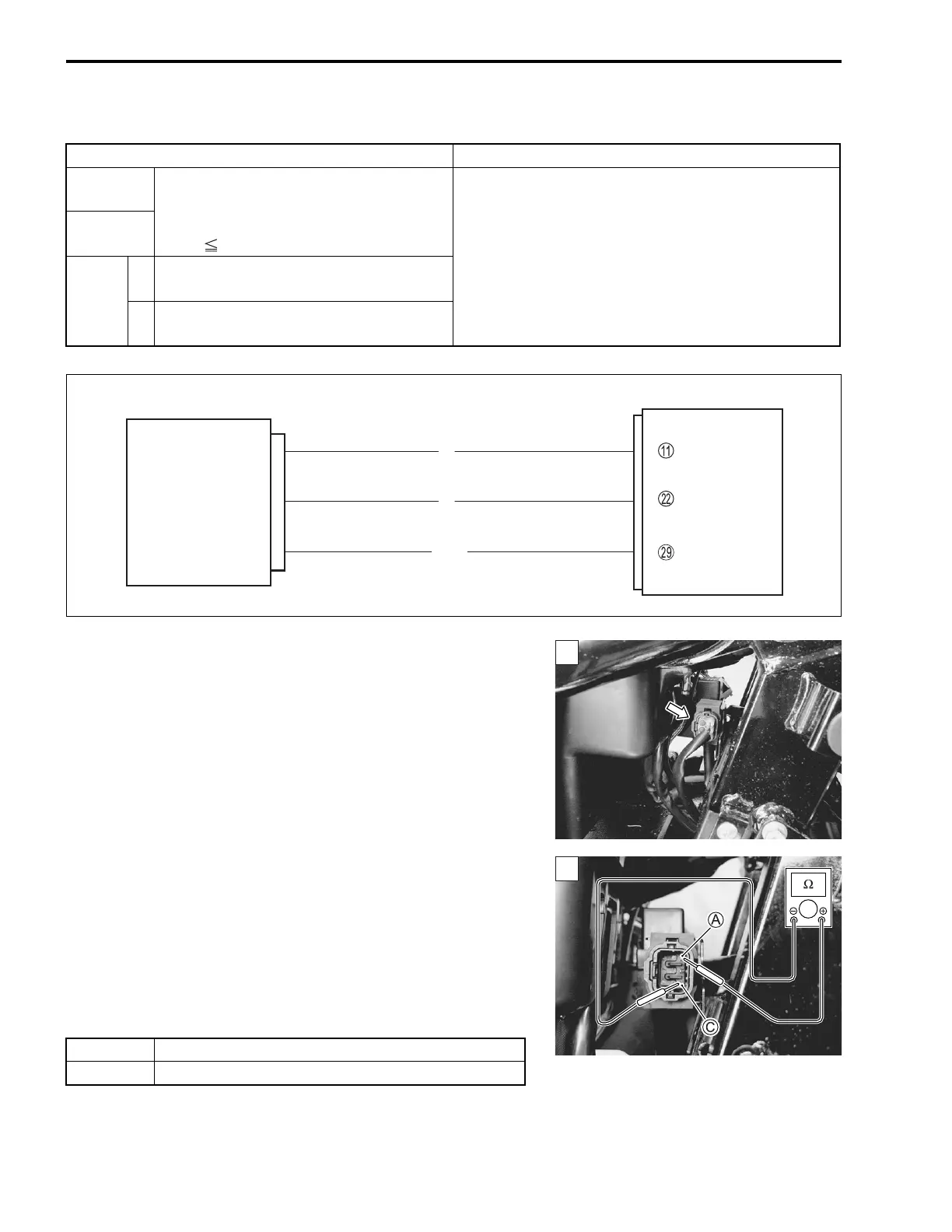

5-54 FI SYSTEM DIAGNOSIS
“C23” (P1651-H/L) TO SENSOR CIRCUIT MALFUNCTION
INSPECTION
Step 1 (When indicating C23:)
1) Turn the ignition switch OFF.
2) Remove the fuel tank. (#6-3)
3) Check the TO sensor coupler for loose or poor contacts.
If OK, then measure the TO sensor resistance.
4) Disconnect the TO sensor coupler.
5) Measure the resistance between terminal A and terminal C.
$ TO sensor resistance: 16.5 – 22.3 kΩ
(Terminal A – Terminal C)
! 09900-25008: Multi-circuit tester set
% Tester knob indication: Resistance (Ω)
Is the resistance OK?
DETECTED CONDITION POSSIBLE CAUSE
C23 The sensor voltage should be the follow-
ing for 2 sec. and more, after ignition
switch is turned ON.
0.2 V Sensor voltage < 4.8 V
• TO sensor circuit open or short
• TO sensor malfunction
• ECM malfunction
P1651
P1651
H
Sensor voltage is higher than specified
value.
• TO sensor circuit shorted to VCC or ground circuit
open
• TO sensor circuit open or shorted to ground or
VCC circuit open
L
Sensor voltage is lower than specified
value.
ECM
E2
TOS
R
B/Br
VCC
TO sensor
B
1
YES Go to Step 2.
NO Replace the TO sensor with a new one.
1

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
