Suzuki VZR1800 2008 User Manual

10-42 ELECTRICAL SYSTEM

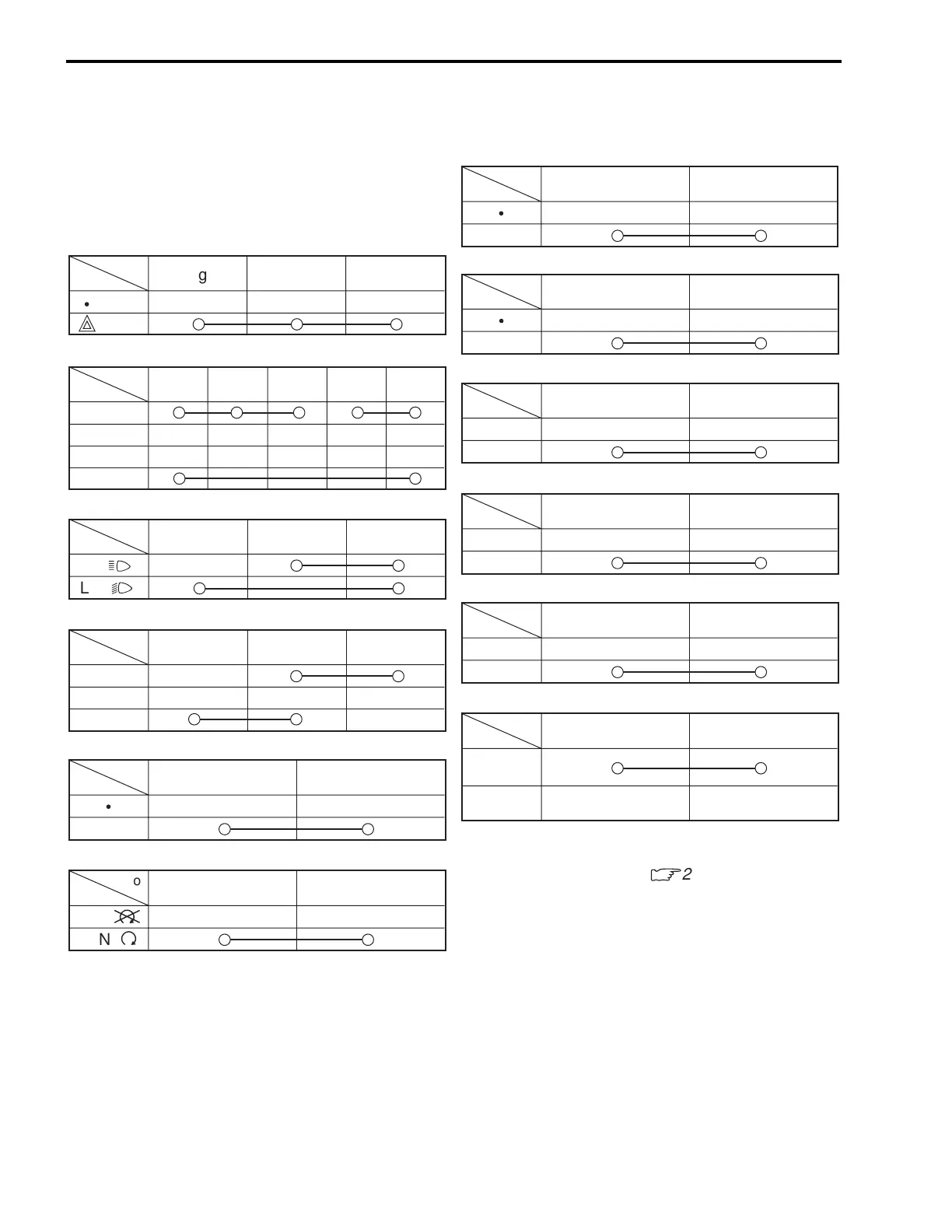

SWITCHES INSPECTION
Color
Position
HAZARD SWITCH
Inspect each switch for continuity with a tester. If any
abnormality is found, replace the respective switch
assemblies with new ones.
NOTE:
Before inspecting the oil pressure switch, check if the
engine oil level is correct. (
: 2-17)
DIMMER SWITCH
PASSING LIGHT SWITCH
W Y Y/W
HI
(
µ
)
LO
(
¶
)
Lg Lbl B
(OFF)
(ON)
HORN BUTTON
STARTER BUTTON
TURN SIGNAL SWITCH
Color
Position
Lg Lbl B
L
PUSH
R
ENGINE STOP SWITCH
Color
Position
Y/W Y
PUSH
Color
Position
O/B O/W
OFF
(
À
)
RUN
(
¾
)
Color
Position
O/W Y/G
PUSH
FRONT BRAKE SWITCH
REAR BRAKE SWITCH
CLUTCH LEVER POSITION SWITCH
OIL PRESSURE SWITCH
WIRE COLOR
B : Black Lbl : Light blue R : Red
Br : Brown Lg : Light green W : White
Gr : Gray O : Orange Y : Yellow
B/BI : Black with Blue tracer
B/R : Black with Red tracer
B/W : Black with White tracer
B/Y : Black with Yellow tracer
G/Y : Green with Yellow tracer
O/B : Orange with Black tracer
O/G : Orange with Green tracer
O/W : Orange with White tracer
O/Y : Orange with Yellow tracer
W/B : White with Black tracer
Y/G : Yellow with Green tracer
Y/W : Yellow with White tracer
Color
Position
G/Y Ground
ON (engine
is at stop)
OFF (engine
is running)
Color
Position
B/Y B/Y
OFF
ON
Color
Position
O/G W/B
OFF
ON
Color
Position
B/R B/Bl
OFF
ON
Color
Position
B/Bl B/W
PUSH
Color
Position
IGNITION SWITCH
R O O/Y Gr Br
ON
OFF
LOCK
P
Color
Position

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
