9-34 CHASSIS

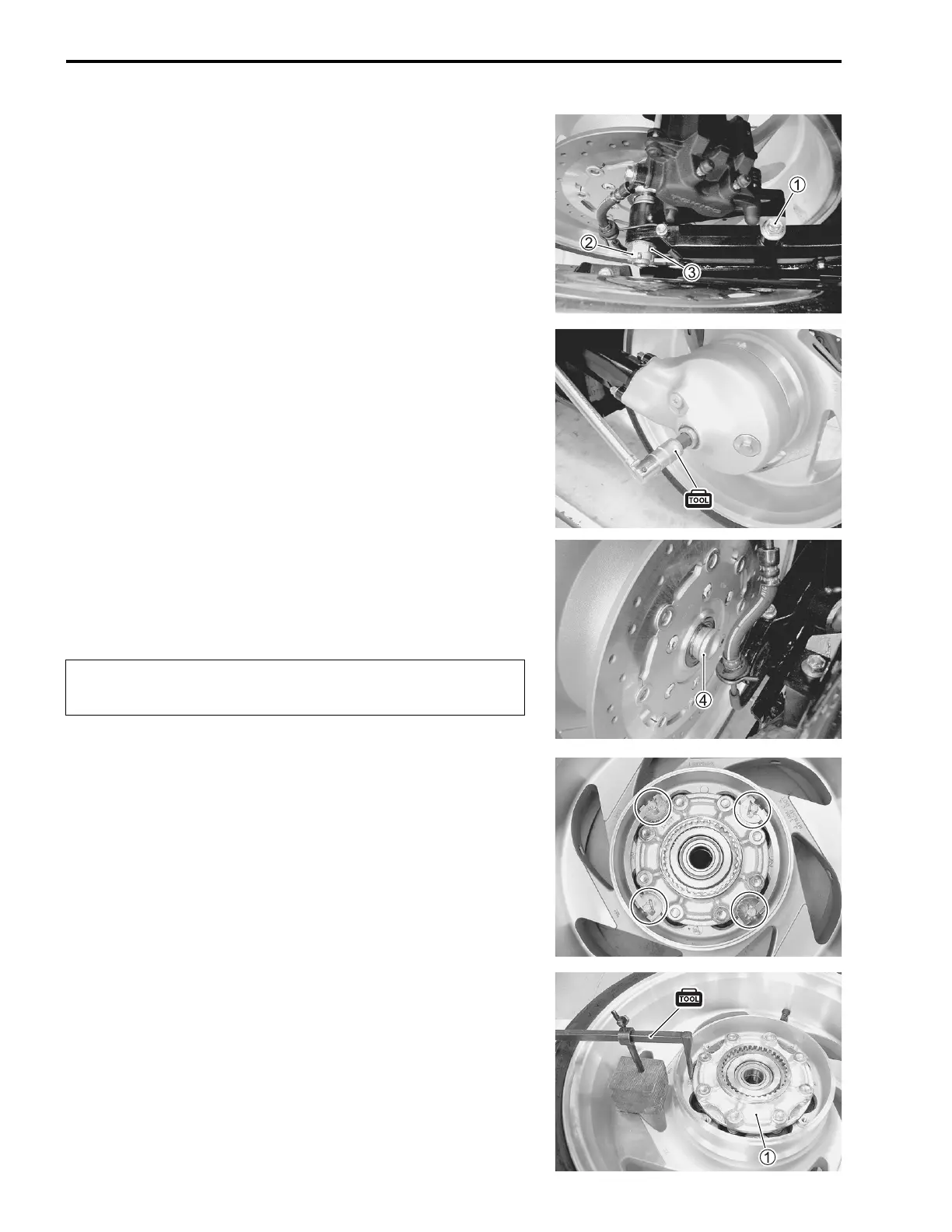

REMOVAL
• Remove the brake caliper bracket mounting bolt 1.
• Remove the cotter pin 2. (For E-03, 28, 33)
• Hold the rear axle with the special tool and remove the axle
nut 3.
% 09944-28320: Hexagon socket
• Raise the rear wheel off the ground and support the motorcy-
cle with a jack or wooden block.
• Draw out the rear axle and coller 4.
• Remove the rear wheel.
$
DISASSEMBLY
• Flatten the lock washers.
• Remove the bolts, washers and plates.
• Remove the driven hub joint 1 with the special tool and
wooden block.
% 09913-50121: Oil seal remover
Do not operate the brake pedal while removing the cal-
iper.
