10-30 ELECTRICAL SYSTEM
SPEEDOMETER AND TACHOMETER
DESCRIPTION
This speedometer and tachometer mainly consists of the stepping motor (except for tachometer), LCD (Liq-
uid Crystal Display) and LED (Light Emitting Diode).
The speedometer pointer is driven by the stepping motor.
The LCDs indicate Tachometer, Engine coolant and Oil pressure temp mark, Odo/Trip1/Trip2/FI and Clock,
Fuel level respectively.
LED (Light Emitting Diode)
LED is used for the illumination light and each indicator light.
LED is maintenance free. LED is less electric-power consuming and stronger to vibration resistance com-
pared to the bulb.
Tachometer indicator lamp
The tachometer light up for 1.0 second and then it operates 9 000 → 0 r/min one time.

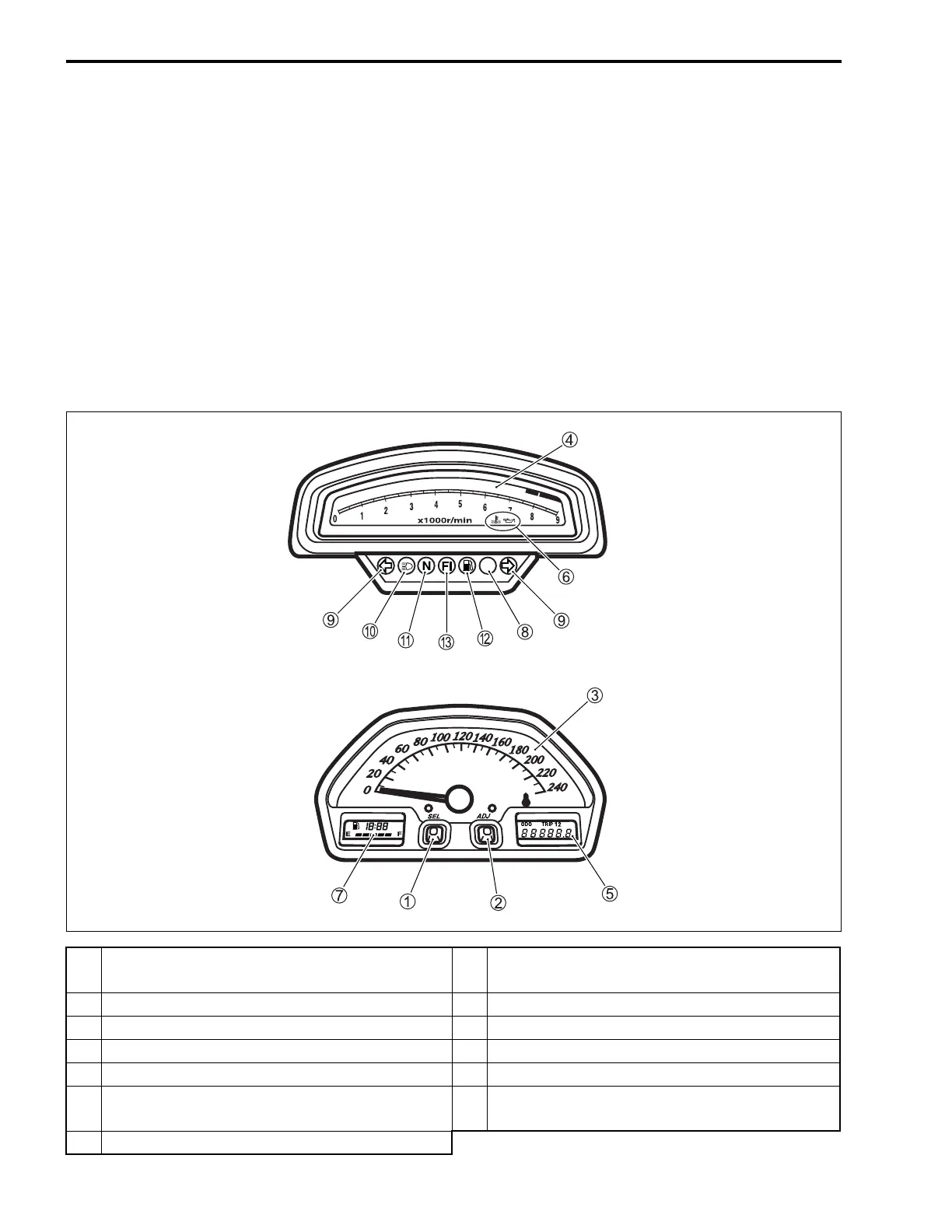

1 Select switch (Odo/Trip1/Trip2/FI) 8
LED (Oil pressure/Engine coolant temperature
indicator light)
2 Adjust switch (Trip/Clock) 9 LED (Turn signal indicator light)
3 Speedometer 0 LED (High-beam indicator light)
4 Tachometer A LED (Neutral indicator light)
5 LCD (Odo/Trip1/Trip2/FI) B LED (Fuel level indicator light)
6
LCD (Oil pressure/Engine coolant temperature
indicator mark)
C LED (FI indicator light)
7 LCD (Clock/FueI level)

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
