FUEL SYSTEM AND THROTTLE BODY 6-21

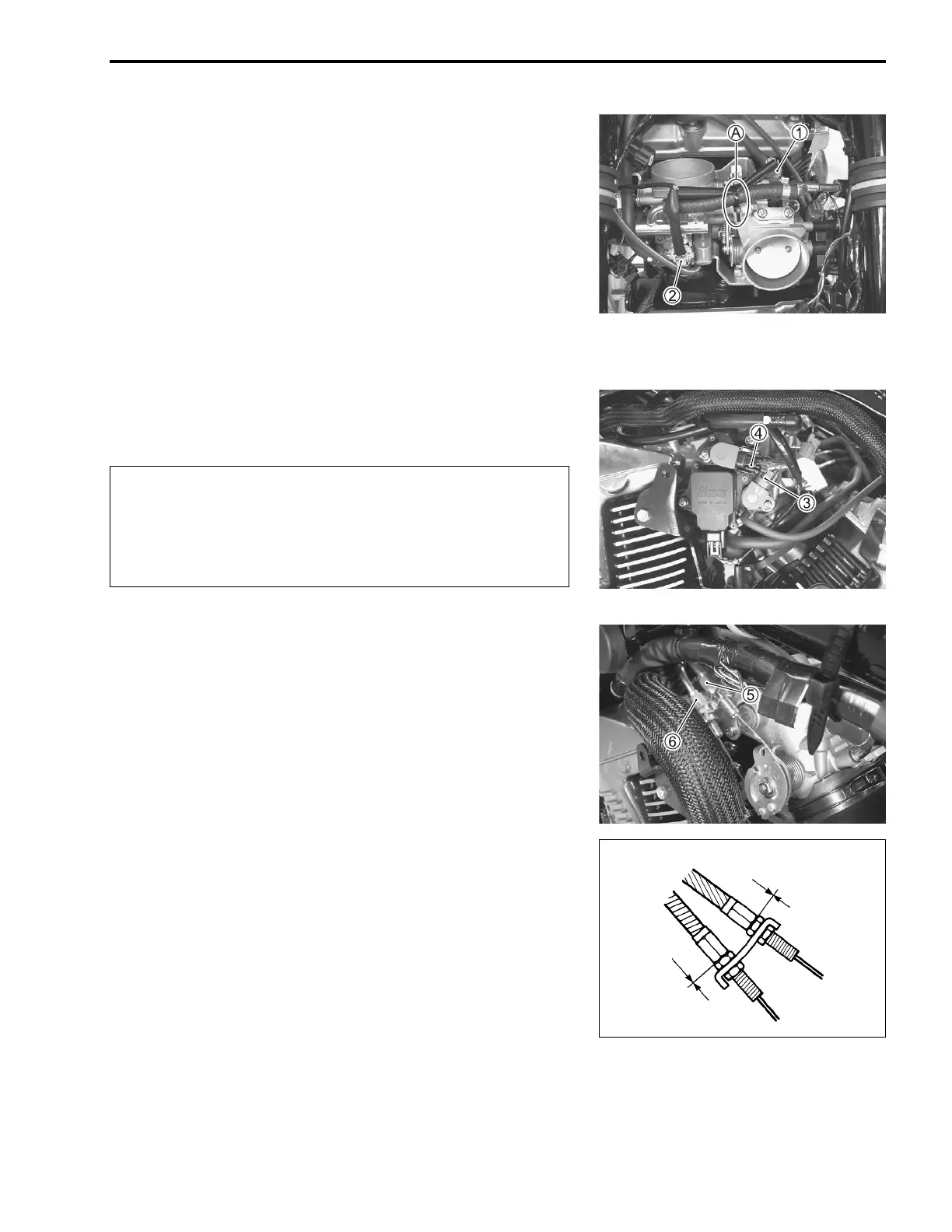

AIR CLEANER CHAMBER AND THROTTLE
BODY INSTALLATION
Installation is in the reverse order of removal. Pay attention to
the following points:
• Connect the fuel injector couplers to the fuel injectors. Make
sure that each coupler is installed in the correct position. The
color on each lead wire refers to the appropriate fuel injector.
Front injector lead wire 1: Y/R and Gr/B
Rear injector lead wire 2: Y/R and Gr/W
NOTE:
Fit the clamp A to the lead wire.
• Connect the TP sensor lead wire coupler 3 and STP sensor
lead wire coupler 4.
"
TP sensor lead wire coupler 3: Gray
• Connect the throttle pulling cable 5 and throttle returning
cable 6 to the throttle cable drum.
• Loosen each throttle cable lock nut.
• Turn in each throttle cable adjuster fully and locate each outer
cable so that the clearance is 0 mm (0 in).
• Tighten each lock nut.
• Adjust the throttle cable play.
Refer to page 2-19 for details.
• Install the air cleaner chamber and tighten the throttle body
clamp screws as shown in the illustration. (!11-41)
TP sensor lead wire coupler and STP sensor lead wire
coupler resemble each other very closely in external
appearance.
Make sure to check the color of coupler before install-
ing.
0 mm (0 in)
0 mm (0 in)

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
