Suzuki VZR1800 2008 User Manual

FI SYSTEM DIAGNOSIS 5-27
SHOW DATA WHEN TROUBLE
(DISPLAING DATA AT THE TIME OF DTC)
ECM stores the engine and driving conditions (in the form of data as shown in the figure) at the moment of
the detection of a malfunction in its memory. This data is called “Show data when trouble”.
Therefore, it is possible to know engine and driving conditions (e.g., whether the engine was warm or not,
where the motorcycle was running or stopped) when a malfunction was detected by checking the show data
when trouble. This show data when trouble function can record the maximum of two Diagnostic Trouble
Codes in the ECM.
Also, ECM has a function to store each show data when trouble for two different malfunctions in the order as
the malfunction is detected. Utilizing this function, it is possible to know the order of malfunctions that have
been detected. Its use is helpful when rechecking or diagnosing a trouble.

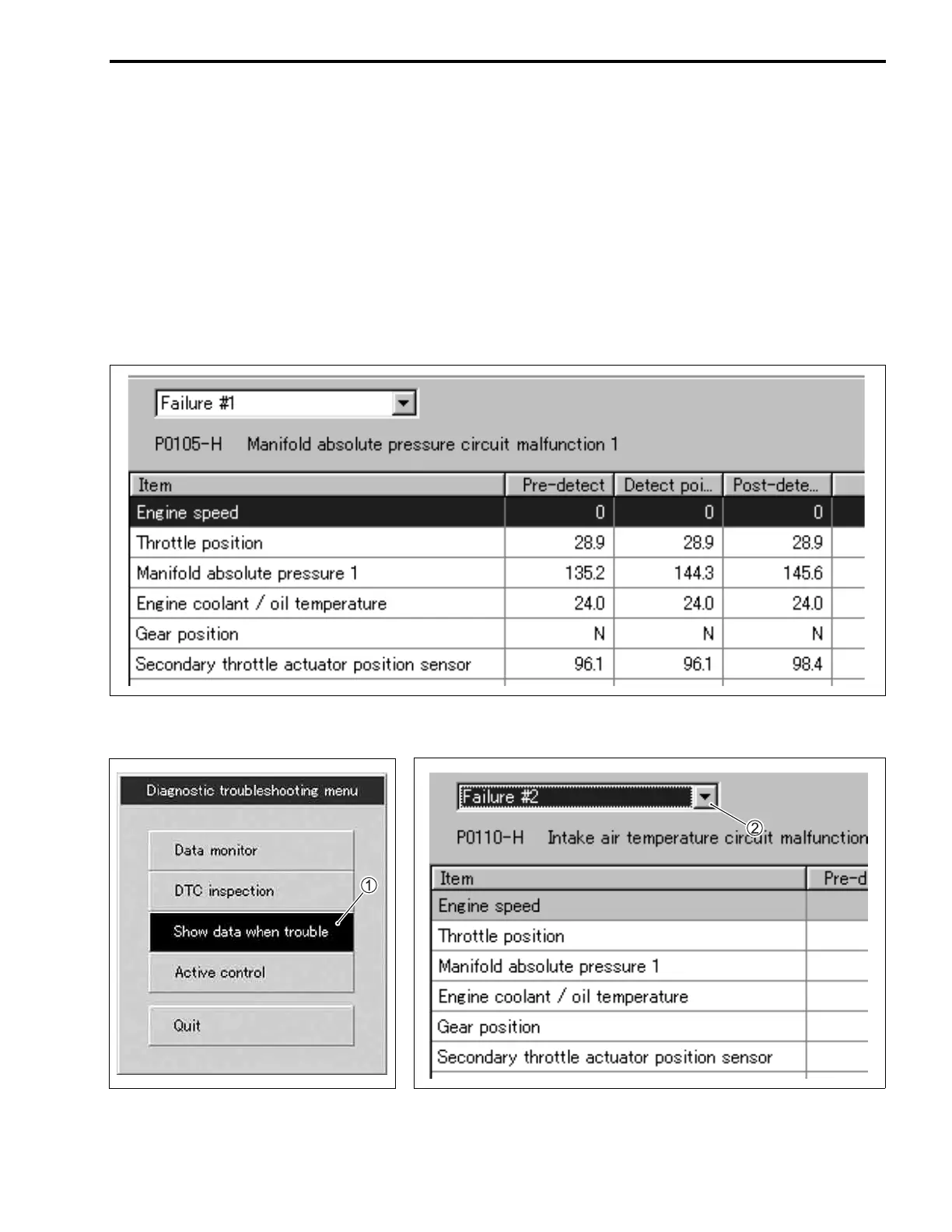

• Click “Show data when trouble” 1 to display the data. By clicking the drop down button 2, either “Failure
#1” or “Failure #2” can be selected.

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
