11-42 SERVICING INFORMATION

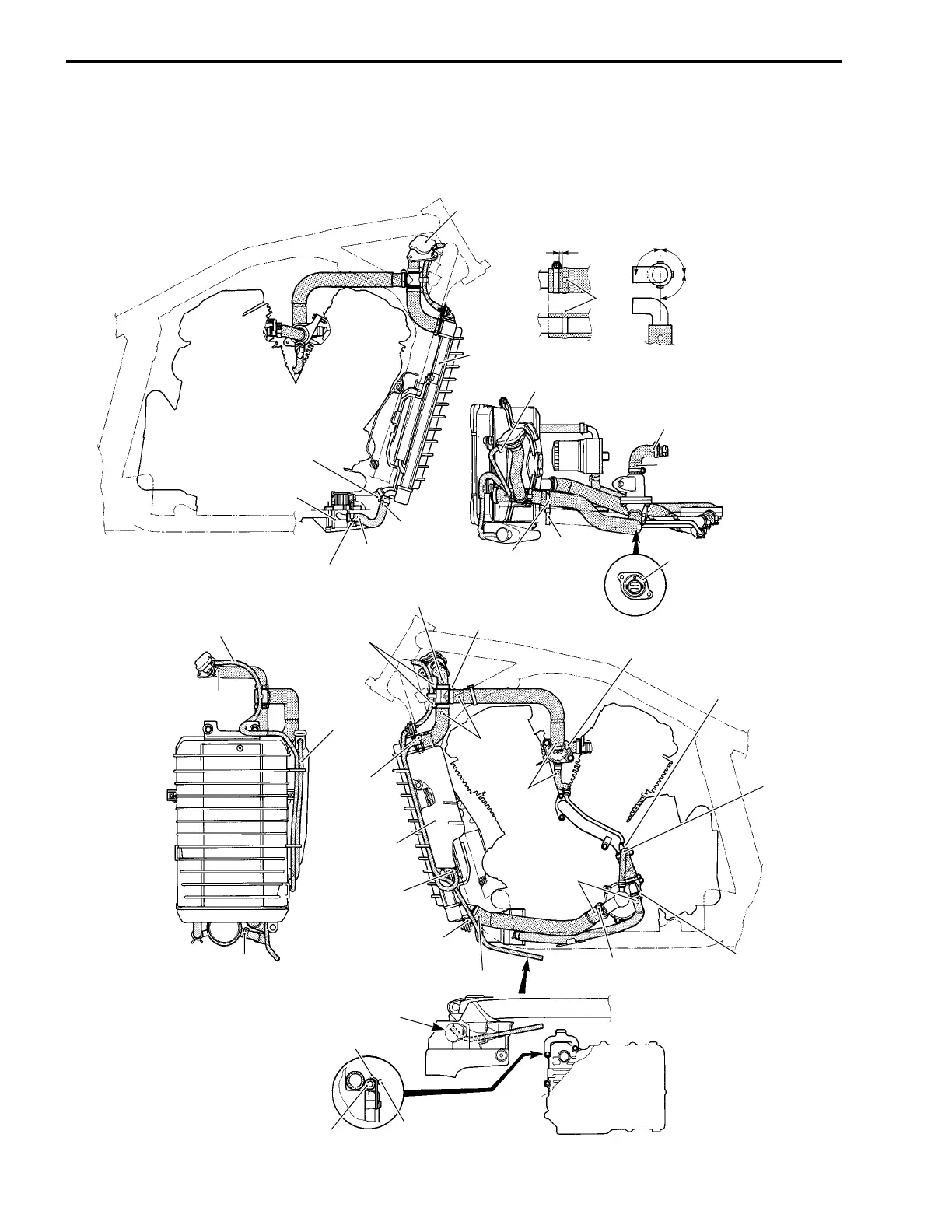

COOLING SYSTEM HOSE ROUTING
Rediator cap
Rediator
Mark
Face the tip of clip to the inside.
White mark
Red mark
Thermostat
Face the tip of clip
to the inside.
Clamp
Face the tip of clip
to the backward.
Yellow mark
Red mark
Face the tip of clip
to the lower.
Oil cooler
Red mark
Reservoir inlet hose
Reservoir
overflow hose
Red mark
Face the tip of clamp
to the forward.
White mark
Face the tip of clamp
to the upper.
White mark
Red mark
Face the tip of clamp
to the backward.
Face the tip of clip
to the backward.
Yellow mark
Face the tip of clip
to the left.
White mark
Face the tip of clamp
to the upper.
Yellow mark
Face the tip of clamp
to the lower.
Face the tip of clip
to the left.
Reservoir
Yellow mark
Pass throw the overflow hose
into the frame body lower cover hole.
Clutch cable
Overflow hose
Bracket
90˚
90˚
90˚
Keep clearance between
clamp and hose.

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
