4-2 DRIVELINE/AXLE
SECONDARY BEVEL GEARS

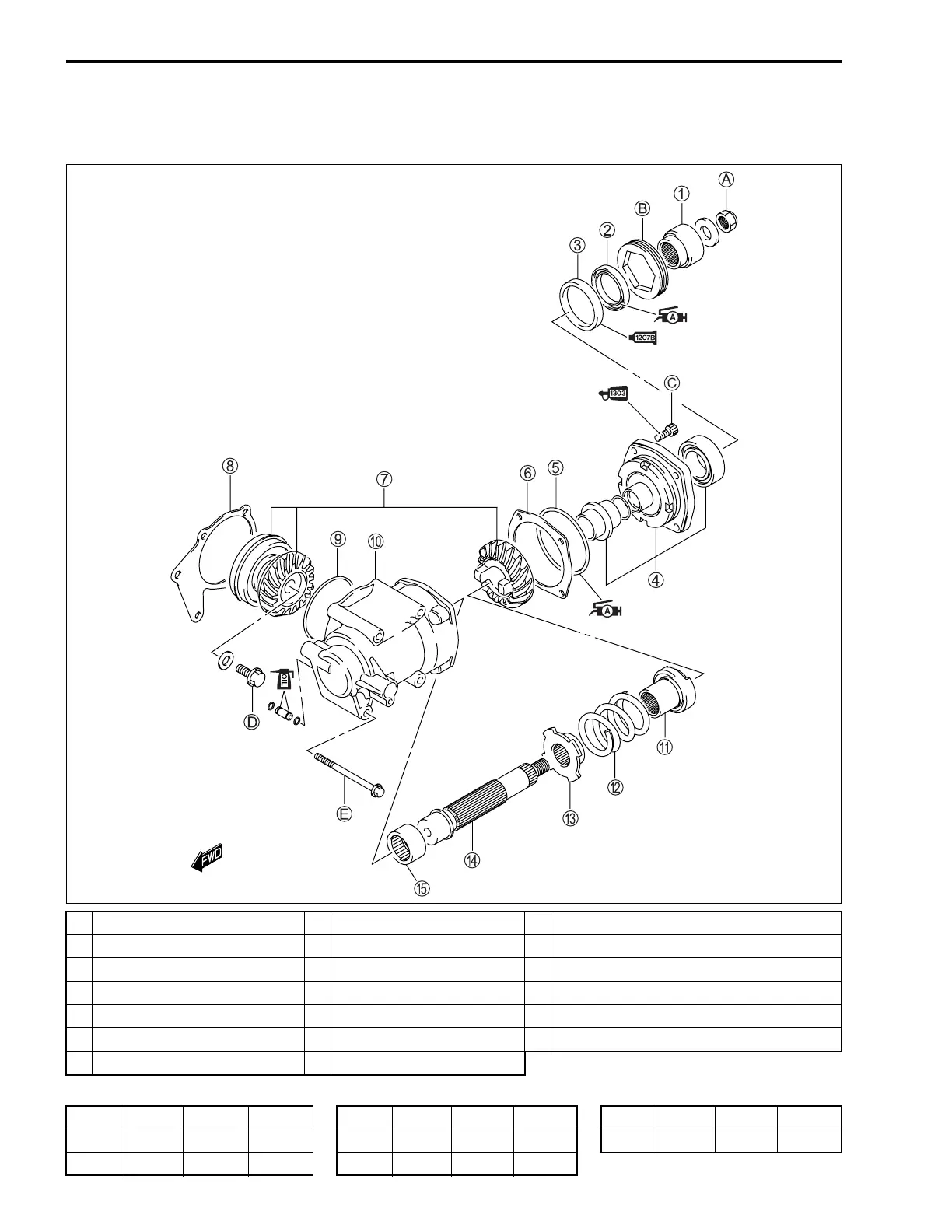

CONSTRUCTION
!
1 Driven bevel gear coupling 8 Shims E Driven bevel gear bearing
2 Oil seal 9 O-ring A Driven bevel gear coupling nut
3 Oil seal housing 0 Secondary gear case B Secondary driven bearing stopper
4 Bearing housing set A Output cam dog C Secondary driven bearing housing bolt
5 O-ring B Damper spring D Secondary drive gear bolt
6 Shims C Spring cam stopper E Secondary driven gear case bolt
7 Secondary bevel gear set D Driven bevel gear shaft
ITEM N·m kgf-m lb-ft ITEM N·m kgf-m lb-ft ITEM N·m kgf-m lb-ft
A 95 9.5 68.5 C 28 2.8 20.0 E 26 2.6 19.0
B 105 10.5 76.0 D 145 14.5 105.0

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
