Suzuki VZR1800 2008 User Manual

ENGINE 3-67
BALANCER DRIVEN GEAR
BALANCER DRIVEN GEAR INSPECTION
Visually inspect the gear teeth for wear and damage. If they are
worn, replace the gear with a new one.

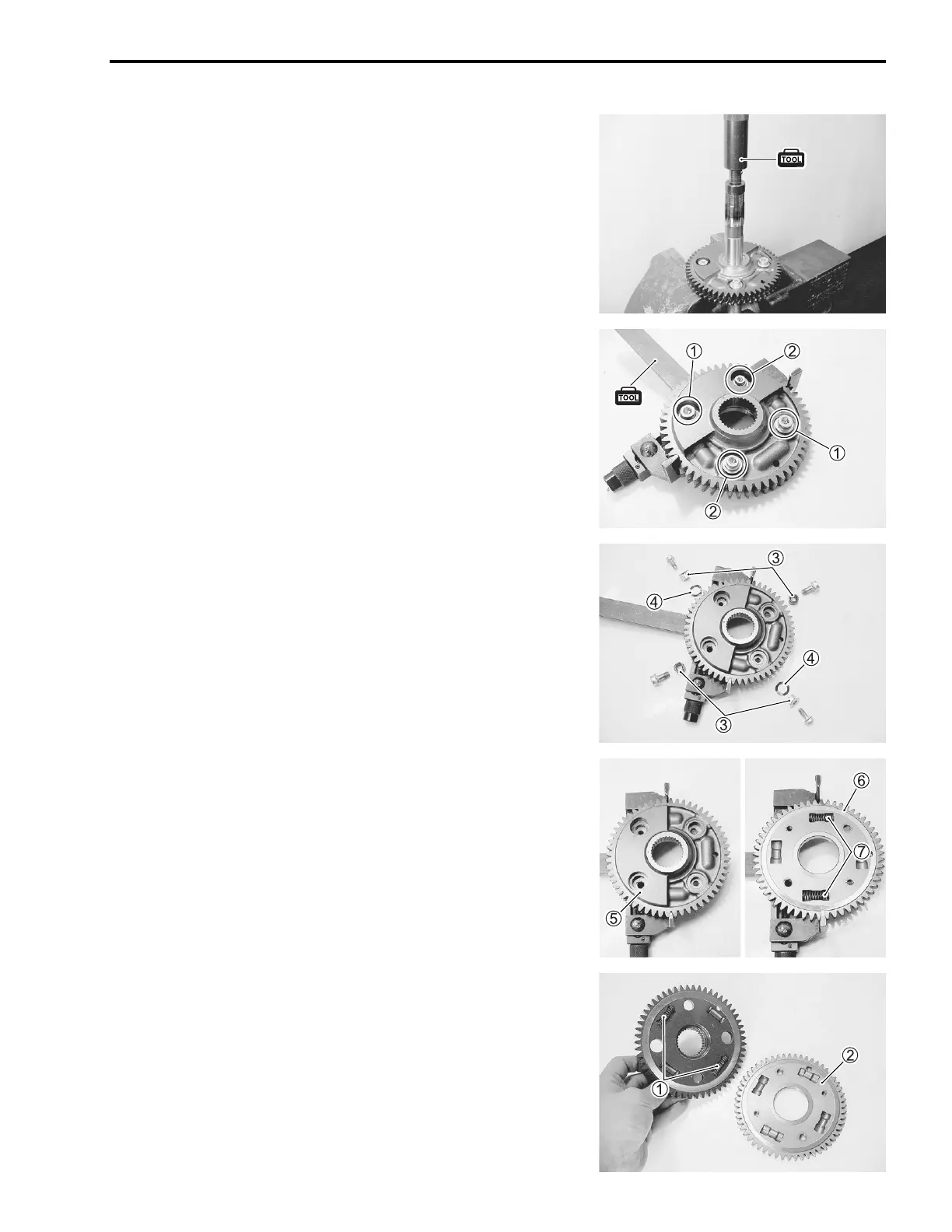

BALANCER DRIVEN GEAR DISASSEMBLY
• Remove the balancer shaft with the special tool.
% 09913-70210: Bearing installer set
• Hold the balancer drivengear with the special tool.
% 09920-53740: Clutch sleeve hub holder
• Remove the balancer driven gear No. 1 bolts 1 and No. 2
bolts 2.
• Remove the spacers 3 and spring washers 4.
• Remove the balancer driven gear No. 1 5 and No. 2 6 from
the special tool.
• Remove the springs 7.
BALANCER DRIVEN GEAR REASSEMBLY
• Set the springs 1 diagonally to the grooves.
• Set the balancer driven gear No. 2 2 to the No. 1.
