3-42 ENGINE
PISTON AND PISTON RING

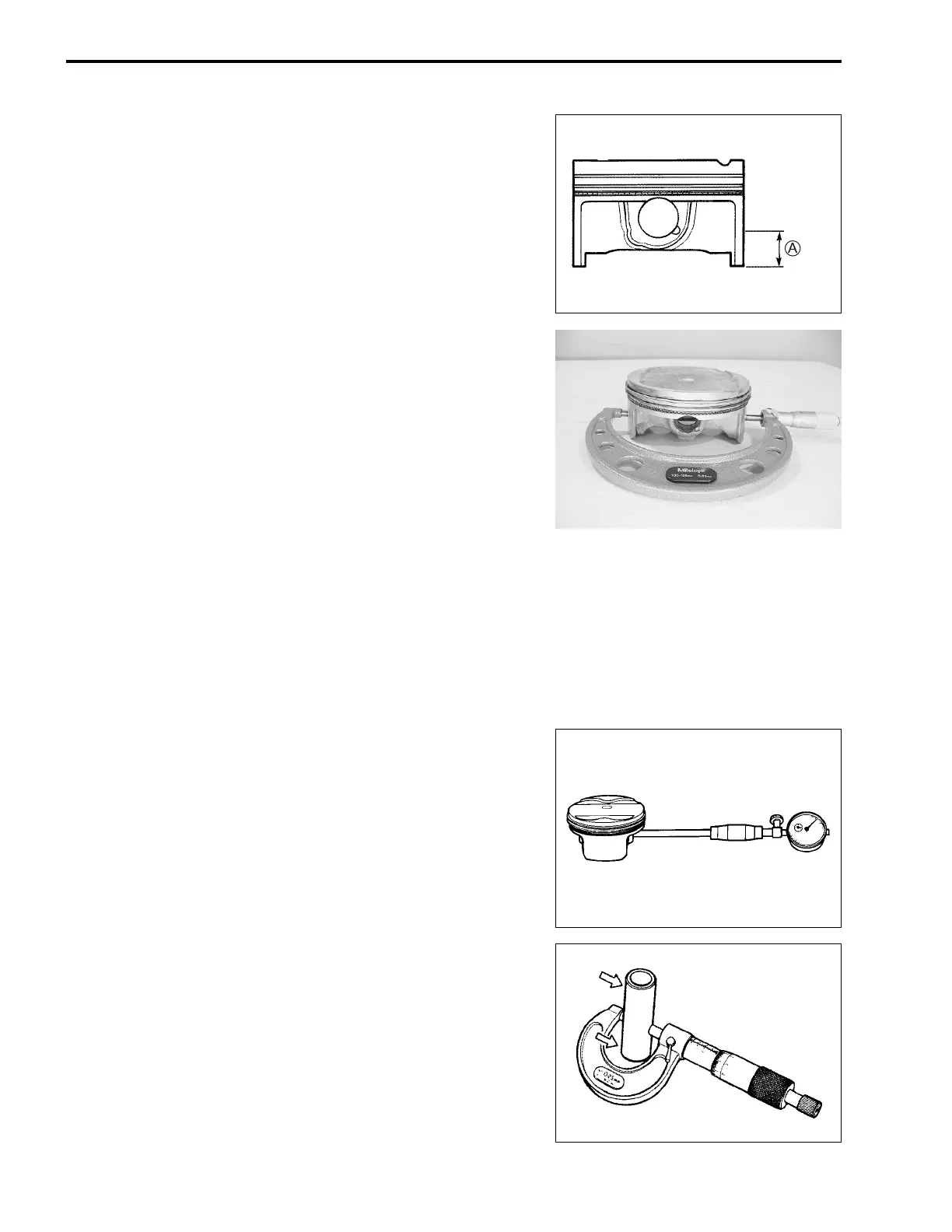

PISTON DIAMETER
• Using a micrometer, measure the piston diameter at 10 mm
(0.4 in) A from the piston skirt end.
• If the measurement is less than the limit, replace the piston.
$ Piston diameter:
Service Limit: 111.880 mm (4.4047 in)
at 10 mm (0.4 in) from the skirt end
% 09900-20210: Micrometer (100 – 125 mm)
PISTON-TO-CYLINDER CLEARANCE
• Subtract the piston diameter from the cylinder bore diameter.
(!3-41)
• If the piston-to-cylinder clearance exceeds the service limit,
replace the cylinder or the piston, or both.
$ Piston-to-cylinder clearance:
Service Limit: 0.120 mm (0.0047 in)
PISTON PIN AND PIN BORE
• Measure the piston pin bore diameter using the small bore
gauge.
• If the measurement is out of specification, replace the piston.
$ Piston pin bore I.D.:
Service Limit: 23.030 mm (0.9067 in)
% 09900-20602: Dial gauge (1/1000 mm)
09900-22403: Small bore gauge (18 – 35 mm)
• Measure the piston pin outside diameter at three positions
using the micrometer.
• If any of the measurements is out of specification, replace the
piston pin.
$ Piston pin O.D.:
Service Limit: 22.980 mm (0.9047 in)
% 09900-20205: Micrometer (0 – 25 mm)

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
