7-8 EXHAUST SYSTEM

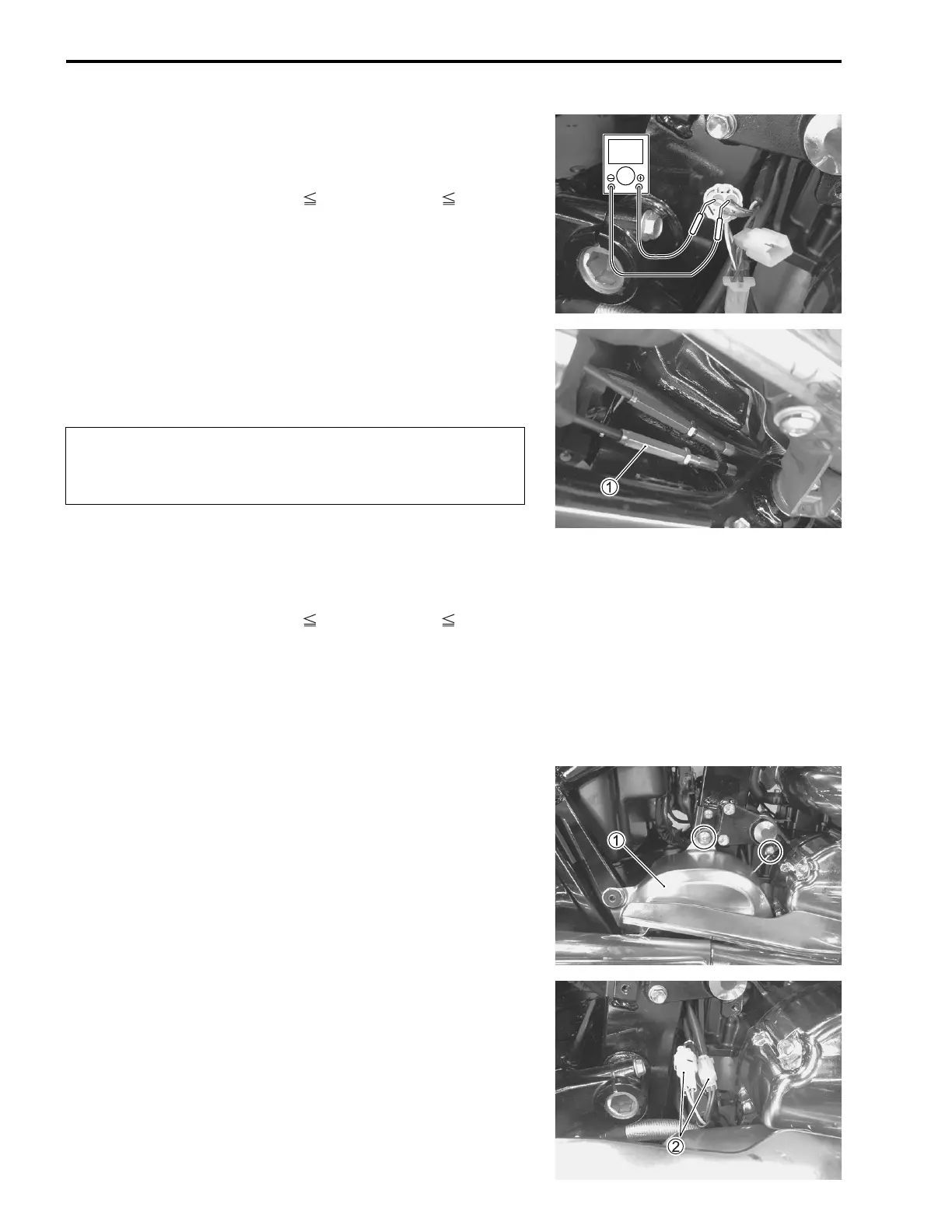

Measure the position sensor output voltage at fully open posi-
tion.
% Position sensor output voltage
EXCV is fully open: 3.5 output voltage 4.5 V
(+ Yellow – - B/Br)
If the measured voltage is more than specification, adjust the
No.2 cable adjuster as follows:
• Set the EXCVA to adjustment position. (!7-2)
#
• Turn out the No. 2 cable adjuster 1.
• Repeat the above procedure until the output voltage comes
within the specified value.
% Position sensor output voltage
EXCV is fully open: 3.5 output voltage 4.5 V
• After adjusting the EXCV cables, perform 2nd step to confirm
C46 is not indicated.
EXHAUST PIPE AND MUFFLER
REMOVAL
• Remove the right frame cover. (!9-5)
• Remove the lower frame cover 1.
• Disconnect the EXCVA lead wire couplers 2.
V
Adjusting the No. 2 cable with the EXCV fully opened
can damage the EXCVA. Be sure to adjust the No. 2
cable with the EXCV set in adjustment position.

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
