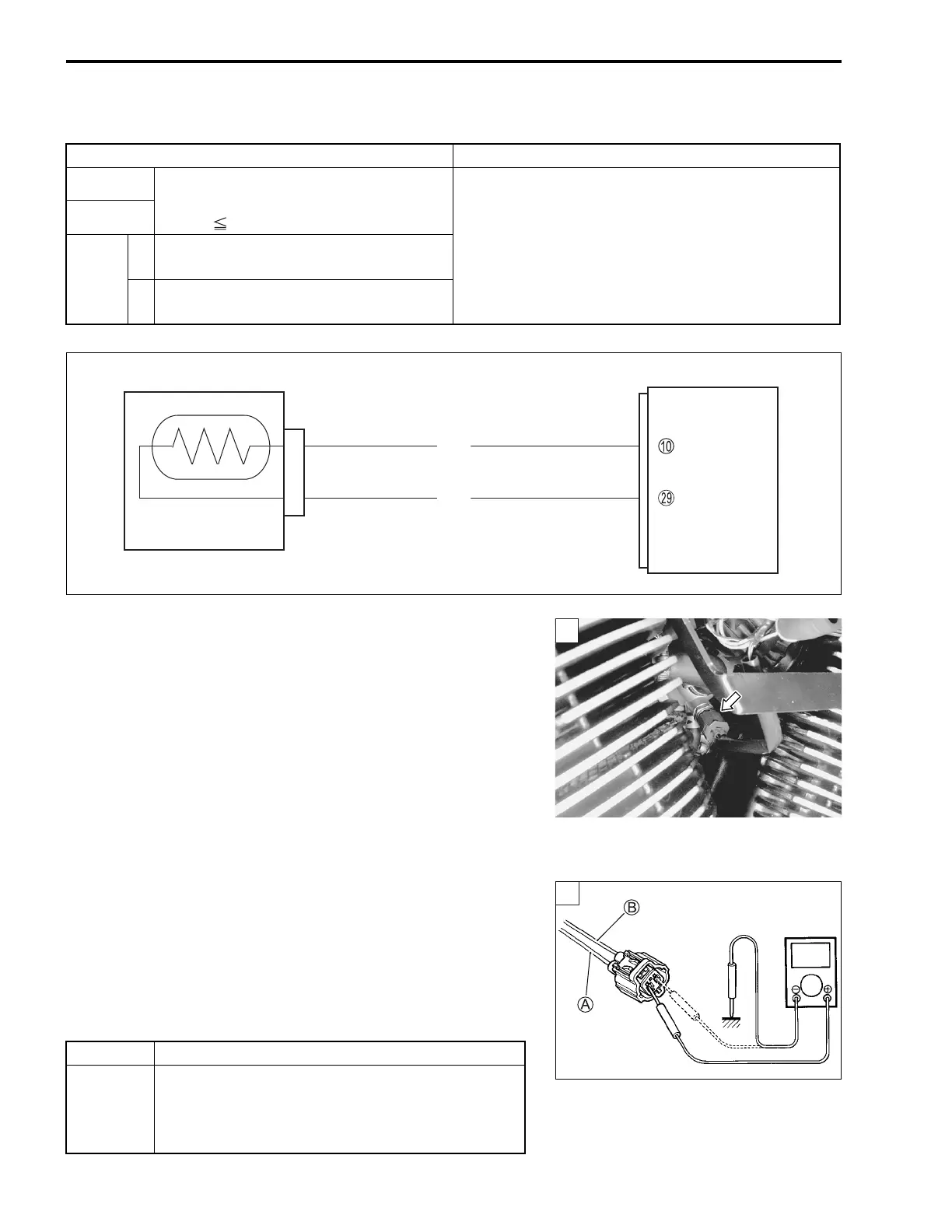

5-46 FI SYSTEM DIAGNOSIS
“C15” (P0115-H/L) ECT SENSOR CIRCUIT MALFUNCTION
INSPECTION
Step 1 (When indicating C15:)
1) Turn the ignition switch OFF.
2) Remove the right air cleaner box. (#6-13)
3) Check the ECT sensor coupler for loose or poor contacts.
If OK, then measure the ECT sensor voltage at the wire side
coupler.
4) Disconnect the coupler and turn the ignition switch ON.
5) Measure the voltage between B/Bl wire terminal A and
ground.
6) If OK, then measure the voltage between B/Bl wire terminal
A and B/Br wire terminal B.
$ ECT sensor voltage: 4.5 – 5.5 V
(+ B/Bl – - Ground)
(+ B/Bl – - B/Br)
! 09900-25008: Multi-circuit tester set
& Tester knob indication: Voltage (')
Is the voltage OK?
DETECTED CONDITION POSSIBLE CAUSE
C15 Output voltage is not within the following
range.
0.15 V Sensor voltage < 4.85 V
• ECT sensor circuit open or short
• ECT sensor malfunction
• ECM malfunction
P0115
P0115
H
Sensor voltage is higher than specified
value.
• ECT sensor circuit open or ground circuit open
• ECT sensor circuit shorted to ground
L
Sensor voltage is lower than specified
value.
YES Go to Step 2.
NO
• Loose or poor contacts on the ECM coupler
(terminal 0 or S).
• Open or short circuit in the B/Bl wire or B/Br
wire
ECM
E2
ECT
B/Br
ECT sensor
B/BI
1
V
1

Suzuki VZR1800 2008 Specifications

General

Displacement	1783 cc
Bore x Stroke	112.0 mm x 90.5 mm
Compression Ratio	10.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Inverted telescopic, coil spring, oil damped
Rear Suspension	Link type, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Engine Type	4-stroke, liquid-cooled, DOHC, V-twin
Front Tire	130/70R18M/C 63H
Overall Length	2485mm (97.8 inches)
Overall Height	1185 mm
Ground Clearance	140 mm (5.5 in)
Seat Height	705 mm
Curb Weight	347 kg
