January 2016
3-23
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
IQS 1
Image Quality
IQS 1 Solid Area Density
Documents
Test pattern: 82P524 and the solid area density scales, 82E8230 (SIR 542.00) or 82P448 (SIR
494.00).
Specification
Make a copy of the test pattern. Compare the copy with the solid area density scale. The den-
sity of the 1.0 areas on the copy of the test pattern, must be as dark or darker than the 0.8 ref-
erence on the solid area density scale. Refer to Figure 1.

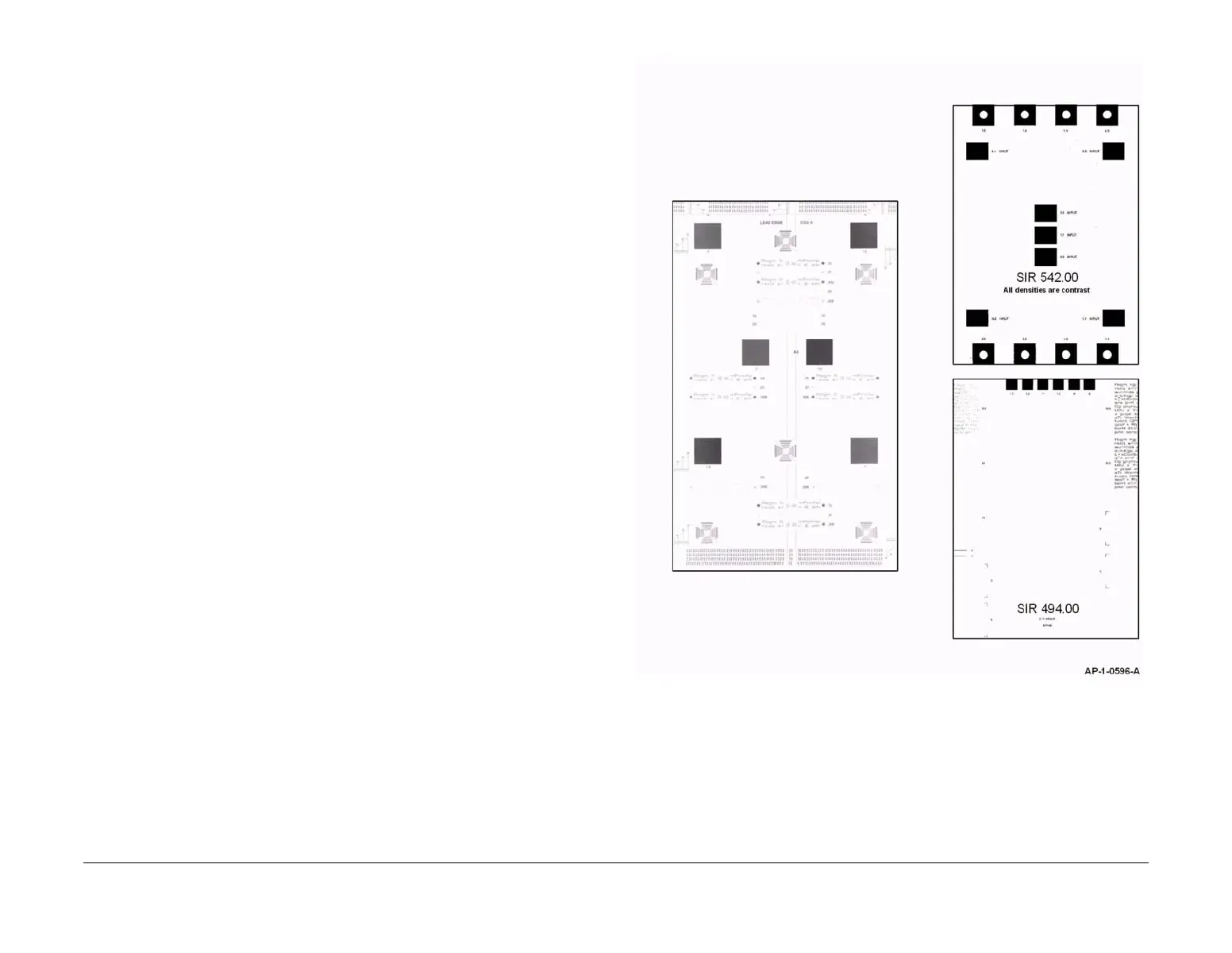

Figure 1 Solid area density
Corrective Action
Go to the IQ1 Image Quality Entry RAP.
To Next Page
