Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 2.14
Parts List

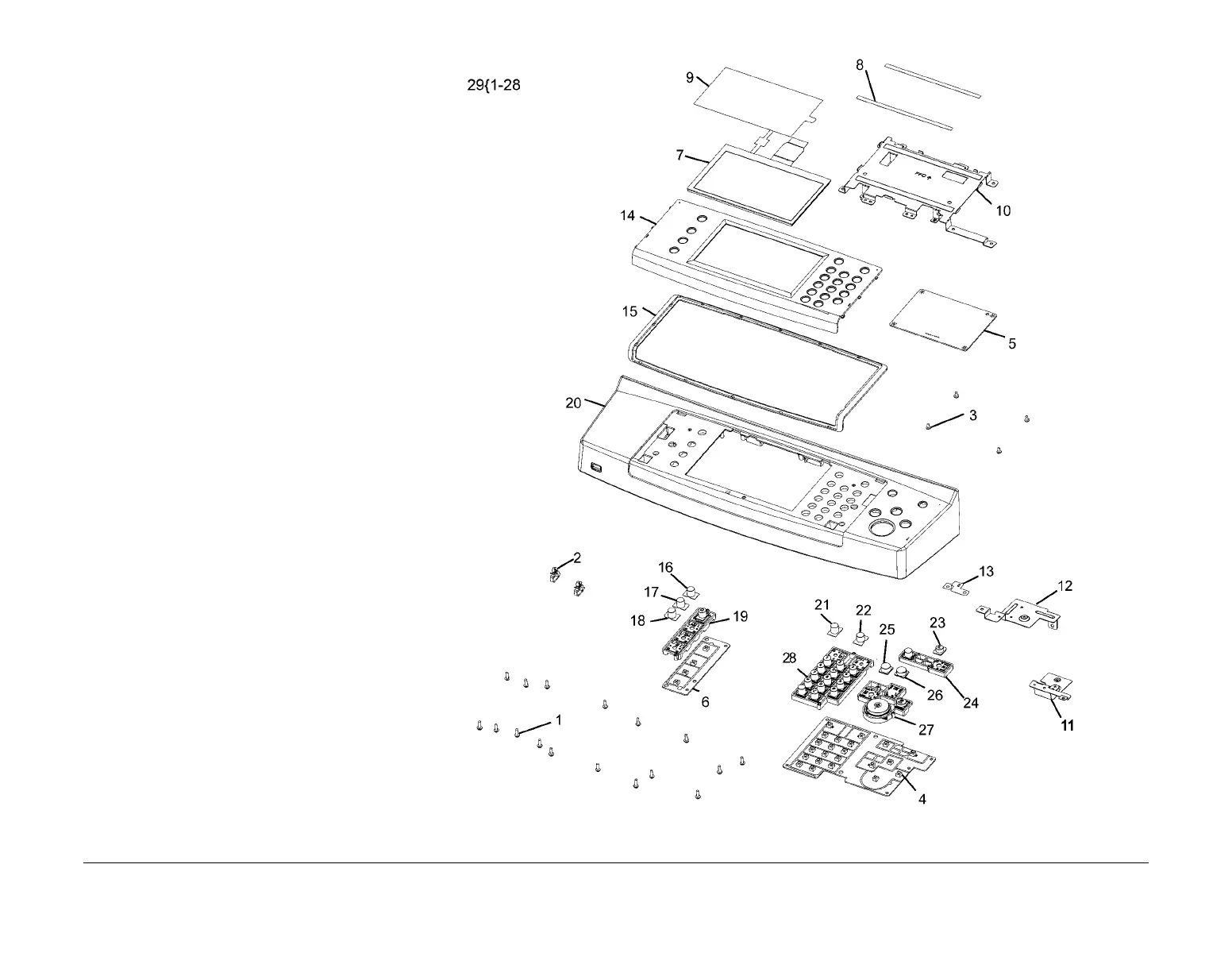

PL 2.14 User Interface (4265)
Item Part Description
1– Screw
2 – Saddle
3– Screw
4 140N63738 Key PWBA (REP 2.4)
5 140N63737 UI PWBA (REP 2.3)
6 140N63739 UI Sub PWBA (REP 2.5)
7 123N00270 LCD Display
8 – Tape
9 – LCD Film
10 – LCD Bracket
11 – UI Ground Bracket
12 – UI Left Ground Bracket
13 – UI Left Ground Plate
14 – UI Cover B
15 – UI Holder
16 – Service Key
17 056N00191 Job Status Key, PORT
– 056N00189 Job Status Key, FR
– 056N00190 Job Status Key, SP
18 – Machine Status Key
19 – Home Key
20 – UI Cover A
21 – Log In/Out Key
22 – Help Key
23 – Power Clear Key
24 – Language Key
25 – Interrupt Key
26 – Clear All Key
27 056N00192 Start Stop Key, FR
– 056N00194 Start Stop Key,
– 056N00193 Start Stop Key, SP
28 056N00186 Numerical Key, FR
– 056N00188 Numerical Key, PORT
– 056N00187 Numerical Key, SP
29 140N63736 User interface assembly (4265)
(REP 2.6)
30 002N03210 Language Overlay Labels (Not Shown)
30 Not Shown
(U.S. language is painted onto panel)
