Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 5.65
Parts List

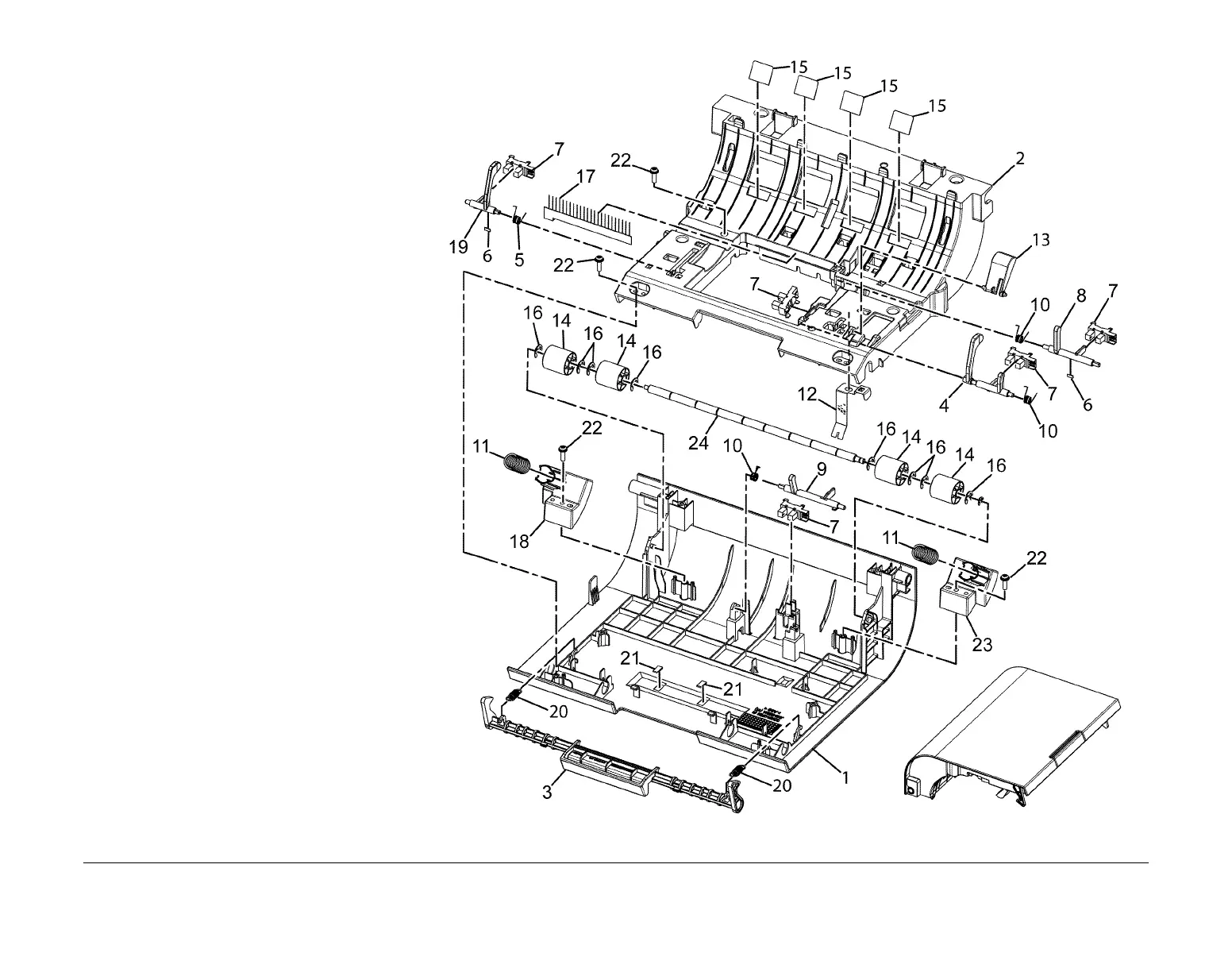

PL 5.65 DADF Assembly (3 of 4)
(4265)
Item Part Description
1 – Cover - Open
2 – Cover - Open Inner
3 – Cover - Open Handle
4 – Actuator Detect
5– Spring
6 – Sponge Actuator Damper
7 – Sensor (REP 5.16)
8 – Actuator Feed
9 – Actuator Regi
10 – Spring
11 – Spring
12 – Ground Regi
13 – Guide-M Doc Sensor
14 – Idle Roller
15 – Sheet Guide
16 – E-Ring
17 – Antistatic Brush
18 – Holder Registration Spring R
19 – Actuator Detect B
20 – Spring
21 – Damper DADF Upper
22 – Screw
23 – Holder Registration Spring L
24 – Idle Shaft Registration
