Xerox WorkCentre 4150 Service Manual

January 2016
4-178
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 12.9
Repairs and Adjustments
REP 12.9 Stacker Drive Components
Parts List on PL 12.45
Purpose
This procedure is used to repair the following components:
NOTE: Only perform the steps that are necessary to repair the damaged component.
• Stacker tray motor, PL 12.45 Item 20.
• Gear 35T, PL 12.45 Item 15.
• Pinion gear, PL 12.45 Item 17.
• Worm gear, PL 12.45 Item 22.
• Worm wheel, PL 12.45 Item 24.
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Remove the Finisher, REP 12.1.
2. Remove the Front Door Assembly and Rear Cover, REP 12.4.
3. Remove the Tray Support, PL 12.45 Item 2.
4. Remove the Left Cover, refer to REP 12.2.
5. Disconnect the Stacker Tray Motor inline connector, Figure 1.

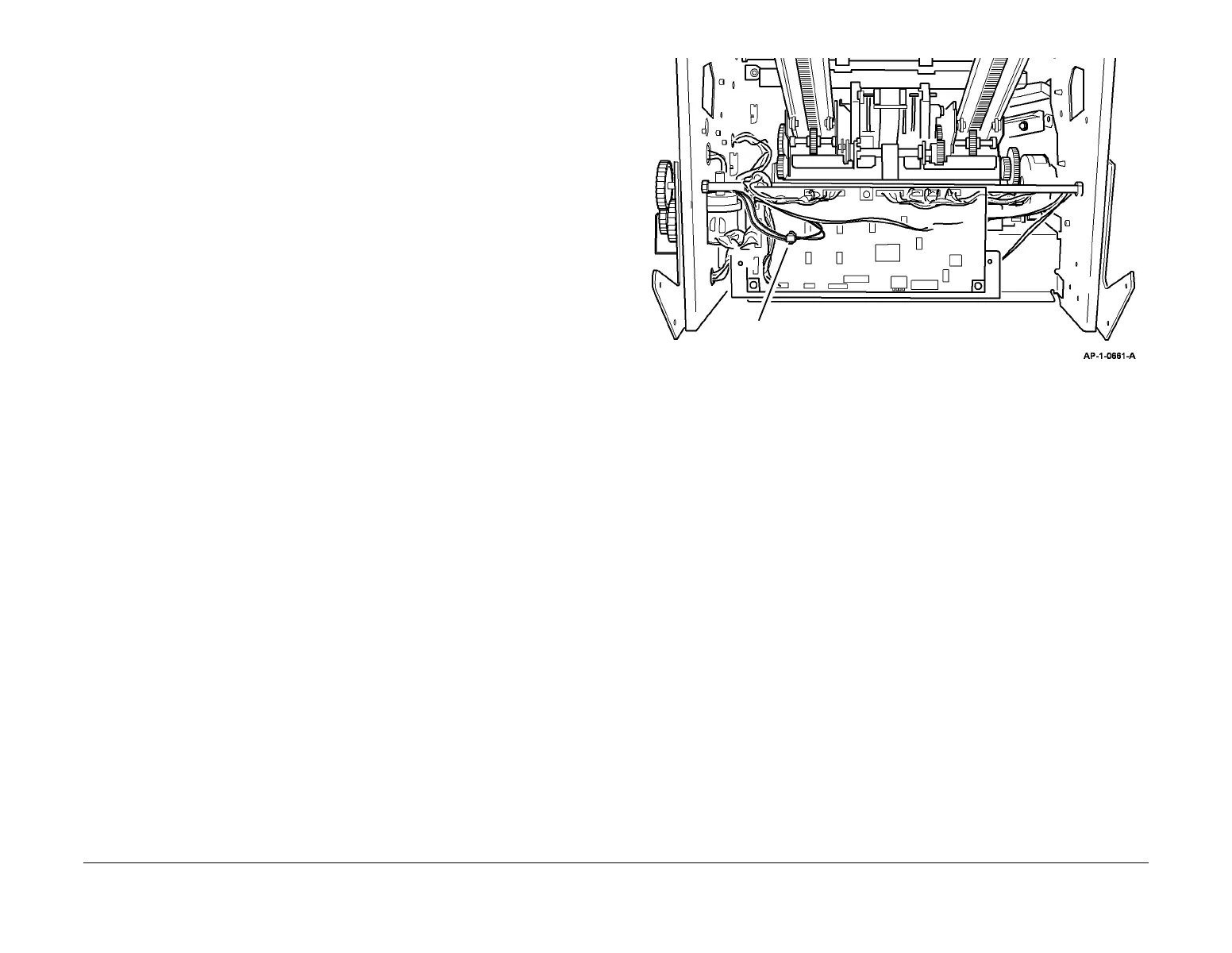

Figure 1 Inline connector
1
Disconnect the Stacker Tray inline connector.
