Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 4.25
Parts List

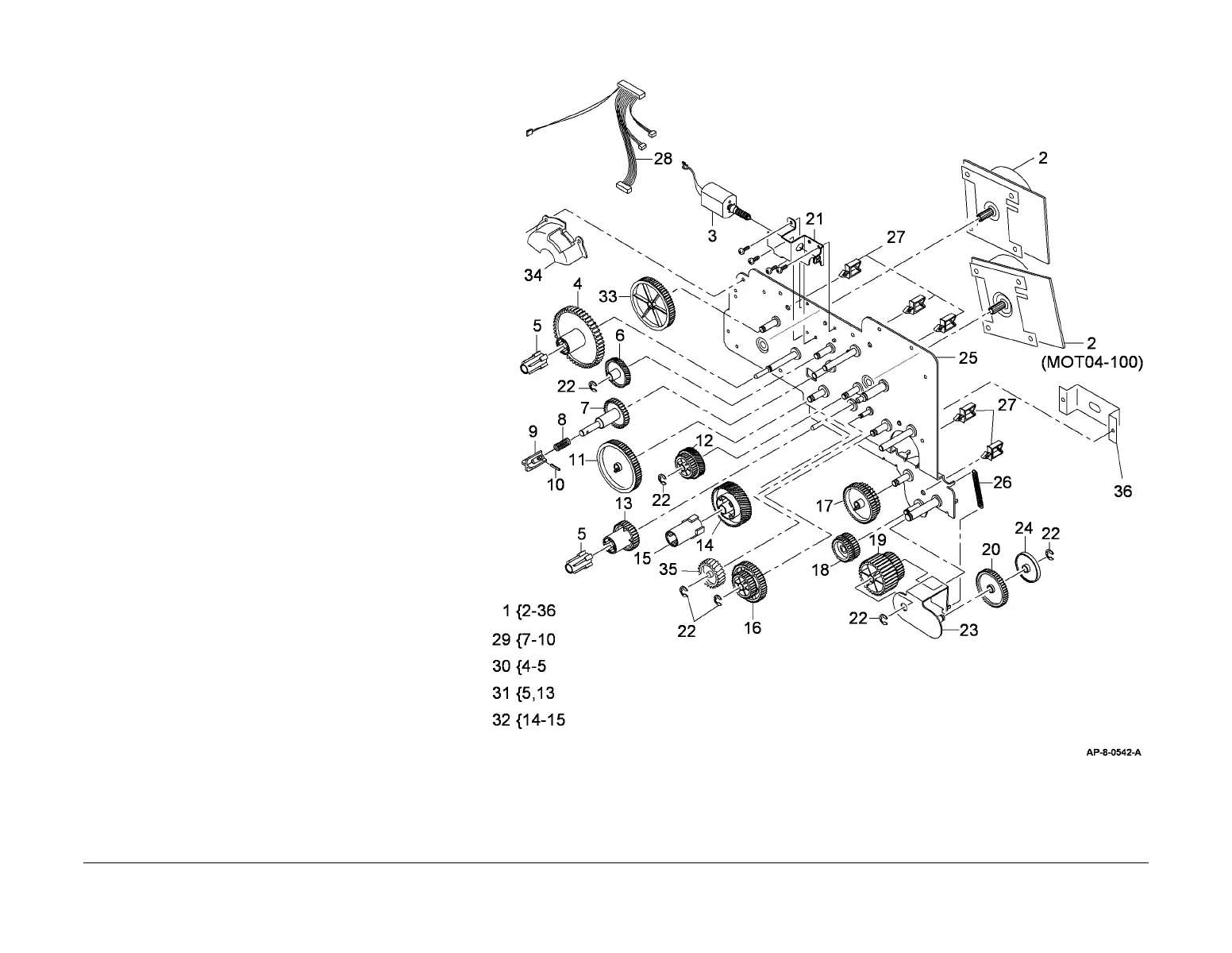

PL 4.25 Drives Assembly
(4250/4260/4265)
Item Part Description
1 002N03207 Main drive assembly (REP 4.3)
2 127N07588 Main BLDC motor (MOT04-100),
Developer drive motor
3 127N07587 Toner dispense motor
(MOT09-600) (REP 9.1)
4 – Agitator gear (P/O PL 4.25 Item 30)
5 – Coupling (P/O PL 4.25 Item 30, PL
4.25 Item 31)
6 007N01500 Idler gear
7 – Dispense idler gear (P/O PL 4.25
Item 29)
8 – Spring (P/O PL 4.25 Item 29)
9 – Toner coupling (P/O PL 4.25 Item
29)
10 – Pin (P/O PL 4.25 Item 29)
11 007N01501 Agitator Idler gear
12 007N01502 Registration Idler gear (A)
13 – Mixer gear (P/O PL 4.25 Item 31)
14 007N01504 Xerographic module base gear
15 – Coupling (P/O PL 4.25 Item 32)
16 007N01616 Registration Idler gear (B)
17 007N01617 Pickup idler gear (A)
18 007N01618 Bypass idler gear (A)
19 – Bypass idler gear (B) (P/O PL 4.25
Item 1) (4250/4260)
– 007N01508 Bypass idler gear (B) (4265)
20 – Duplex idler gear (P/O PL 4.25 Item
1) (4250/4260)
– 007N01509 Duplex idler gear (4265)
21 – Bracket (P/O PL 4.25 Item 1)
22 – E-Clip (Not Spared)
23 – Swing bracket (P/O PL 4.25 Item 1)
24 – Collar (P/O PL 4.25 Item 1)
25 – Main bracket (P/O PL 4.25 Item 1)
26 – Spring (P/O PL 4.25 Item 1)
27 – Cable clamp (P/O PL 4.25 Item 1)
28 – Harness (P/O PL 4.25 Item 1)
29 007N01516 Toner dispense gear assembly
30 – Agitator gear assembly (P/O PL
4.25 Item 1) (4250/4260)
– 007N01499 Agitator gear assembly (4265)
31 007N01503 Mixer gear assembly
32 – Xerographic module base gear
assembly (P/O PL 4.25 Item 1)
33 007N01619 Transfer gear
34 – Transfer gear cover (P/O PL 4.25
Item 1)
35 – Gear (P/O PL 4.25 Item 1)
36 – Bracket (P/O PL 4.25 Item 1)
