Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 7.55
Parts List

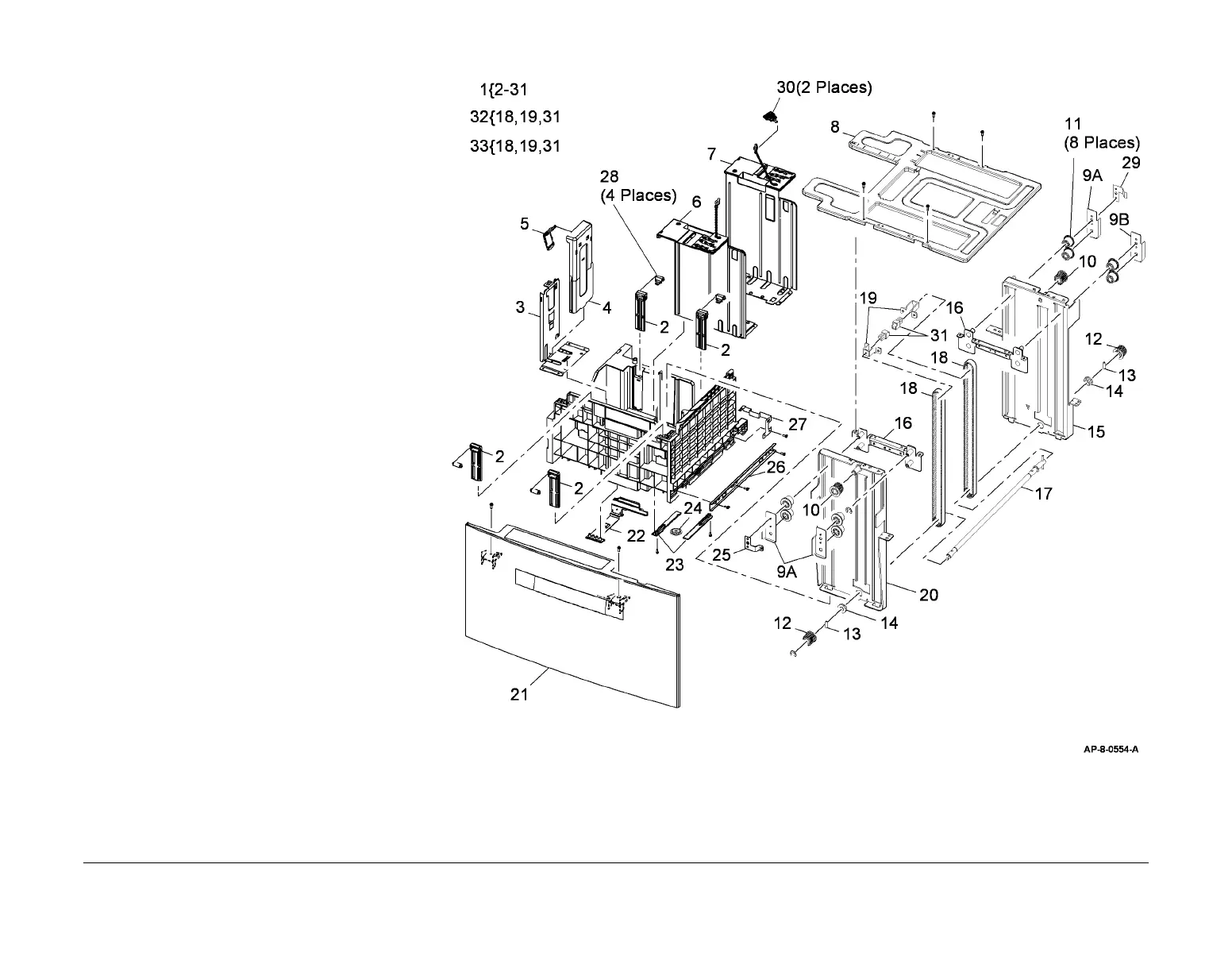

PL 7.55 HCF (3 of 5)
Item Part Description
1 050N00538 HCF tray
2 009N01644 Guide spring
3 – Left paper guide bracket (P/O PL
7.55 Item 1)
4 002N02864 Left paper guide cover
5 002N02865 Hook
6 – Front paper guide (P/O PL 7.55
Item 1)
7 – Rear paper guide (P/O PL 7.55
Item 1)
8 – Knock up plate (P/O PL 7.55 Item
1)
9 – Idler bracket (9A), Paper level
sensor actuator (9B) (P/O PL 7.55
Item 1)
10 – Gear (P/O PL 7.55 Item 1)
11 – Idler (P/O PL 7.55 Item 1)
12 – Gear (P/O PL 7.55 Item 1)
13 – Pin (P/O PL 7.55 Item 1)
14 – Bearing (P/O PL 7.55 Item 1)
15 – Rear lift plate (P/O PL 7.55 Item 1)
16 – Bracket (P/O PL 7.55 Item 1)
17 – Drive shaft (P/O PL 7.55 Item 1)
18 023N01192 Belt
19 – Bracket (P/O PL 7.55 Item 32, PL
7.55 Item 33)
20 – Front lift plate (P/O PL 7.55 Item 1)
21 – Front cover (P/O PL 7.55 Item 1)
22 – Sub support bar (P/O PL 7.55 Item
1)
23 – Rack gear (P/O PL 7.55 Item 1)
24 – Pinion gear (P/O PL 7.55 Item 1)
25 – Ground strip (P/O PL 7.55 Item 1)
26 – Slide assembly (P/O PL 7.55 Item
1)
27 – Ground strip (P/O PL 7.55 Item 1)
28 009N01643 Spring roll
29 – Ground strip (P/O PL 7.55 Item 1)
30 029N00399 Paper size lock
31 – Clamp (P/O PL 7.55 Item 32, PL
7.55 Item 33)
32 023N01191 Rear belt clamp assembly
33 023N01193 Front belt clamp assembly
