REP 8.6
Repairs and Adjustments
REP 8.6 Bypass Tray Feed Roll Assembly
Parts List on PL 8.20
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Remove the paper transport assembly, REP 8.3.
2. Remove the bypass tray retard assembly, REP 8.5
3. Remove the feed roll assembly support spring, Figure 1.

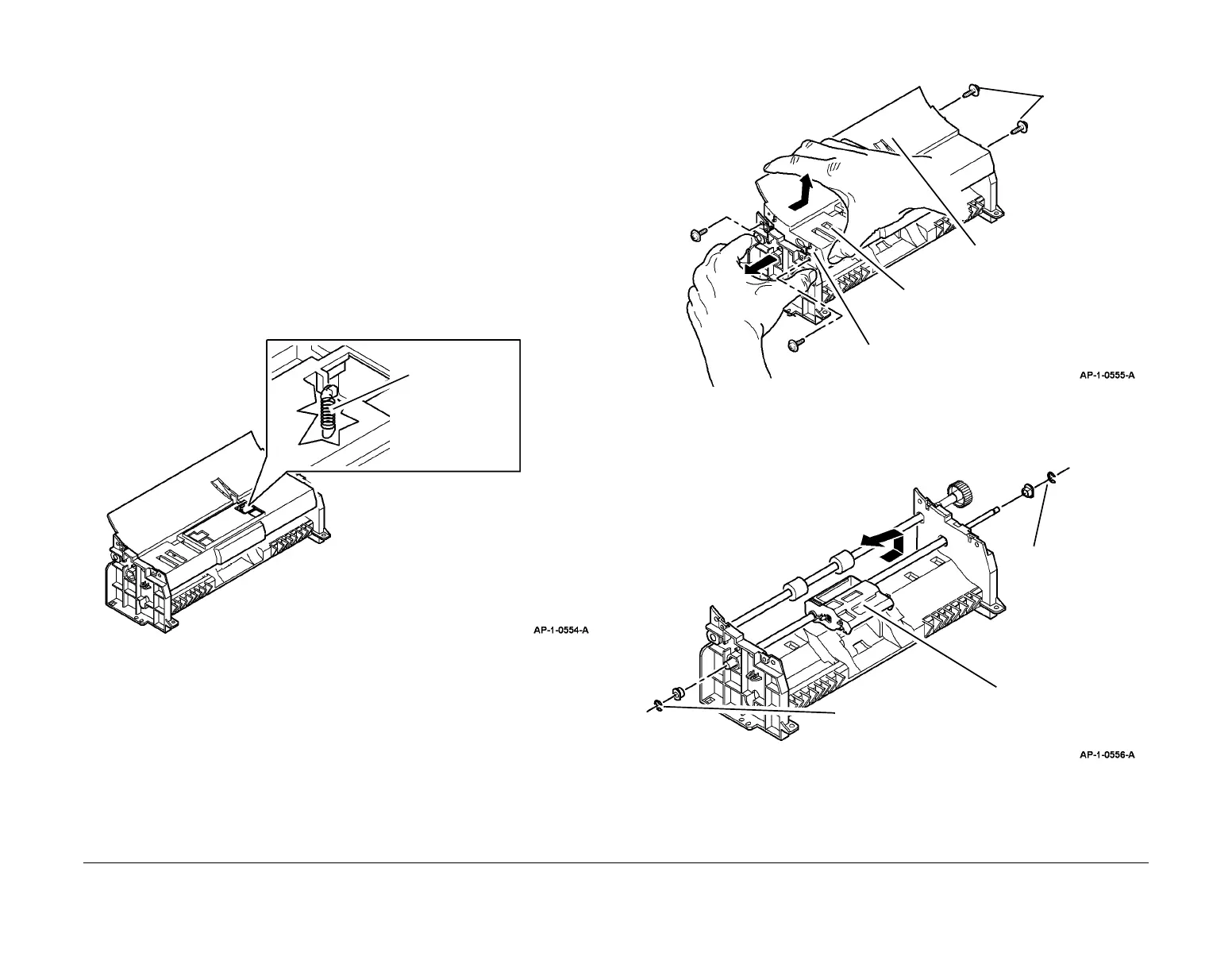

Figure 1 Spring Removal
4. Remove the paper transport upper guide, Figure 2.
Figure 2 Upper Guide Removal
5. Remove the feed roll assembly, Figure 3.
Figure 3 Feed Roll Removal
1
Remove the
spring.
1
Remove 4
screws.
2
Unclip the upper guide (4 places).
3
Disconnect the connector.
4
Remove the upper guide.
1
Remove E-clip and
bearing.
2
Remove E-clip and
bearing.
3
Remove the feed roll
assembly.
