Xerox WorkCentre 4150 Service Manual

January 2016
4-195
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 14.6
Repairs and Adjustments
REP 14.6 Platen Pulley (4265)
Parts List on PL 14.16
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the Scanner Motor (REP 14.5).
2. Remove the long timing belt from the Platen Pulley (Figure 1).

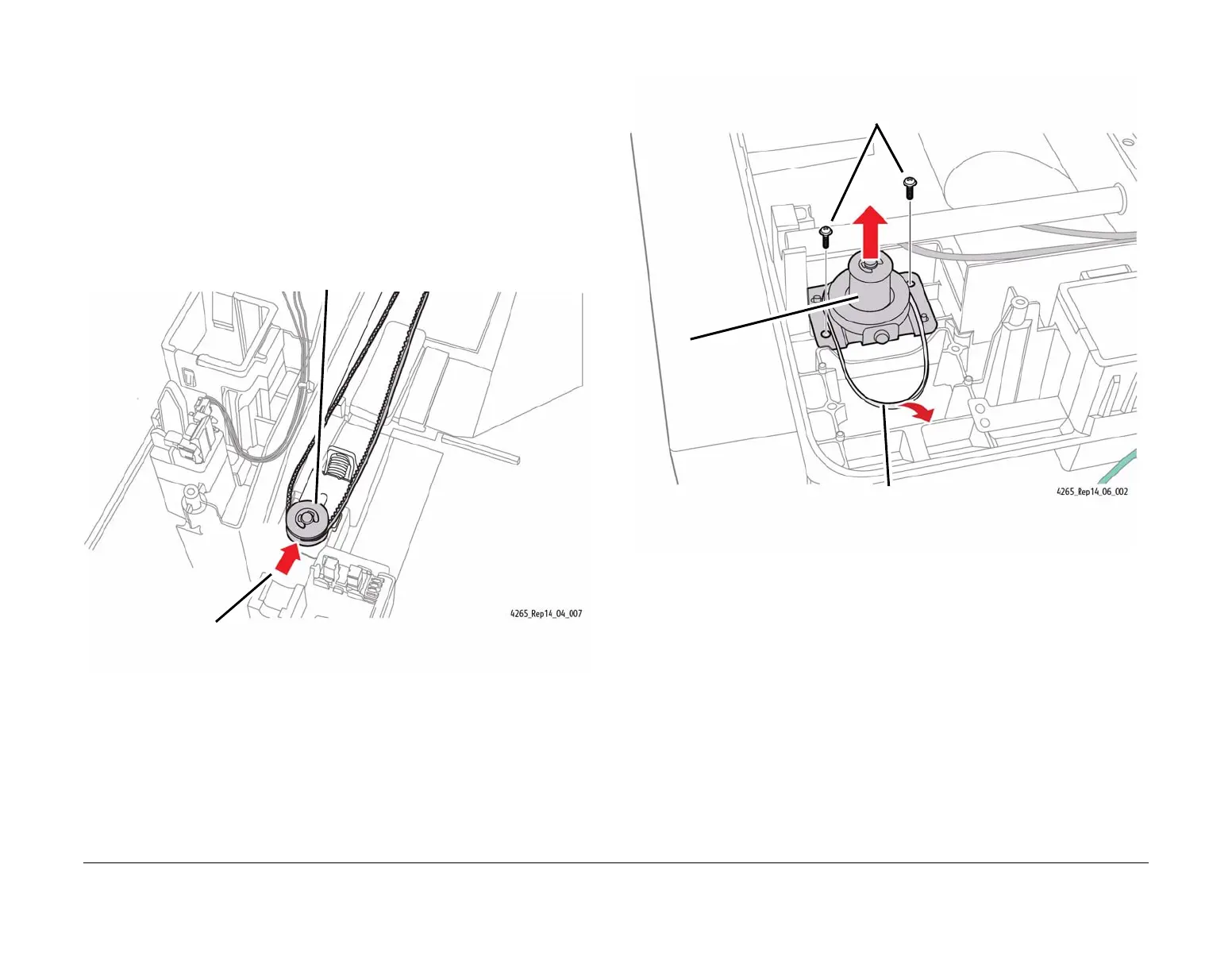

Figure 1 Removing the Long Timing Belt
3. Remove the Platen Pulley (Figure 2):
Figure 2 Removing the Platen Pulley
Replacement
1. Reinstallation is the reverse of the Removal procedure.
1
Press inward on the Platen Pulley Assembly to
release the belt tension on the belt.
2
Remove the belt from the
two pulleys.
1
Remove the short timing belt
from the Platen Pulley.
2
Remove the two mounting screws.
3
Remove the
Platen Pulley.
