Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 10.26
Parts List

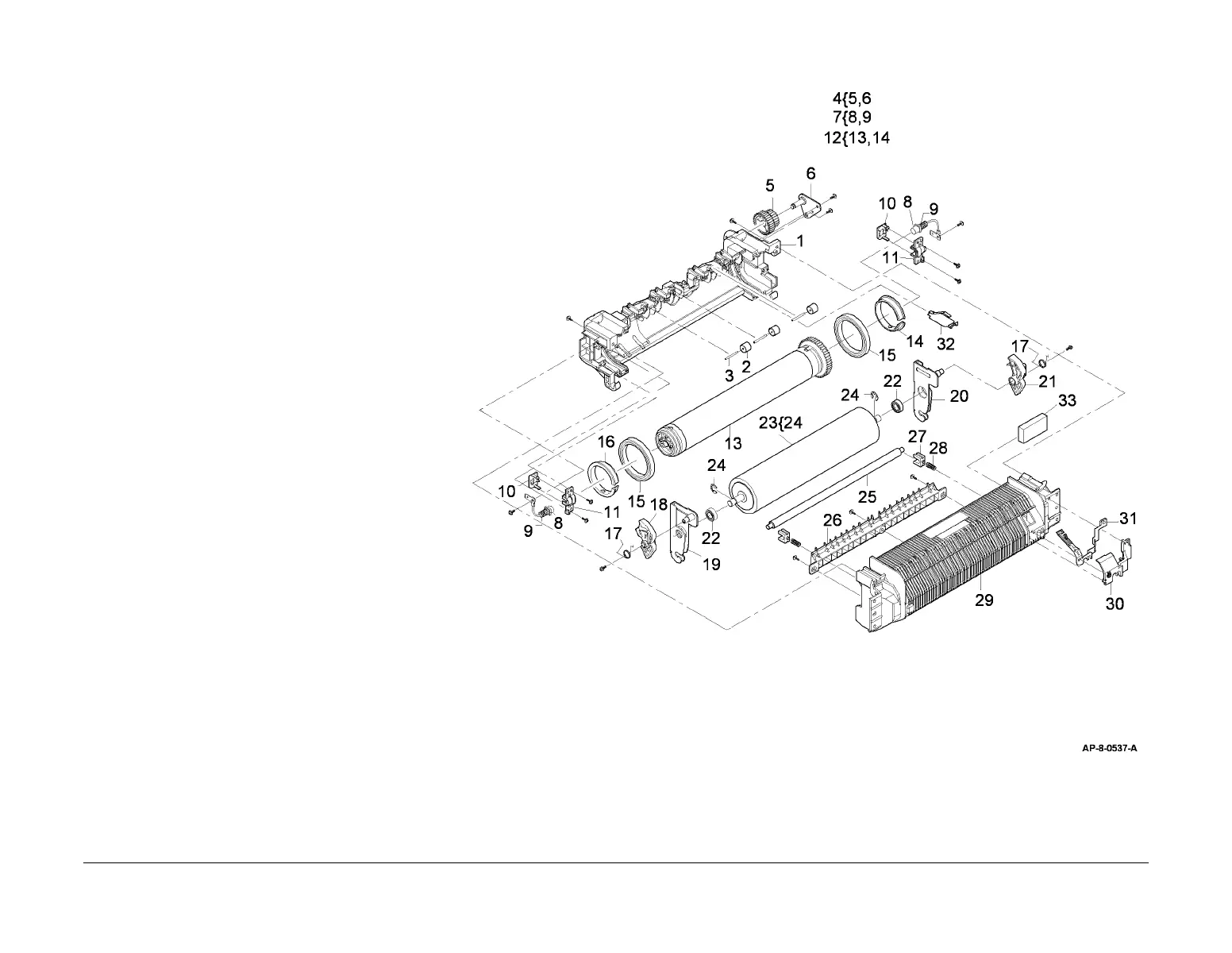

PL 10.26 Fuser (2 of 2) (4150)
Item Part Description
1 – Fuser cover (P/O PL 10.25 Item 1)
2 – Roll (P/O PL 10.25 Item 1)
3– Pin (P/O PL 10.25 Item 1)
4 030N00720 Gear and bracket assembly
5 – Gear (P/O PL 10.26 Item 4)
6 – Bracket (P/O PL 10.26 Item 4)
7 115N00862 Carbon brush assembly (REP 10.5)
8 – Carbon brush (P/O PL 10.26 Item
7)
9 – Spring (P/O PL 10.26 Item 7)
10 – Lower brush cover (P/O PL 10.25
Item 1)
11 – Upper brush cover (P/O PL 10.25
Item 1)
12 022N02233 Heat roller assembly (See Note 1
and Note 2) (REP 10.5)
13 – Heat roller (P/O PL 10.26 Item 12)
14 – Heat roller collar (P/O PL 10.26
Item 12)
15 013N13866 Bearing (REP 10.5)
16 016N00295 Heat roller collar (See Note 2)
17 – Spring (P/O PL 10.25 Item 1)
18 – Jam lever LH (P/O PL 10.25 Item 1)
19 – Bracket (P/O PL 10.25 Item 1)
20 – Bracket (P/O PL 10.25 Item 1)
21 – Jam lever RH (P/O PL 10.25 Item
1)
22 013N13847 Bearing (REP 10.5)
23 022N02273 Pressure roller (See Note 1)
24 – E-clip (Not Spared)
25 006N01330 Cleaning shaft (REP 10.5)
26 – Input guide (P/O PL 10.25 Item 1)
27 – Pressure bearing (P/O PL 10.25
Item 1)
28 – Spring (P/O PL 10.25 Item 1)
29 – Fuser cover (P/O PL 10.25 Item 1)
30 – Ground strip cover (P/O PL 10.25
Item 1)
31 – Ground strip (P/O PL 10.25 Item 1)
32 – Ground strip (P/O PL 10.25 Item 1)
33 – Cleaning felt (P/O PL 10.25 Item 1)
NOTE: 1. HFSI. To reset the HFSI count, go to GP 16. 2. If a
new heat roller assembly is installed, also install a new heat
roller collar, PL 10.26 Item 16.
