Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 5.25
Parts List

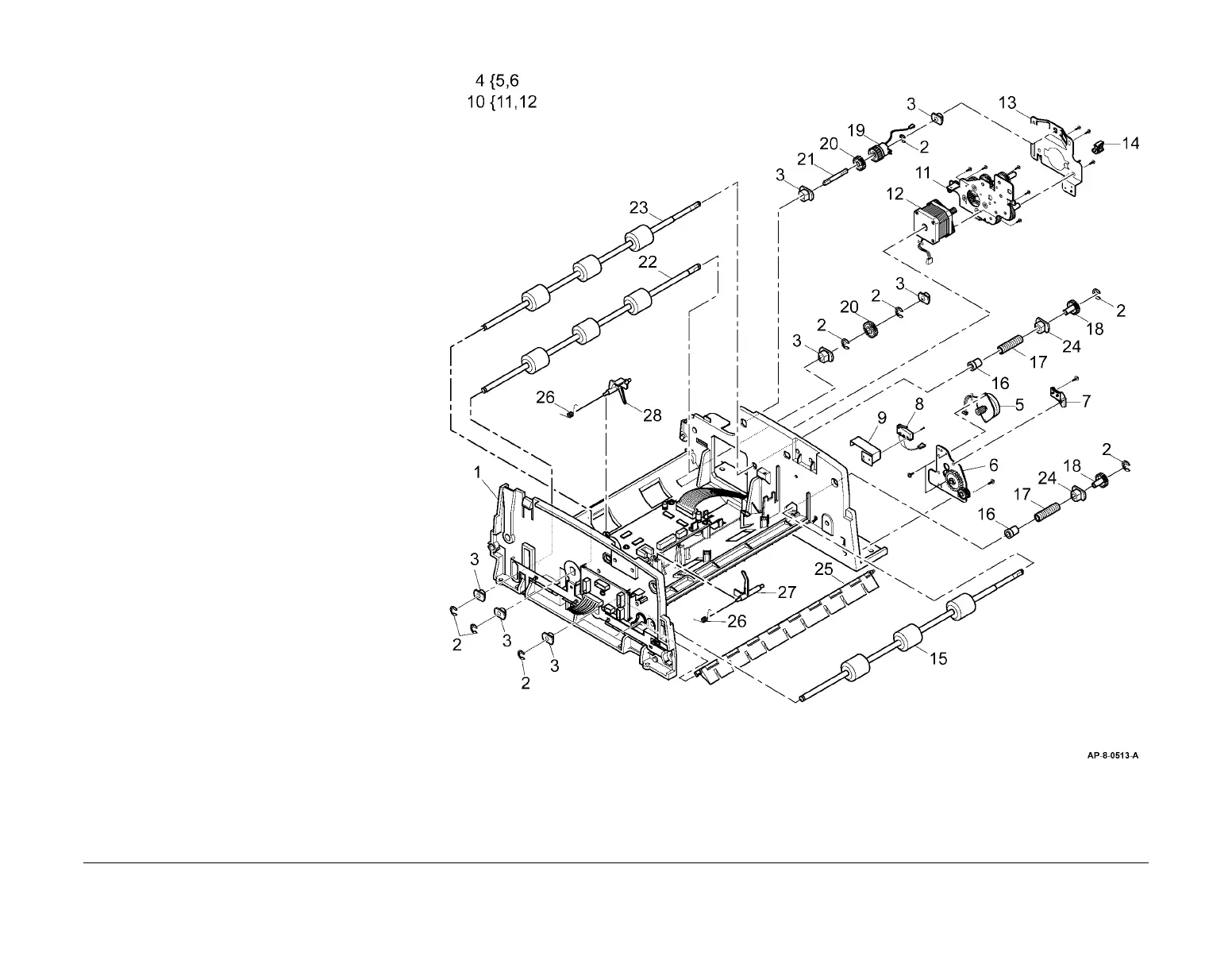

PL 5.25 DADF Assembly (4 of 4)
(4150)
Item Part Description
1 – Transport assembly (REF: PL 5.10
Item 2)
2 – E-clip (Not Spared)
3 – Bearing (P/O PL 5.25 Item 1)
4 127N07500 DADF duplex motor assembly
(REP 5.1)
5 – Duplex motor (MOT05-210) (P/O
PL 5.25 Item 4)
6 – Duplex bracket (P/O PL 5.25 Item
4)
7 – Switch bracket (P/O PL 5.25 Item
1)
8 152N11715 DADF door open switch (S05-160)
9 – Switch guard (P/O PL 5.25 Item 1)
10 127N07498 DADF Scan motor assembly (REP
5.1)
11 – Gear assembly (P/O PL 5.25 Item
10)
12 127N07497 DADF scan motor (MOT05-200)
(REP 5.1)
13 – Drive gear cover (P/O PL 5.25 Item
1)
14 – Harness clip (P/O PL 5.25 Item 1)
15 – Gate roll (P/O PL 5.25 Item 1)
16 – Bush holder (P/O PL 5.25 Item 1)
17 009N01605 Spring clutch
18 007N01524 Gear
19 – Registration clutch (CL05-310)
(P/O PL 5.10 Item 1)
20 007N01557 Gear (REP 5.1)
21 006N01300 Clutch shaft (REP 5.1)
22 – Duplex roll (P/O PL 5.25 Item 1)
23 – Scan roll (P/O PL 5.25 Item 1)
24 – Roll bearing (P/O PL 5.25 Item 1)
25 050N00500 Duplex gate (REP 5.1)
26 – Spring (P/O PL 5.25 Item 1)
27 – Actuator (P/O PL 5.25 Item 1)
28 – Actuator (P/O PL 5.25 Item 1)
