Xerox WorkCentre 4150 Service Manual

January 2016
4-127
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 8.1
Repairs and Adjustments
REP 8.1 Side Cover Assembly
Parts List on PL 7.30
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Remove the rear cover, PL 28.10 Item 6.
2. Open the side cover assembly, PL 7.30 Item 1.
3. Remove the Bypass Feed Clutch and the cable clamp (Figure 1).

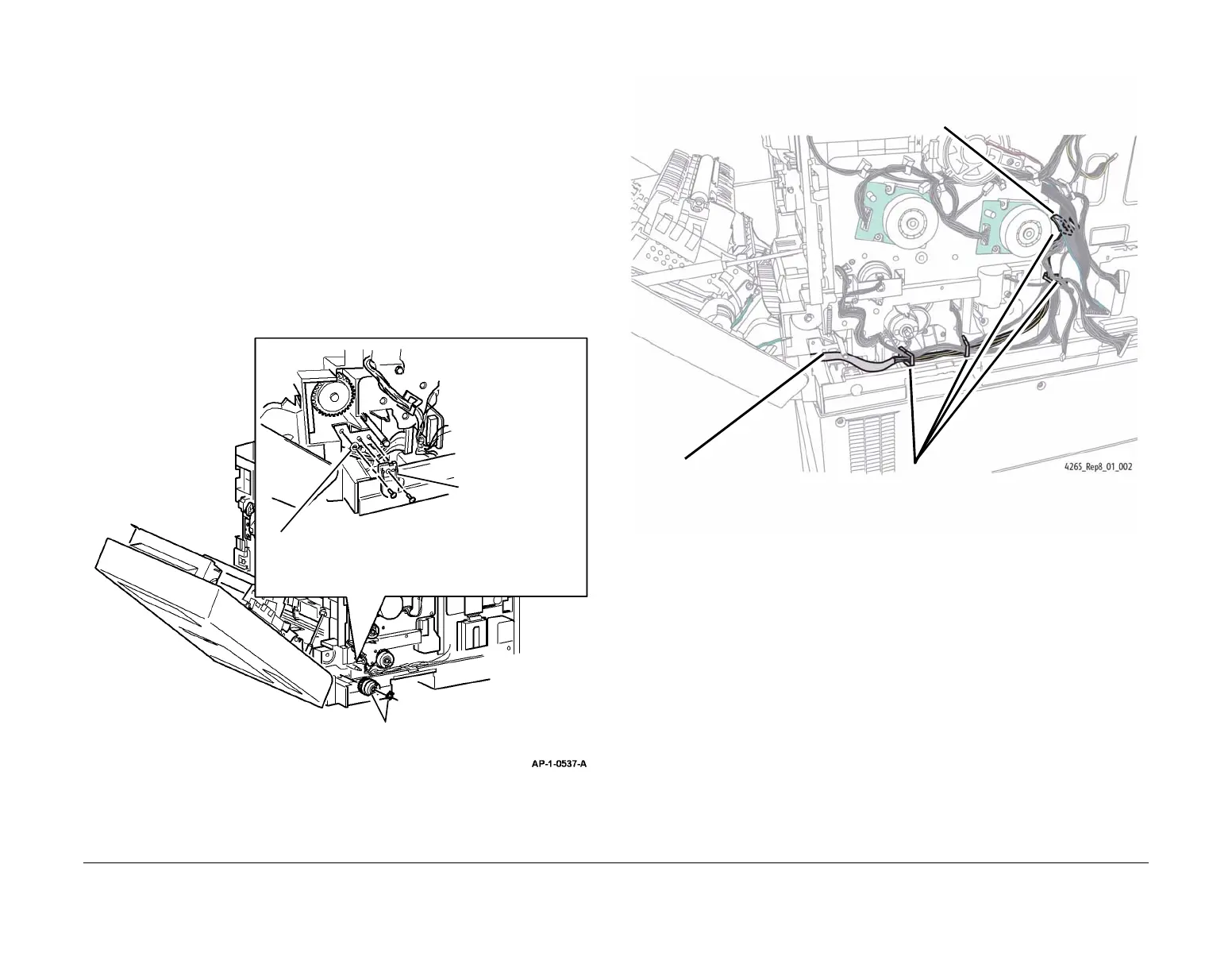

Figure 1 Removing the Bypass Feed Clutch and Cable Clamp
4. Prepare to remove the Side Cover Assembly (Figure 2).
Figure 2 Preparing to Remove the Side Cover Assembly
1
Remove the KL-clip, then the
bypass feed clutch.
3
Remove the cable
clamp.
2
Disconnect the ground
harness by removing the
screw.
2
Disconnect the wire harness con-
nector from the Main PWB.
1
Route the wire harness out
of the four cable clips.
Side Cover Assembly
wire harness
3
Route the wire harness out
the side of the machine.
