Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 14.10
Parts List

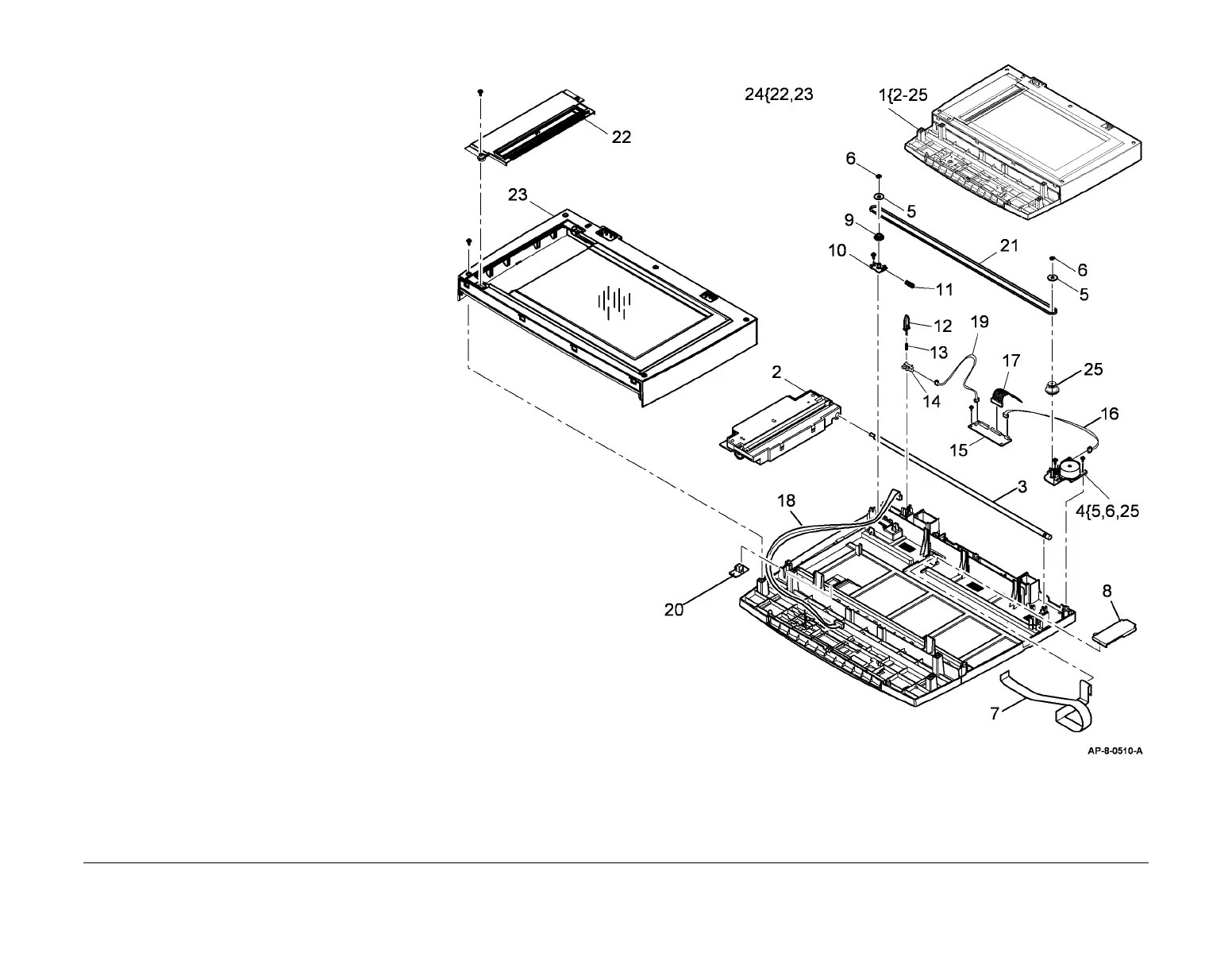

PL 14.10 Scanner Module and
CVT/Document Glass (4150)
Item Part Description
1 002N02559 Scanner assembly (REP 14.1)
2 101N01399 CCD module (REP 14.2)
3 – Shaft (P/O PL 14.10 Item 1)
4 127N07496 Scan motor assembly (REP 14.2)
5 – Sheave (P/O PL 14.10 Item 4)
6 – E-clip (Not Spared)
7 109N00656 CCD ribbon cable (REP 14.2)
8 – Ribbon cable cover (P/O PL 14.10
Item 1)
9 020N00830 Drive belt pulley (REP 14.2)
10 – Pulley seat (P/O PL 14.10 Item 1)
11 009N01616 Pulley spring
12 – Platen cover sensor actuator (P/O
PL 14.10 Item 1) (REP 14.2)
13 – Spring (P/O PL 14.10 Item 1)
14 130N01274 Platen cover sensor (Q05-400)
(REP 14.2)
15 140N63149 Scanner PWB (REP 14.2)
16 – Drive motor harness (P/O PL 14.10
Item 1)
17 152N11716 Scanner harness
18 152N11717 GUI harness (P/O PL 14.10 Item 1)
19 – Platen cover sensor harness (P/O
PL 14.10 Item 1)
20 – Scanner lock switch (P/O PL 14.10
Item 1)
21 023N00954 Scanner drive belt (REP 14.2)
22 002N02582 CVT glass assembly
23 – Scanner top cover (P/O PL 14.10
Item 24) (REP 14.2)
24 002N02581 Scanner top cover assembly (REP
14.2)
25 007N01537 Timing gear (REP 14.2)
