Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 5.70
Parts List

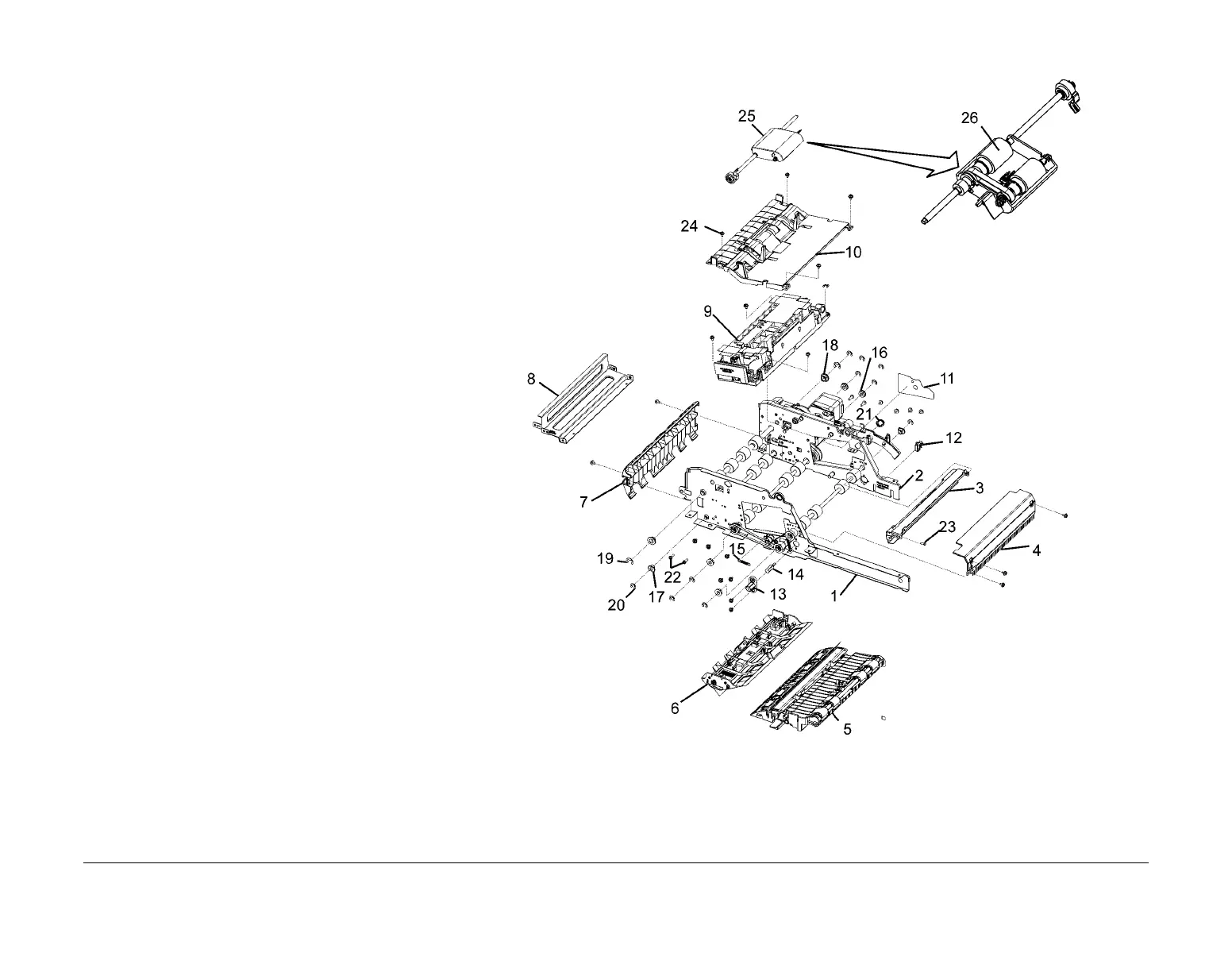

PL 5.70 DADF Assembly (4 of 4)
(4265)
Item Part Description
1 – Frame- Front
2 – Frame-Rear
3 – Frame-Bridge Exit
4 – DADF-Exit UP
5 – DADF-Guide Exit Lower
6 – DADF- Guide Feed IN
7 – Guide Regi
8 – Frame Bridge
9 062N00294 DADF-CCDM
10 – DADF-Guide Pick UP
11 – Sheet Frame-Rear
12 – Saddle
13 – Holder-Damper
14 – Damper-Guide Pickup
15 – Spring-ES
16 – Bearing Ball
17 016N00294 Bush-6 D
18 016N00293 Bush-8/5
19 – Ring-E
20 – Ring-E
21 – Gasket-Harness
22 – Screw-Taptype
23 – Screw-Machine
24 – Screw-HEX
25 130N01730 DADF-PICK UP
26 022N02768 DADF-PICK UP Roller
