January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 6.10
Parts List

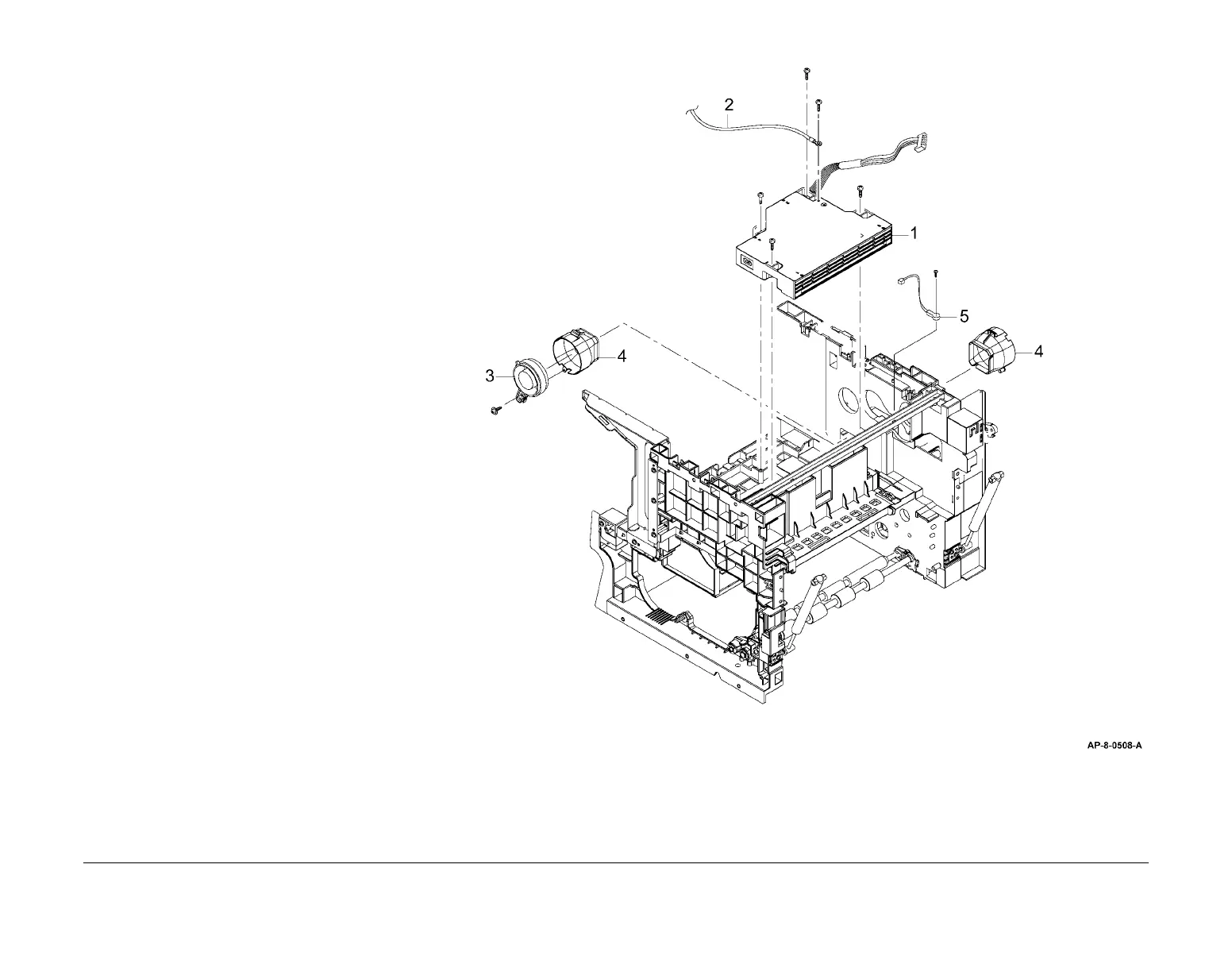

PL 6.10 LSU
Item Part Description
1 122N00289 LSU (4150/4250) (REP 6.1)
122N00288 LSU (4260/4265)
2 – Ground harness (Not Spared)
3 127N07486 LSU fan (REP 6.2)
4 – LSU fan duct (Not Spared)
5 130N01531 LSU thermistor (4250/4260)
