PL 5.40
Parts List

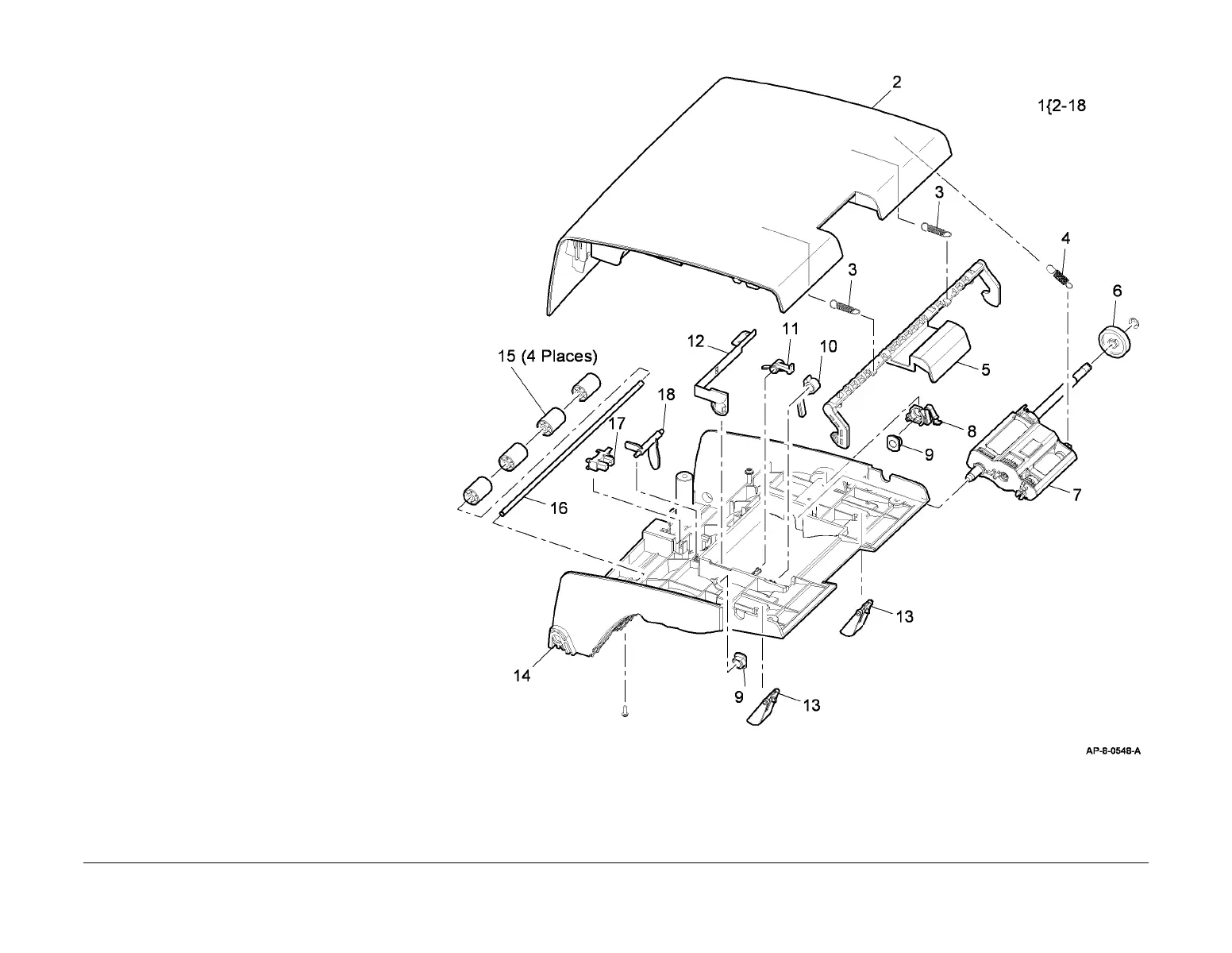

PL 5.40 DADF Assembly (4 of 7)
(4250/4260)
Item Part Description
2 002N02863 Top cover
3 – Release latch spring (P/O PL 5.30
Item 26)
4 – Pickup assembly spring (P/O PL
5.30 Item 26)
5 – Release latch (P/O PL 5.30 Item
26)
6 – Gear (P/O PL 5.30 Item 26)
7 130N01551 Feed roll assembly (See Note)
8 – Retaining clip (P/O PL 5.30 Item
26)
9 – Bearing (P/O PL 5.30 Item 26)
10 – Feed gate (P/O PL 5.30 Item 26)
11 – Link arm (P/O PL 5.30 Item 26)
12 – Ground strip (P/O PL 5.30 Item 26)
13 – Guide flap (P/O PL 5.30 Item 26)
14 – Top cover assembly housing (P/O
PL 5.30 Item 26)
15 – CVT roll upper idler (P/O PL 5.30
Item 26)
16 – Feed idler shaft (P/O PL 5.30 Item
26)
17 130N01274 Registration sensor (Q05-130)
18 – Registration sensor actuator (P/O
PL 5.30 Item 26)
NOTE: HFSI. To reset the HFSI count, go to GP 16.
1 002N02817 Top Cover assembly
