January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 28.10
Parts List

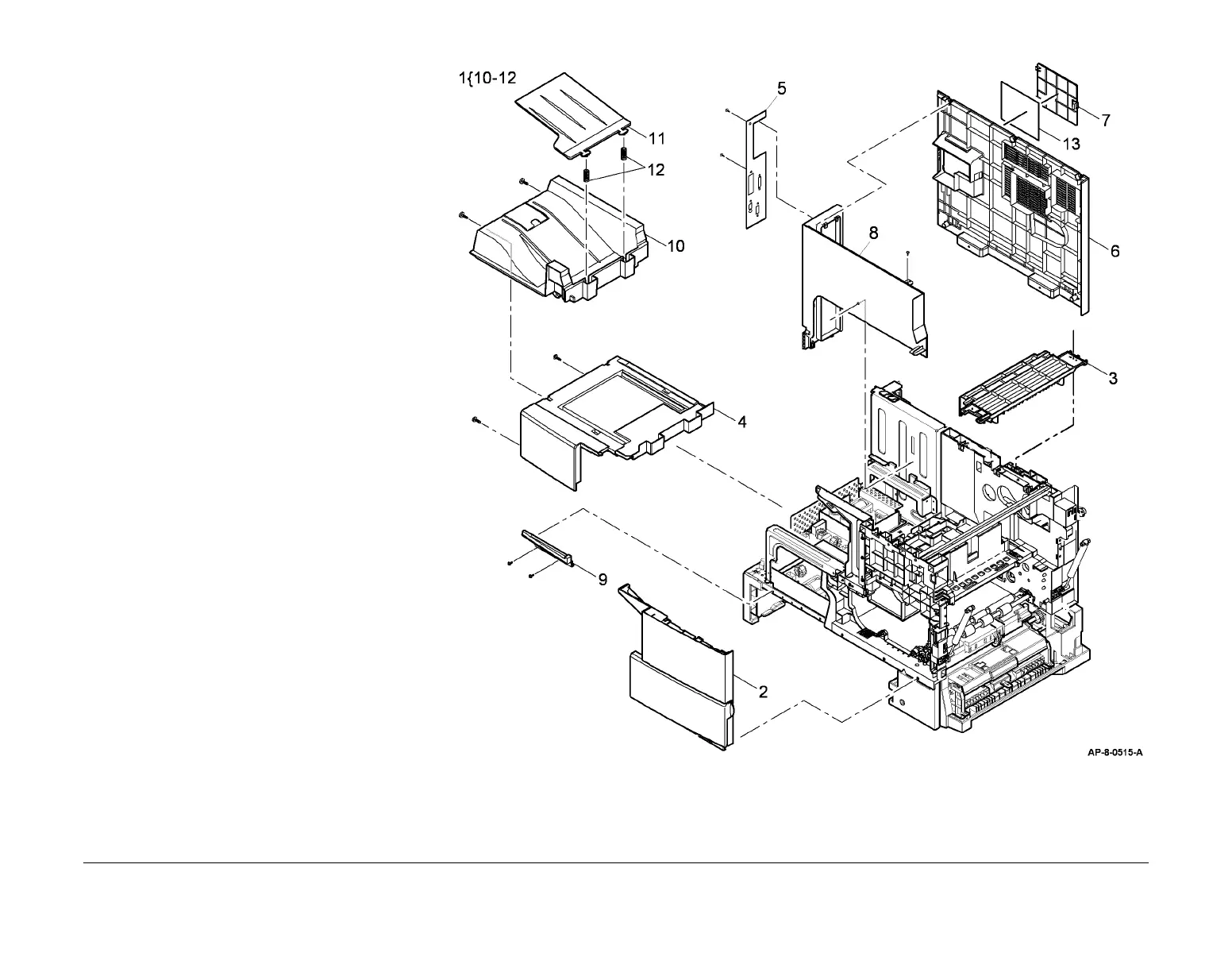

PL 28.10 Covers
Item Part Description
1 002N02564 Exit tray assembly (4250/4260)
– 002N03115 Exit Tray Assembly (4265)
2 002N03114 Front door assembly (4265)
– 002N02565 Front door assembly (4250/4260)
3 002N02566 Exit guide assembly (REP 10.2)
4 002N02567 Paper exit cover
5 002N02890 Infill cover (4250)
– 002N02568 Infill cover (4150)
– 002N02861 Infill cover (4260)
– – Infill cover (4265)
6 002N02862 Rear cover (4250/4260/4265)
– 002N02569 Rear cover (4150)
7 002N02570 Rear access cover
8 – Rear exit cover (Not Spared) (REP
4.2)
9 – Front infill cover (Not Spared)
10 – Tray (P/O PL 28.10 Item 1)
(4250/4260)
11 – Lower tray (P/O PL 28.10 Item 1)
12 009N01593 Spring (P/O PL 28.10 Item 1)
13 053N00297 Filter
NOTE: Refer to PL 12.10 and PL 12.45 for the finisher
covers.
