Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 5.15
Parts List

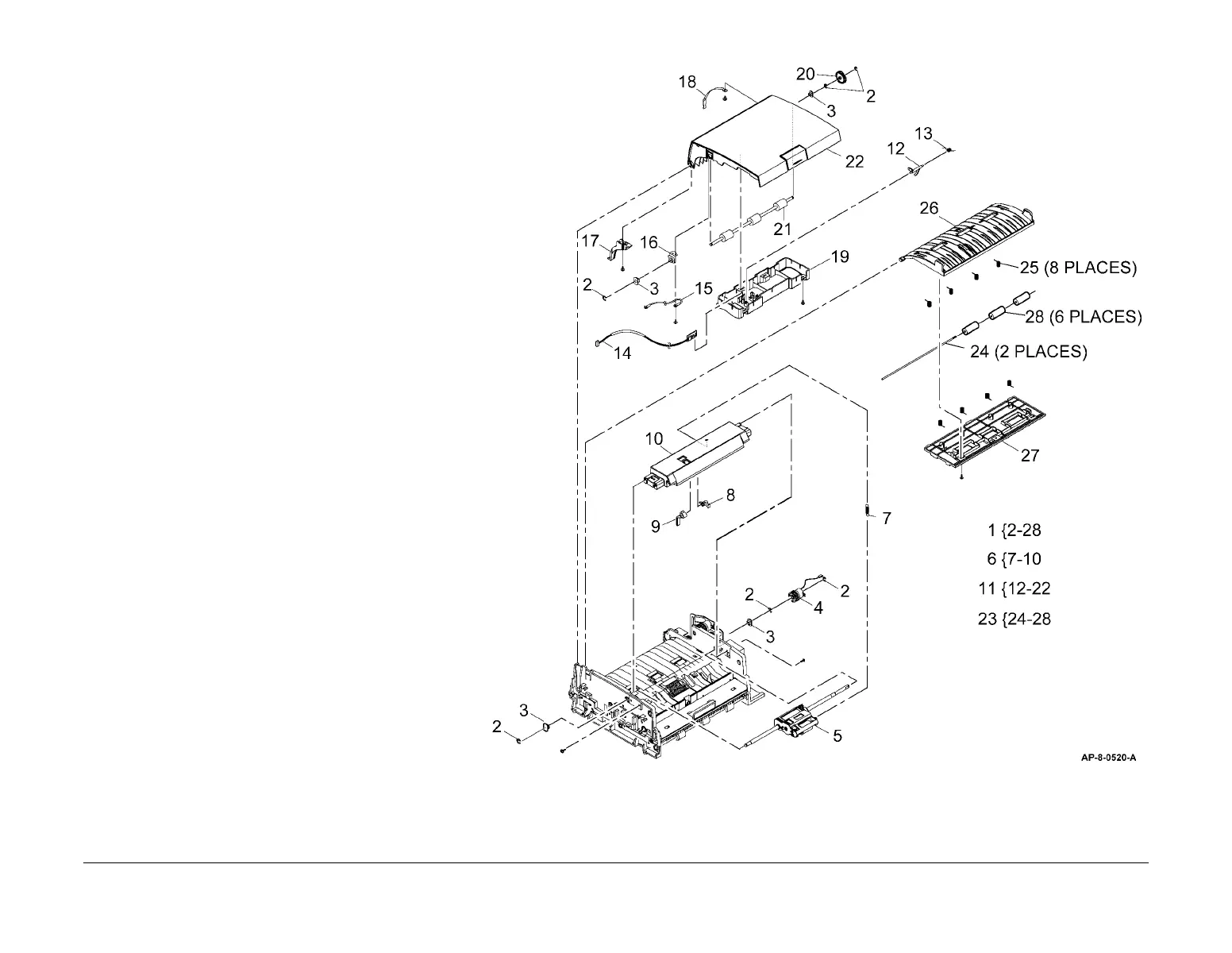

PL 5.15 DADF Assembly (2 of 4)
(4150)
Item Part Description
1 – Transport assembly (P/O PL 5.10
Item 2)
2 – E-clip (Not Spared)
3 – Bearing (P/O PL 5.15 Item 1)
4 – Pick up clutch (CL05-300) (P/O PL
5.10 Item 1)
5 130N01466 Feed roll assembly (See Note)
6 030N00721 Upper feed assembly (REP 5.1)
7 – Spring (P/O PL 5.15 Item 6)
8 – Link arm (P/O PL 5.15 Item 6)
9 – Feed gate (P/O PL 5.15 Item 6)
10 – Upper feed cover (P/O PL 5.15
Item 6)
11 002N02288 Top cover assembly (REP 5.1)
12 – Actuator (P/O PL 5.15 Item 11)
13 – Spring (P/O PL 5.15 Item 11)
14 140N62869 Registration sensor (Q05-130)
15 – Ground harness (P/O PL 5.15 Item
11)
16 – Ground clip (P/O PL 5.15 Item 11)
17 – Harness cover (P/O PL 5.15 Item
11)
18 – Top cover restraining strap (P/O PL
5.15 Item 11)
19 – Sensor housing (P/O PL 5.15 Item
11)
20 007N01523 Registration gear
21 – Registration roll (P/O PL 5.15 Item
11)
22 002N02583 Top cover
23 038N00497 Duplex guide (REP 5.1)
24 – Idler shaft (P/O PL 5.15 Item 23)
25 – Idler springs (P/O PL 5.15 Item 23)
26 – Upper duplex guide (P/O PL 5.15
Item 23)
27 – Lower duplex guide (P/O PL 5.15
Item 23)
28 – Idlers (P/O PL 5.15 Item 23)
NOTE: HFSI. To reset the HFSI count, go to GP 16.
