January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 14.16
Parts List

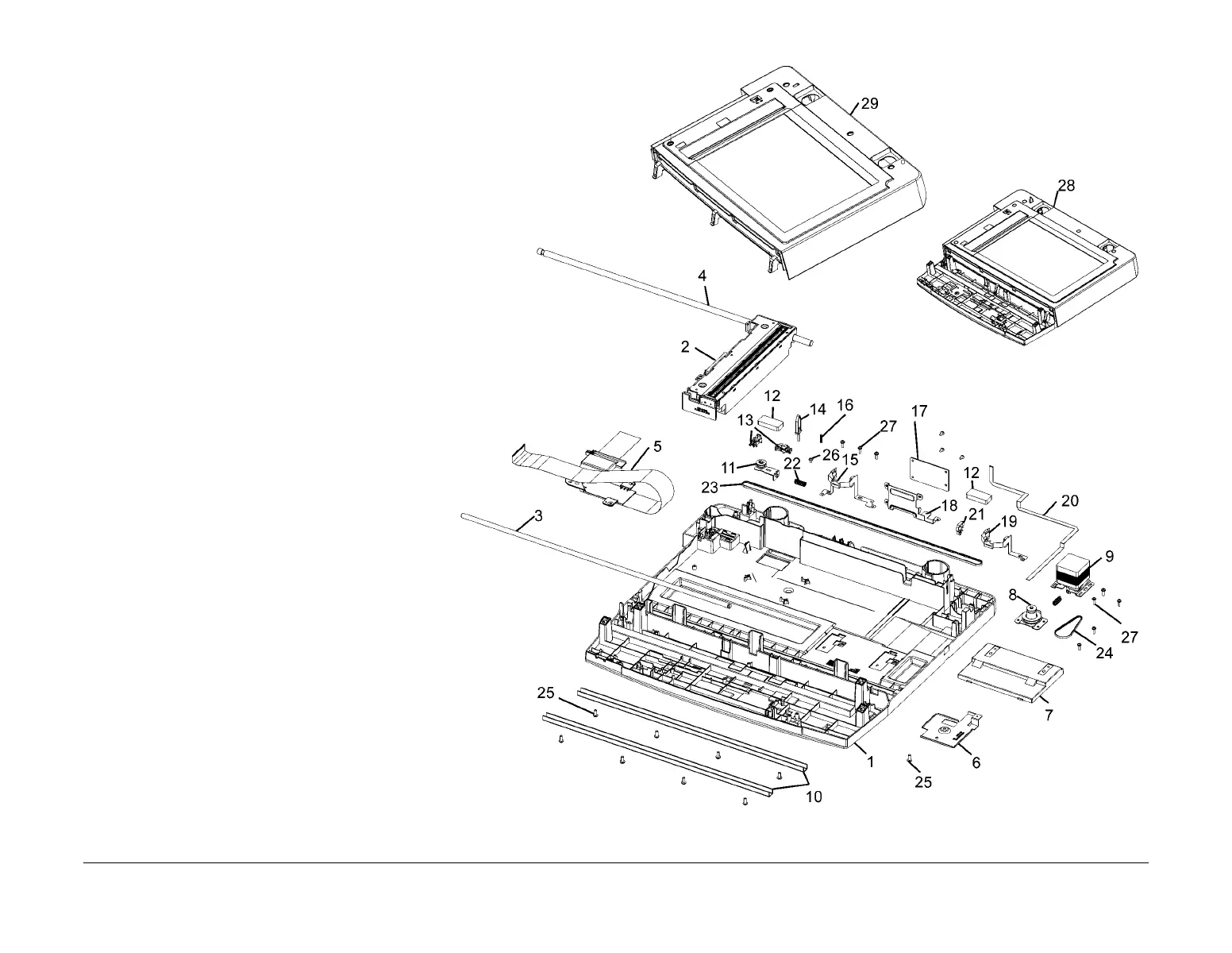

PL 14.16 Scanner Module (4265)
Item Part Description
1 – Lower Scanner Cover
2 062N00295 CCDM (REP 14.4)
3– Rail
4 – CCD Rail
5 -- Ribbon Cable (REP 14.4)
6 – Lower Scanner
7 – Lower APS
8– Pulley (REP 14.6)
9 127N07867 Scanner Motor (REP 14.5)
10 – Base Frame
11 – Pulley Assembly (REP 14.7)
12 – Seal
13 – Sensor
14 – Sensor
15 – Left Hinge
16 – Spring
17 – Scan Join PWBA (REP 14.4)
18 – Board Bracket
19 – Right Hinge
20 – FFC CCD Harness
21 – Saddle
22 – Spring
23 023N01360 Timing Belt (REP 14.7)
24 023N01359 Drive Belt (REP 14.6)
25 – Screw
26 – Screw
27 – Screw
28 090N00180 Scanner assembly
29 090N00181 Scanner Top Cover Assembly
To Next Page
