January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 5.59
Parts List

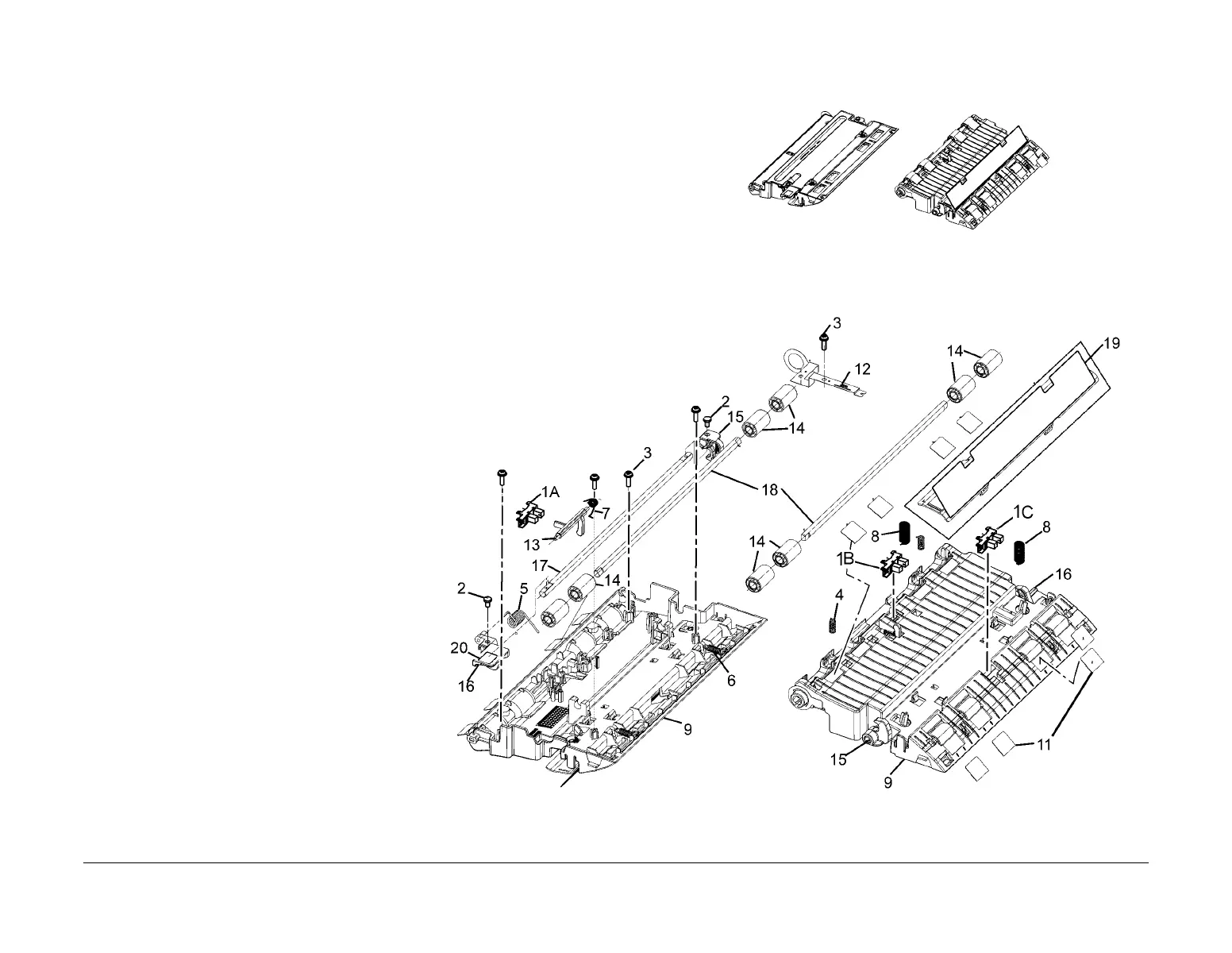

PL 5.59 DADF Assembly (1 of 4)
(4265)
Item Part Description
1 130N01729 1A-DADF Exit Sensor (REP
5.22),1B-DADF Rear Scan Read
Sensor (REP 5.33), 1C-DADF
Front Scan Read Sensor (REP
5.30)
2– Screw
3– Screw
4 – Spring-CS
5 – Spring-TS
6 – Spring-ES
7 – Spring ETC-Torsion
8 – Spring ETC-White Bar
9 – Guide-Exit Lower
11 – Sheet-Guide Regi
12 – Ground-Dual White-Bar
13 – Actuator-Feed
14 – Roller-Idle DADF
15 – Lever-Feed OUT R
16 – Lever-Feed OUT F
17 – Shaft-Lever
18 – Shaft-Feed Idle
19 022N02813 DADF-Dual White Bar
20 – Label-Function
To Next Page
