Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 20.10
Parts List

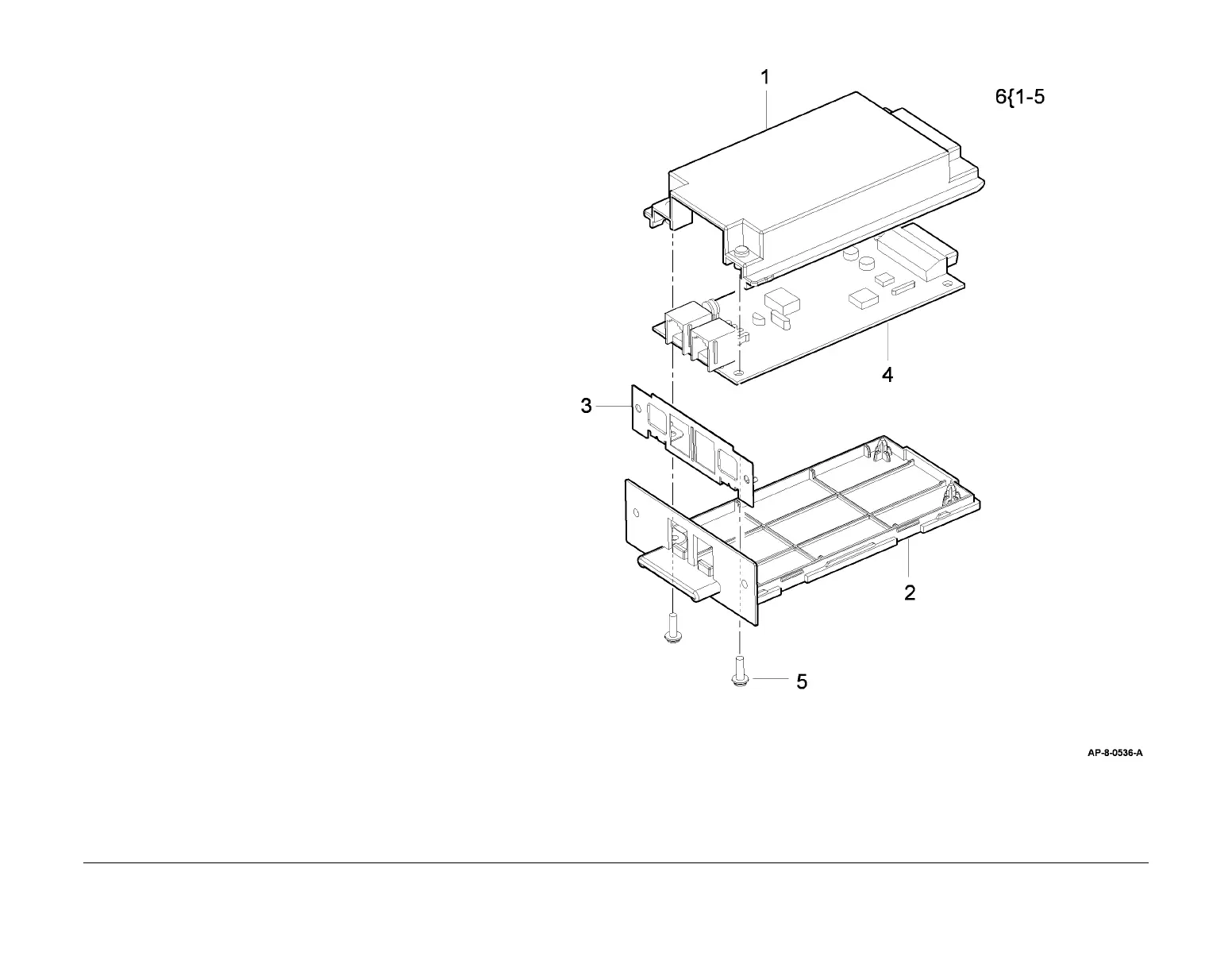

PL 20.10 FAX Assembly
Item Part Description
1 – Upper cover (P/O PL 20.10 Item 6)
2 – Lower cover (P/O PL 20.10 Item 6)
3 – Bracket (P/O PL 20.10 Item 6)
4 140N63740 FAX PWB (4265)
– 140N63357 FAX PWB (parallel) (4250/4260)
– 140N63358 FAX PWB (serial) (4250/4260)
– 140N63142 FAX PWB (parallel) (4150)
– 140N63274 FAX PWB (serial) (4150)
5 – Screw (P/O PL 20.10 Item 6)
6 – FAX module (Not Spared) (See
Note)
NOTE: 1. For FAX kits, see PL 31.10 Item 1. 2. USSG, NASG
and XCL customer order FaX PWB (parallel). EU customer
order FAX PWB (serial).
