Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 12.15
Parts List

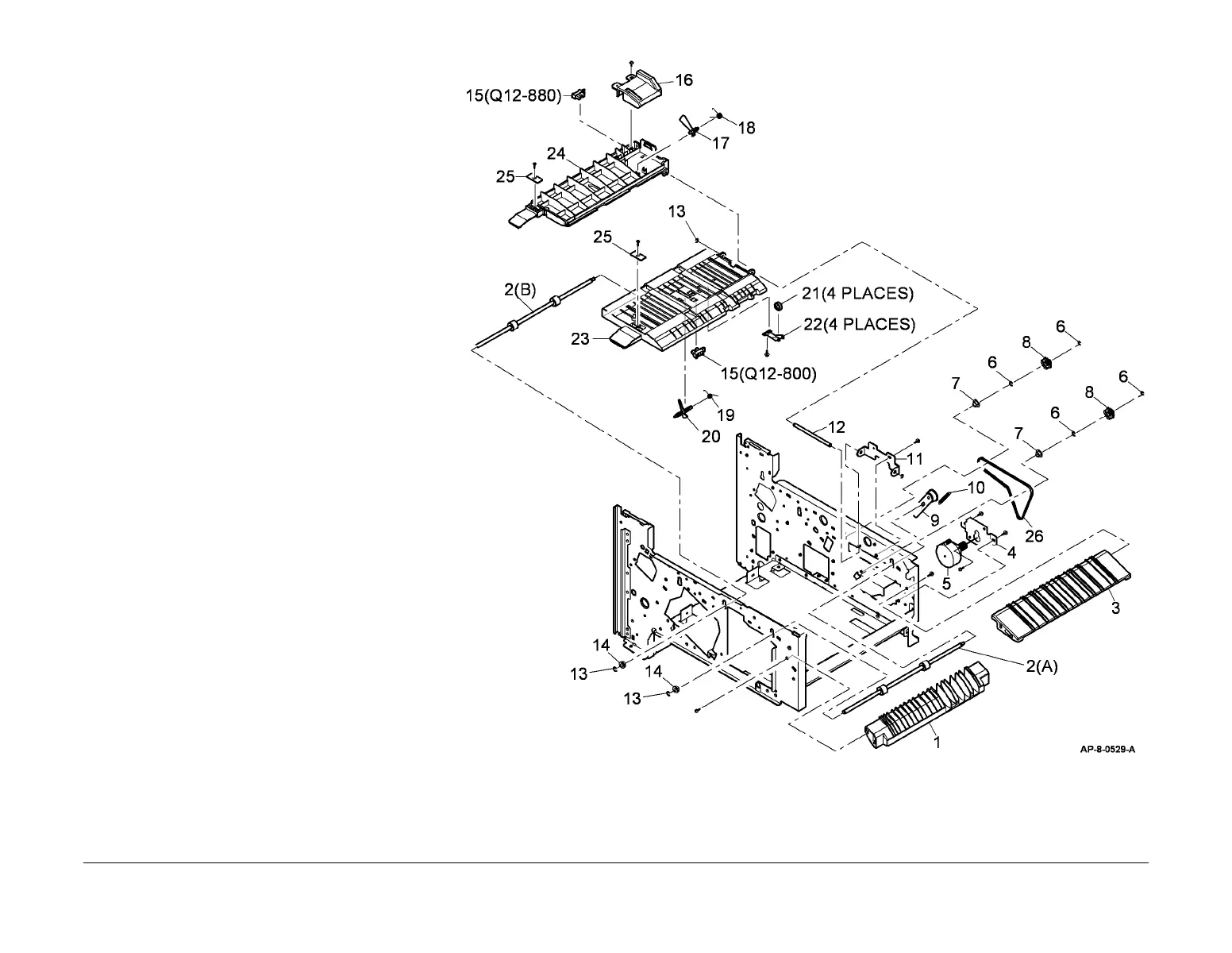

PL 12.15 Duplex and Entry
Components
Item Part Description
1 – Lower entry guide (P/O PL 12.50
Item 1)
2 022N02383 Entry roll (2A), Transport roll (2B)
(P/O PL 12.50 Item 1)
(4250/4260/4265)
3 – Upper entrance guide (P/O PL
12.50 Item 1)
4 – Entry motor bracket (P/O PL 12.50
Item 1)
5 127N07484 Entrance motor (MOT12-100)
6 – E-Clip (Not Spared)
7 – Bearing (P/O PL 12.50 Item 1)
8 020N00821 Pulley
9 – Belt tensioner (P/O PL 12.50 Item
1)
10 – Spring (P/O PL 12.50 Item 1)
11 – Hinge bracket (P/O PL 12.50 Item
1)
12 – Hinge shaft (P/O PL 12.50 Item 1)
13 – E-Clip (Not Spared)
14 – Bearing (P/O PL 12.50 Item 1)
15 130N01274 Duplex paper sensor (Q12-880),
Finisher entrance sensor
(Q12-800)
16 – Actuator cover (P/O PL 12.50 Item
1)
17 – Duplex actuator (P/O PL 12.50 Item
1)
18 – Spring (Duplex) (P/O PL 12.50
Item 1)
19 – Spring (Entry) (P/O PL 12.50 Item
1)
20 – Entry actuator (P/O PL 12.50 Item
1)
21 – Idler (P/O PL 12.50 Item 1)
22 – Leaf spring (P/O PL 12.50 Item 1)
23 – Document entry guide (P/O PL
12.50 Item 1)
24 – Duplex guide (P/O PL 12.50 Item 1)
25 – Magnet catch plate (P/O PL 12.50
Item 1)
26 023N01155 Drive belt
