January 2016
WorkCentre 4150/4250/4260/4265WorkCentre 4150/4250/4260WorkCentre
PL 7.40
Parts List

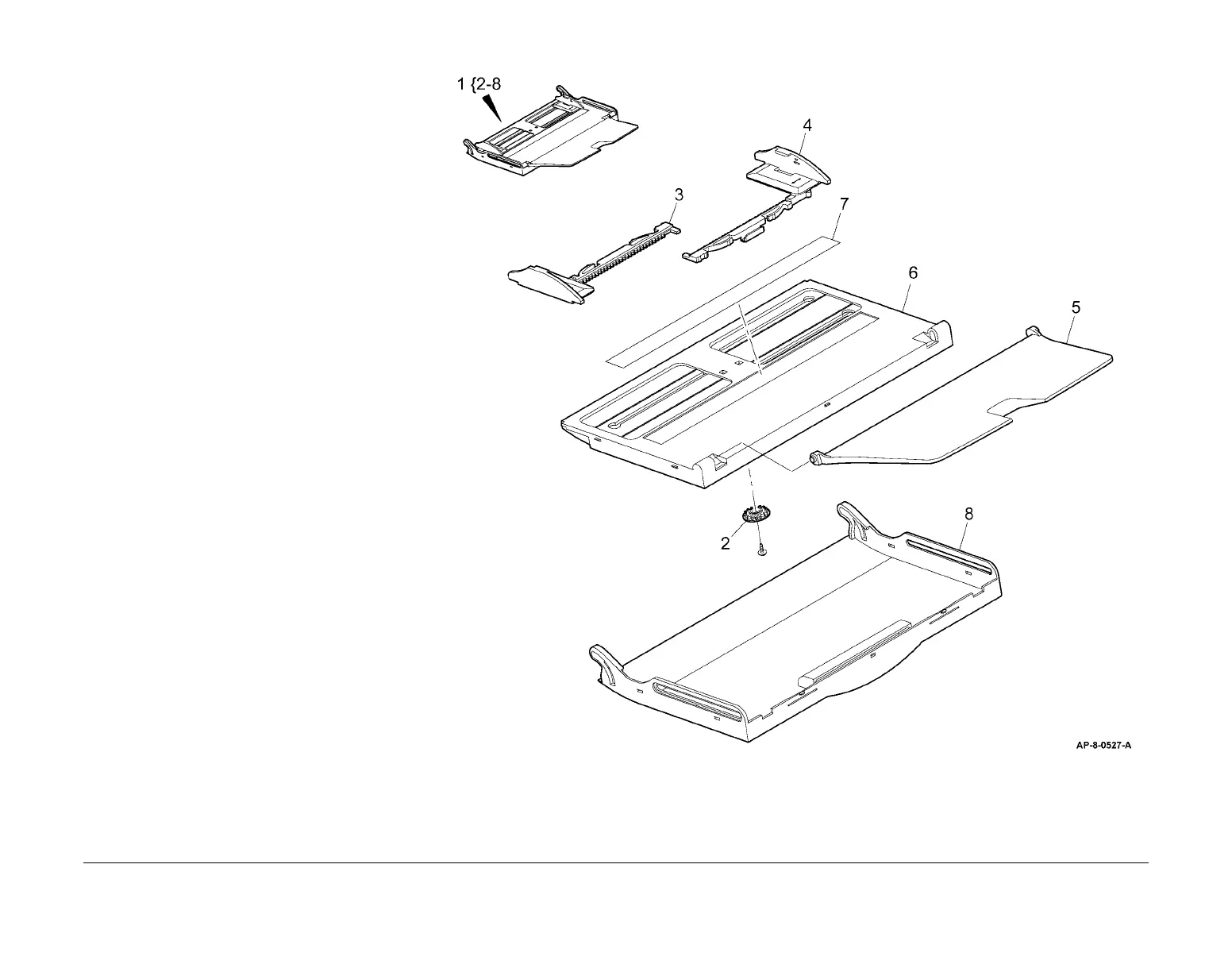

PL 7.40 Bypass Tray
Item Part Description
1 050N00493 Bypass tray assembly
2 007N01210 Pinion gear
3 – Side guide left (P/O PL 7.40 Item 1)
4 – Side guide right (P/O PL 7.40 Item
1)
5 050N00495 Exit tray
6 – Top cover (P/O PL 7.40 Item 1)
7 – Bypass label (P/O PL 7.40 Item 1)
8 – Lower cover (P/O PL 7.40 Item 1)
