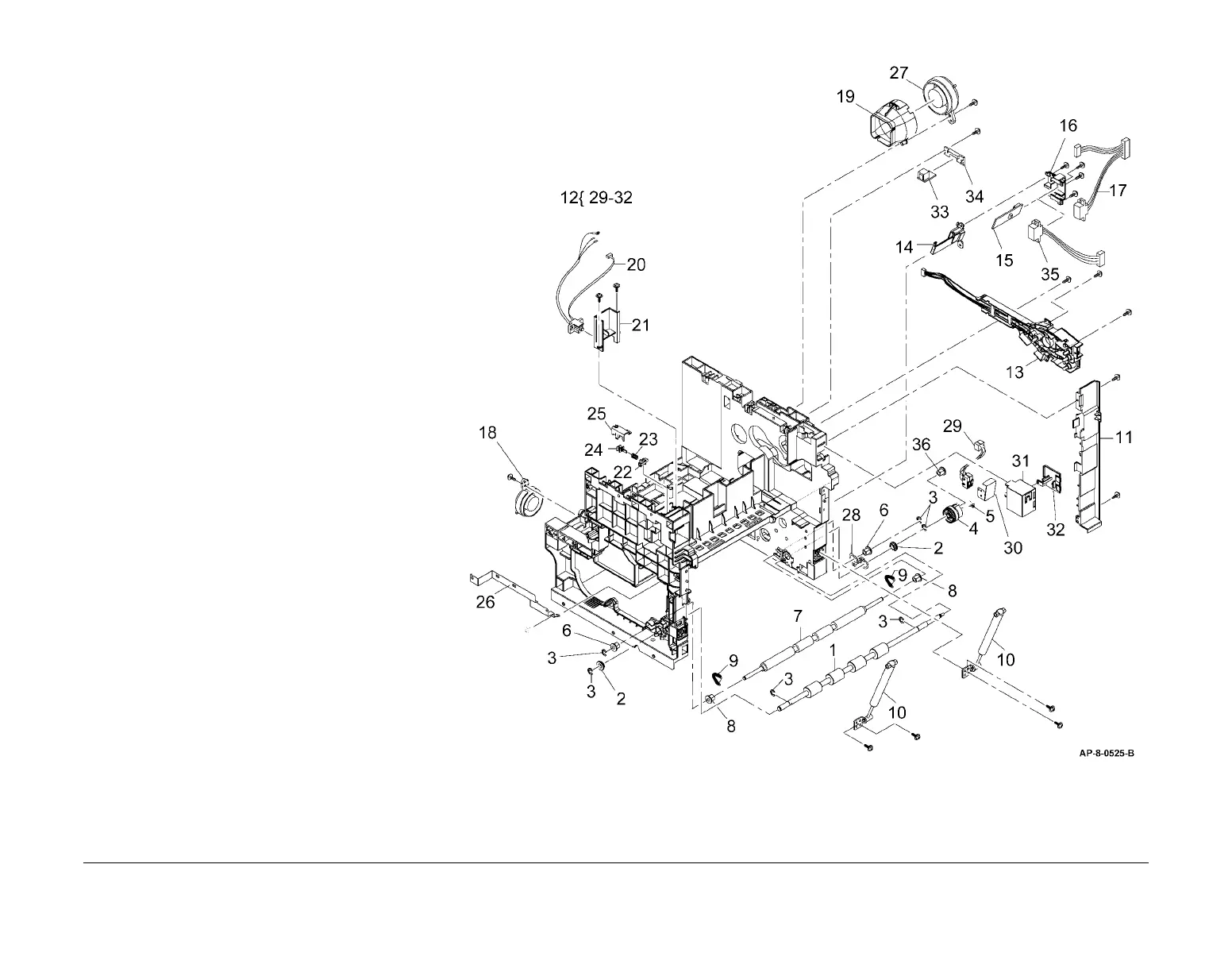

PL 4.15 Main Frame Assembly
Item Part Description
1 – Registration roll (4265) (REP 8.2)
– 022N02229 Registration roll (REP 8.2)
2 016N00293 Bearing (REP 8.2)
3 – E-Clip (Not Spared)
4 005N01139 Registration clutch (CL08-850)
(4250/4260/& 4265)
5 – KL-Clip (Not Spared) (4150)
6 016N00294 Bearing (REP 8.2)
7 022N02764 Registration idler roll (4265) (REP
8.2)
– 022N02271 Registration idler roll (4250/4260)
(REP 8.2)
8 – Bearing (Not Spared)
9 – Tension spring (Not Spared)
10 004N00245 Damper
11 – Infill panel (Not Spared)
12 002N02622 Side cover interlock switch assembly
(S01-100)
13 115N00861 Terminal assembly (REP 9.3)
14 – Housing CRUM PWB (Not Spared)
(4150)
15 113N01303 CRUM PWB (4150) (REP 9.2)
16 – Cover CRUM PWB (Not Spared)
17 152N11706 Xerographic module connector (4150)
(REP 9.2)
– 152N11764 Xerographic module connector
(4250/4260/4265) (REP 9.2)
18 127N07487 SMPS fan (09-500) (4150)
– 127N07589 SMPS fan (09-500)
(4250/4260/4265)
19 – Duct (Not Spared)
20 152N11732 Fuser connector (4150 REP 10.6)
(4250/4260 REP 10.8), (4265 REP
10.9)
21 – Retainer (Not Spared)
22 130N01274 Exit cover present sensor
(4150/4260)
23 – Spring (Not Spared) (4150/4260)
24 – Actuator (Not Spared) (4150/4260)
25 – Sensor cover (Not Spared)
(4150/4260)
26 115N00874 Xerographic module, ground connec-
tor (4150/4250/4260)
27 127N07485 Fuser fan (10-500) (4150)
– 127N07590 Fuser fan (10-500) (4250/4260)
28 – Ground clip (Not Spared)
29 002N02571 Side cover interlock switch (S01-100)
30 – Side cover interlock switch actuator
(P/O PL 4.15 Item 12)
31 – Side cover interlock switch housing
(P/O PL 4.15 Item 12)
32 – Side cover interlock switch panel (P/O
PL 4.15 Item 12)
33 – Toner cartridge CRUM connector (Not
Spared) (4250/4260/4265) (REP 9.5)
34 – CRUM connector cover (Not Spared)
(4250/4260)
35 – Xerographic module connector
(4250/4260 REP 9.4), (4265 REP
9.6)
36 – Bearing (Not Spared) (4250/4260)
NOTE: The Fuser Connector for the 4250/4260 has three wires in
connector, and is not spared.
