Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 10.28
Parts List

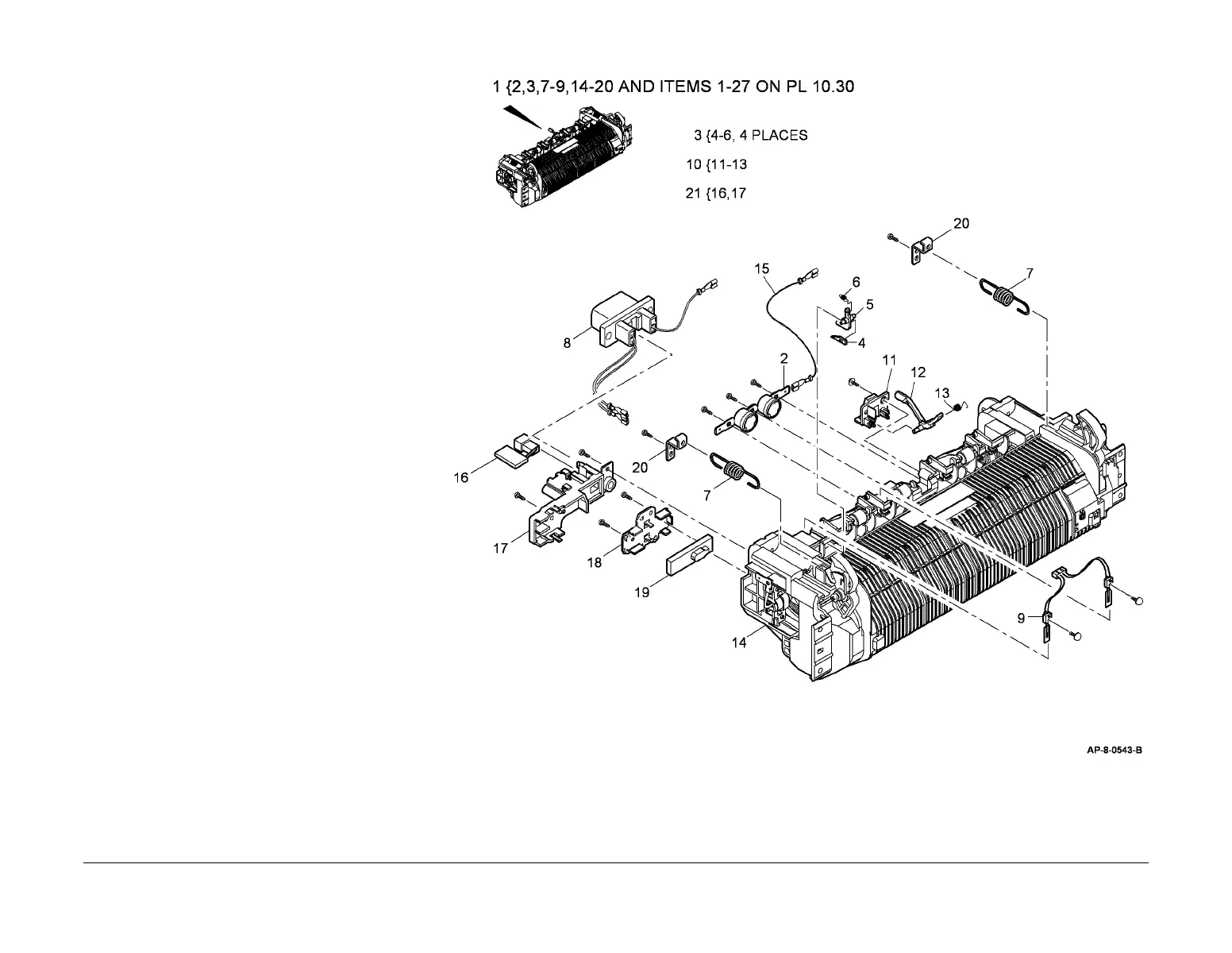

PL 10.28 Fuser (1 of 2)
(4250/4260/4265)
Item Part Description
1 126N00427 Fuser assembly (220V) (4265)
– 002N02805 Fuser assembly (110V)
(NASG/XCL) (4250/4260) (See
Note 1)
– 002N02806 Fuser assembly (220V) (XE)
(4250/4260) (See Note 1)
– 126N00426 Fuser assembly (110V) (4265)
2 130N01463 Thermostat assembly
3 031N00217 Stripper finger assembly
4 – Stripper finger (P/O PL 10.28 Item
3)
5 – Finger holder (P/O PL 10.28 Item 3)
6 – Spring (P/O PL 10.28 Item 3)
7 009N01642 Spring (REP 10.7)
8 152N11766 Connector
9 130N01462 Thermistor assembly
10 120N00534 Fuser exit sensor assembly
11 – Actuator cradle (P/O PL 10.28 Item
10)
12 – Exit sensor actuator (P/O PL 10.28
Item 10)
13 – Spring (P/O PL 10.28 Item 10)
14 – Fusing unit (P/O PL 10.28 Item 1)
15 – AC Fuser harness (Not Spared)
16 140N63354 CRUM
17 – Terminal cover (P/O PL 10.28 Item
1)
18 – Thermistor cover (P/O PL 10.28
Item 1)
19 130N01561 NC Thermistor
20 – Spring bracket (P/O PL 10.28 Item
1)
21 – Fuser CRUM assembly (P/O PL
10.28 Item 1)
NOTE: 1. HFSI. To reset the HFSI count, go to GP 16 .
NOTE: 2. The fuser exit sensor is located on PL 10.15 Item
2.
