Xerox WorkCentre 4150 Service Manual

January 2016
4-93
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 5.30
Repairs and Adjustments
REP 5.30 DADF Front Scan Read Sensor (4265)
Parts List on PL 5.59
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Power off the machine. Disconnect the power cord.
2. Remove the DADF from the machine (REP 5.3) and place it upside-down on a clean,
level surface.

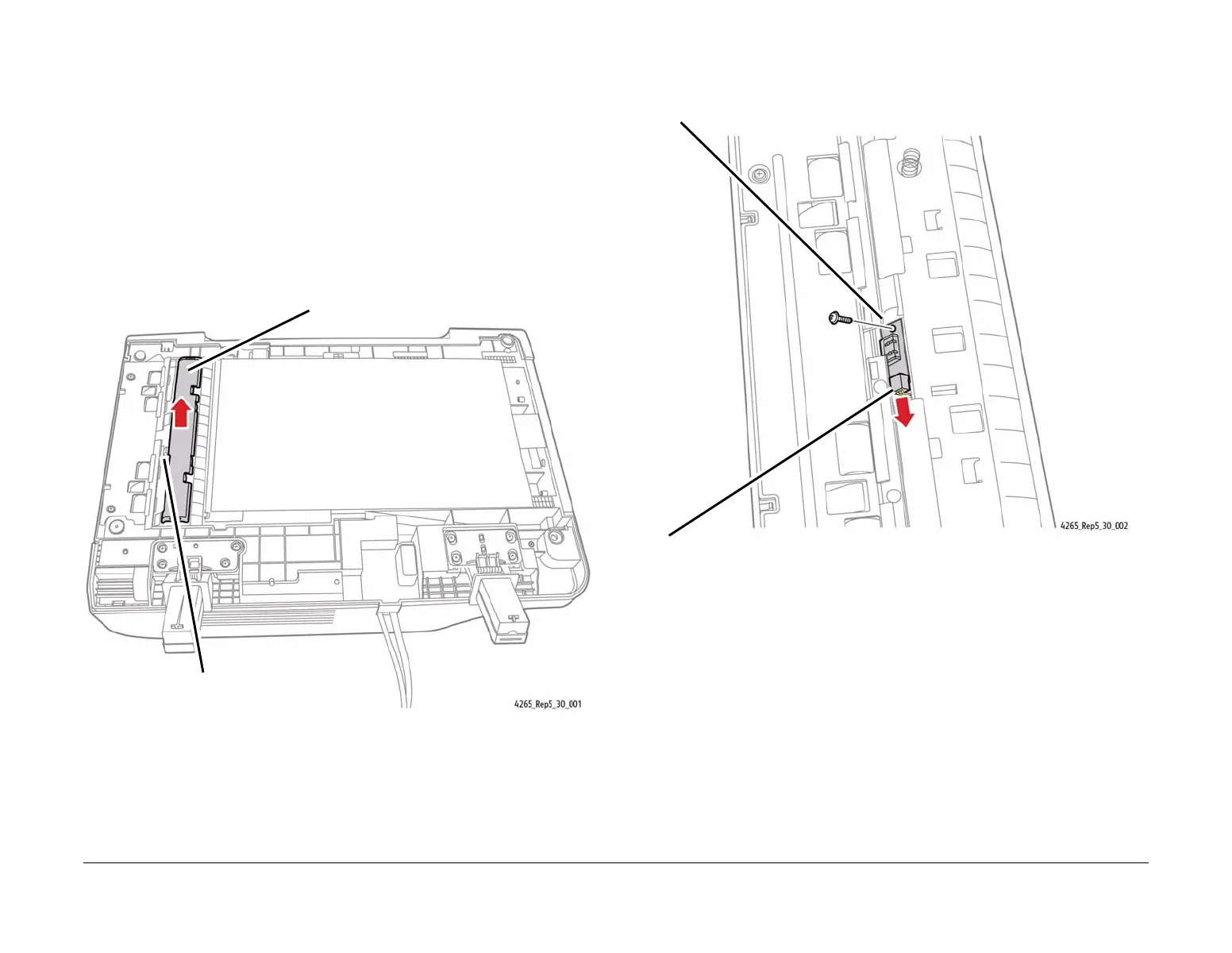

3. Remove the White Bar from the underside of the DADF (Figure 1).
Figure 1 Removing the White Bar
4. Remove the Front Scan Read Sensor (Figure 2).
Figure 2 Removing the Scan Read Sensor
Replacement
1. Reinstallation is the reverse of the Removal procedure.
1
Lift the White Bar off of the DADF.
Front Scan Read Sensor
1
Remove the mounting screw.
2
Disconnect the connector and remove the
Front Scan Read Sensor.
