REP 7.8 Exit Tray Assembly (4265)
Parts List on PL 28.10
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Power off the machine. Disconnect the power cord.
2. Remove the Exit Tray Assembly (Figure 1).

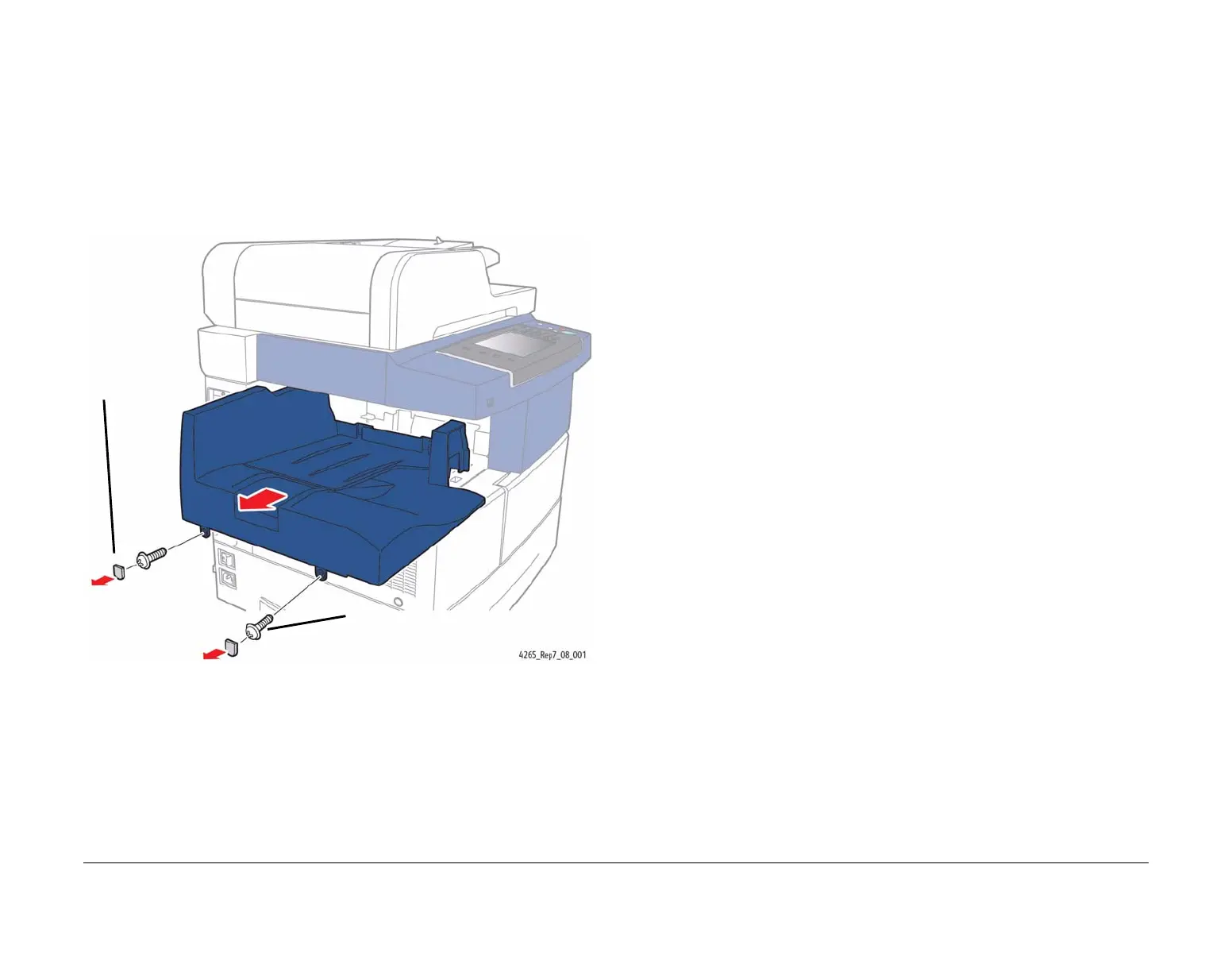

Figure 1 Removing the Exit Tray Assembly
Replacement
1. Reinstallation is the reverse of the Removal procedure.
1
Remove the two
plastic covers.
2
Remove the two mounting
screws.
3
Remove Exit Tray
Assembly.
