Xerox WorkCentre 4150 Service Manual

January 2016
WorkCentre 4150/4250/4260WorkCentre 4150/4250/4260/4265WorkCentre
PL 5.32
Parts List

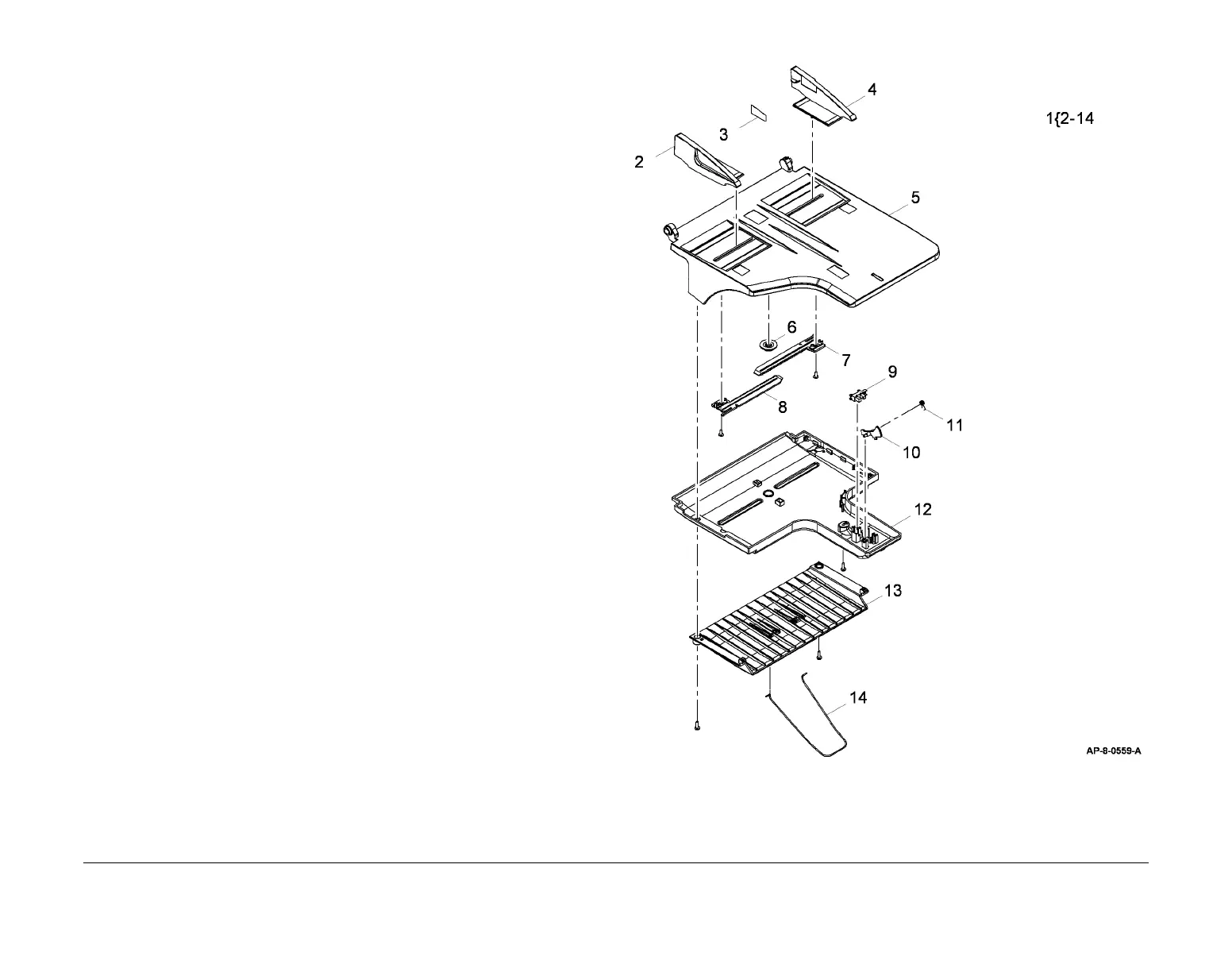

PL 5.32 DADF Assembly (2 of 7)
(4250/4260)
Item Part Description
1 050N00541 Input tray assembly (Complete)
(REP 5.6)
2 – Document guide front (P/O PL 5.32
Item 1)
3 091N80242 Label
4 – Document guide rear (P/O PL 5.32
Item 1)
5 – Top cover (P/O PL 5.32 Item 1)
6 007N01525 Pinion gear
7 – Rear rack gear (P/O PL 5.32 Item
1)
8 – Front rack gear (P/O PL 5.32 Item
1)
9 130N01274 Paper length sensor (REP 5.6)
10 – Actuator (P/O PL 5.32 Item 1)
11 – Actuator spring (P/O PL 5.32 Item
1)
12 – Lower cover (P/O PL 5.32 Item 1)
13 – Stacker guide (P/O PL 5.32 Item 1)
14 – Stacker wire (P/O PL 5.32 Item 1)
