REP 5.25
Repairs and Adjustments
REP 5.25 Retard Roller Cover and Pickup Guide Pad (4265)
Parts List on PL 5.70
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Power off the machine. Disconnect the power cord.
2. Remove the Pickup Guide Assembly (REP 5.24).
3. Detach the Retard Roller Cover from the Pickup Guide Assembly (Figure 1).

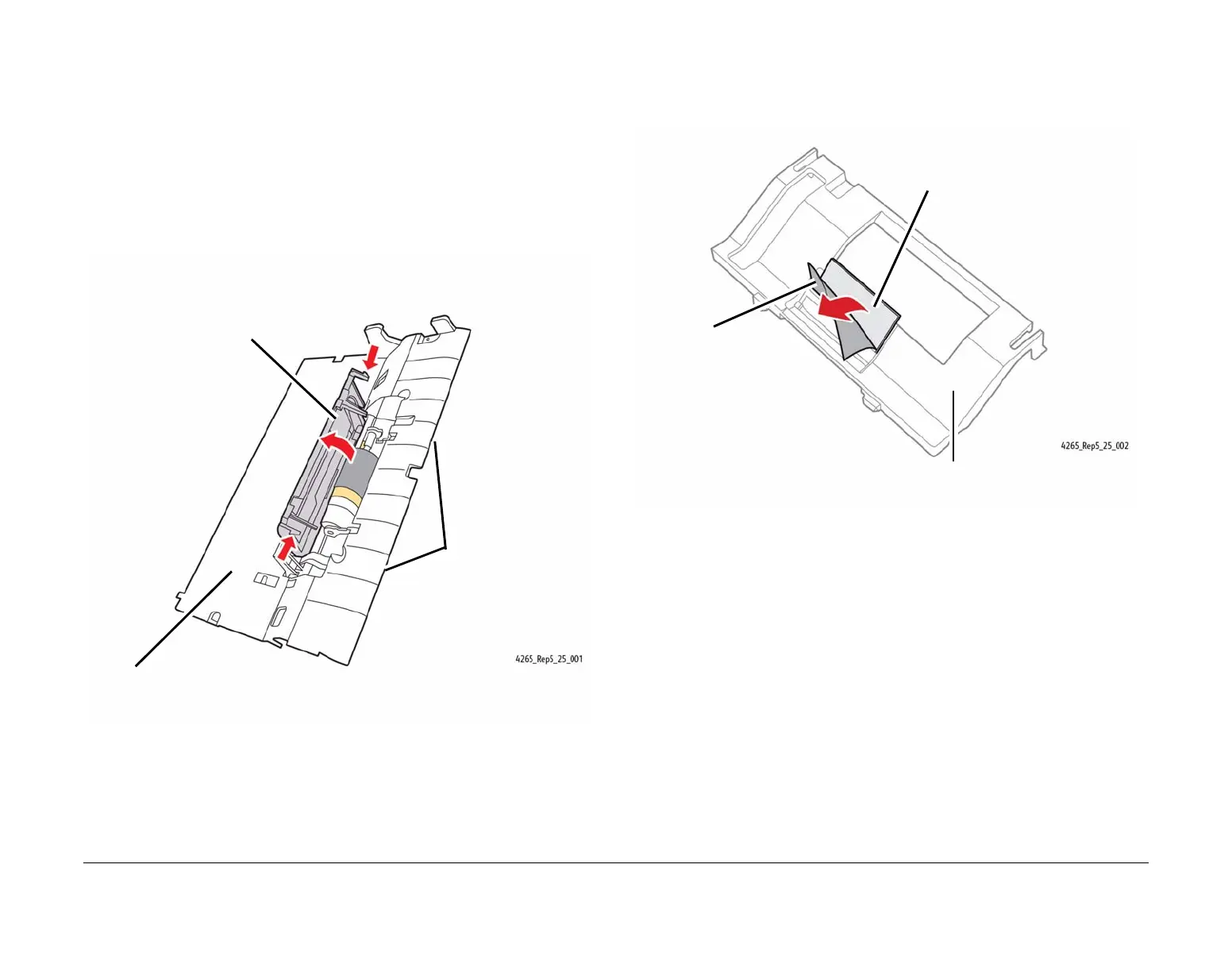

Figure 1 Detaching the Retard Roller Cover
Replacement
1. Inspect the condition of the Pickup Guide Pad. If the pad show signs of excessive wear,
replace the Pickup Guide Pad (Figure 2).
Figure 2 Inspecting/Replacing the Pickup Guide Pad
2. Reinstallation is the reverse of the Removal procedure.
1
Compress the two plas-
tic tabs that protrude
from the underside of
the cover.
2
Open and detach the
Retard Roller Cover.
Pickup Guide Assembly
Retard Roller Cover
Plastic Tab
Pickup Guide Pad
