Xerox WorkCentre 4150 Service Manual

January 2016
4-165
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 12.1
Repairs and Adjustments
REP 12.1 Finisher Removal
Parts List on PL 12.10, PL 12.15, PL 12.20, PL 12.25, PL 12.30, PL
12.35, PL 12.40 and PL 12.45
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Open the Finisher front door, PL 12.10 Item 1.
2. Disconnect the Finisher interface harness, PL 12.10 Item 18 from the machine.
3. Remove the Finisher Stacker tray, PL 12.45 Item 1.
4. Remove the Finisher (Figure 1).

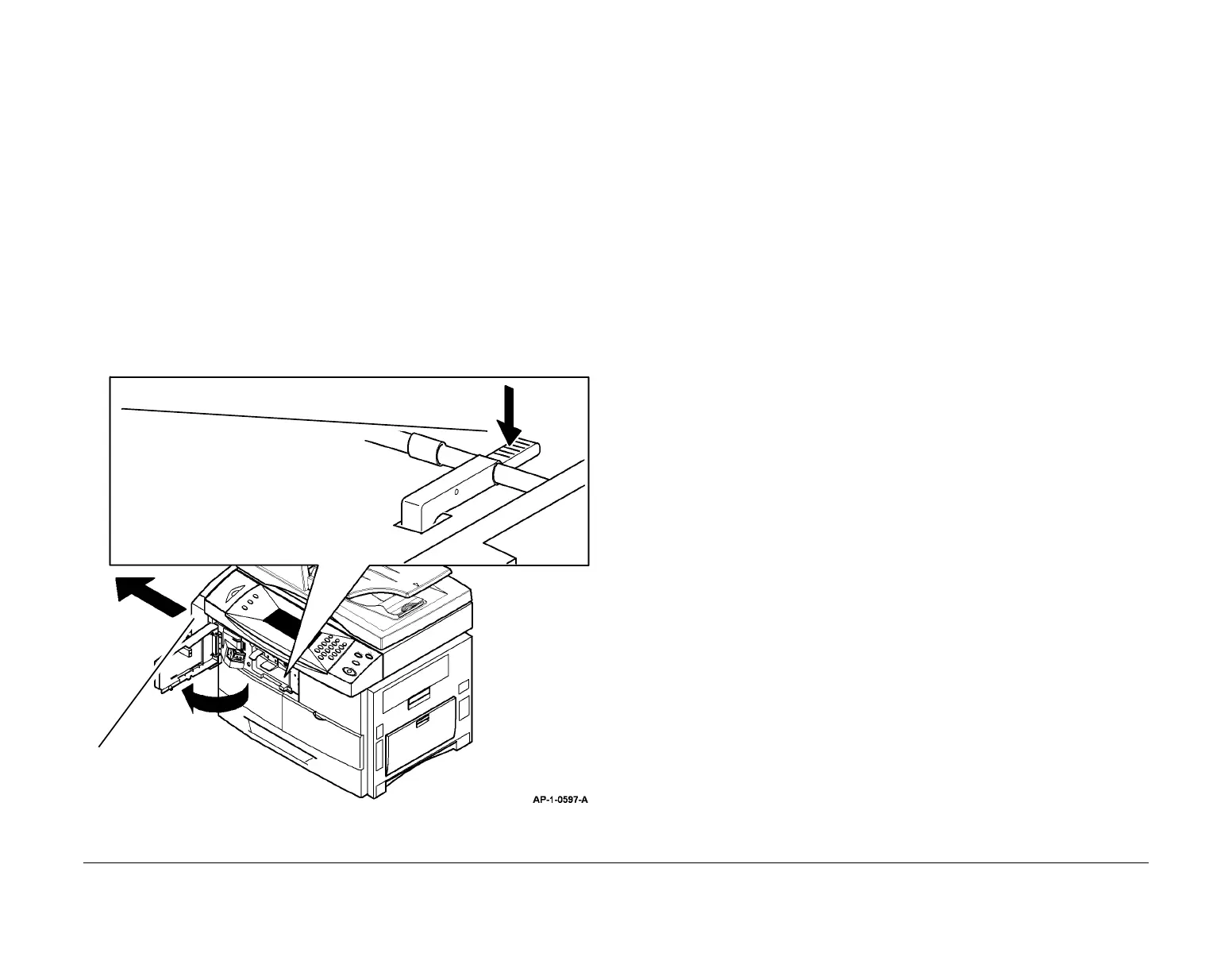

Figure 1 Removing the Finisher
Replacement
Replacement is the reverse of the removal procedure.
1
Release the latch.
2
Pull out the Finisher until it latches in the
second stop.
3
Release the latch again.
4
Remove the Finisher.
